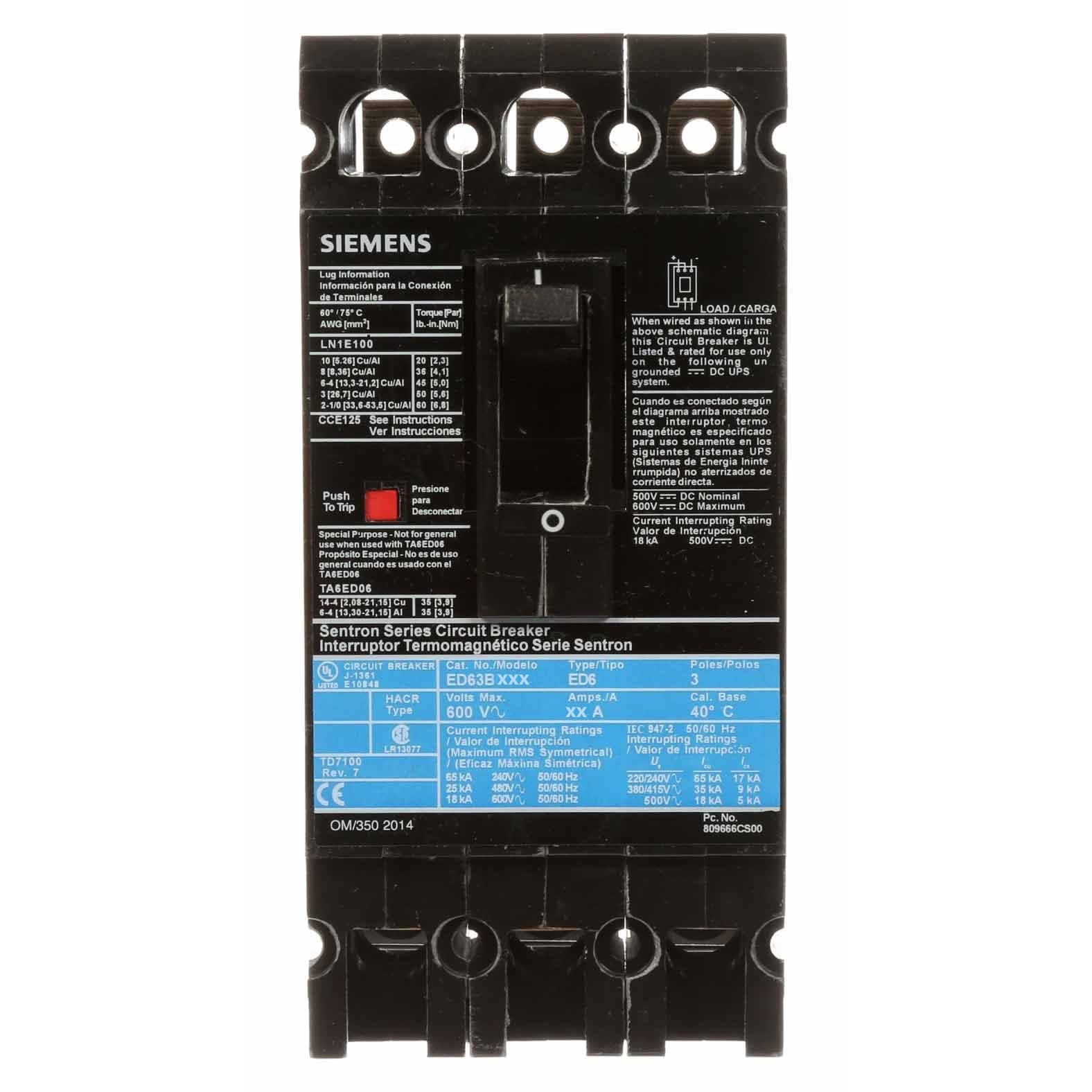

Siemens ED63B090 - Molded Case Circuit Breaker 90A 600V 3P
Siemens ED63B090 - Molded Case Circuit Breaker 90A 600V 3P

Siemens ED63B090 - Molded Case Circuit Breaker 90A 600V 3P

Siemens
Price
Save $3,497.67
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens ED63B090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact ED frame with bolt-on connections and dimensions of 6.693" x 5.906" x 3.101" (170mm x 150mm x 78.8mm). This thermal-magnetic breaker, part of the Sentron Series, offers long-time and instantaneous trip functions, is UL Listed and IEC Certified, and is rated for an interrupting capacity of 25kA at 480V AC. Its robust construction supports a wide operating temperature range from -25°C to 70°C (-13°F to 158°F), making it suitable for panelboards, switchboards, and industrial control panels where dependable circuit protection is critical.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Frame Size: ED Frame
  • Poles: 3
  • Connection: Bolt-On
  • Wire Size: AWG 10 to 1/0, Copper or Aluminum
  • AIC Rating: 25kA @ 480V AC
  • Phase: 3-Phase
  • Dimensions: 6.693" x 5.906" x 3.101" (170mm x 150mm x 78.8mm)
  • Weight: 3.6 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Functions: Long Time and Instantaneous Trip
  • Certification: UL Listed, IEC Certified
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209770
  • GTIN: 00783643209770
