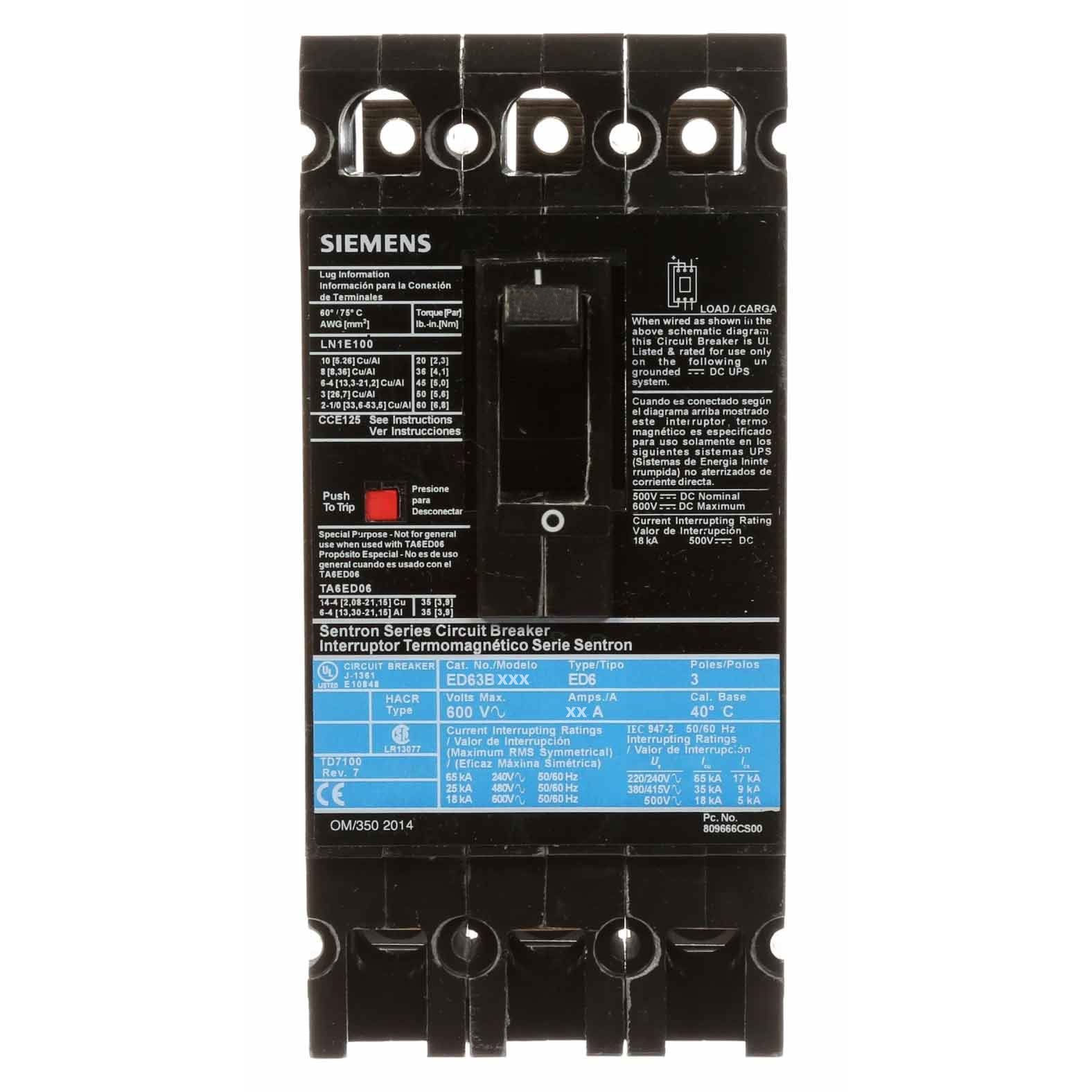

Siemens ED63B080 - Molded Case Circuit Breaker 80A 600V 3P
Siemens ED63B080 - Molded Case Circuit Breaker 80A 600V 3P

Siemens ED63B080 - Molded Case Circuit Breaker 80A 600V 3P

Siemens
Price
Save $3,235.92
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Siemens ED63B080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous functions, rated for 80A continuous current and 600V AC maximum voltage with an interrupting capacity of 25kA at 480V AC. The compact, bolt-on unit measures 7.244" x 5.512" x 3.937" (184 x 140 x 100 mm) and weighs 3.657 lb, constructed within the standardized ED frame for consistent panel integration. It is UL Listed and IEC Certified for global compliance, operating reliably across a temperature range of -25°C to 70°C (-13°F to 158°F). This breaker is typically applied in panelboards, switchboards, and industrial control panels, accommodating copper or aluminum conductors from AWG 10 to 1/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 7.244 x 5.512 x 3.937 inch (184 x 140 x 100 mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Thermal-Magnetic
  • AIC rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Wire Size: AWG 10 to AWG 1/0, Cu/Al
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3.657 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209763
  • GTIN: 00783643209763
