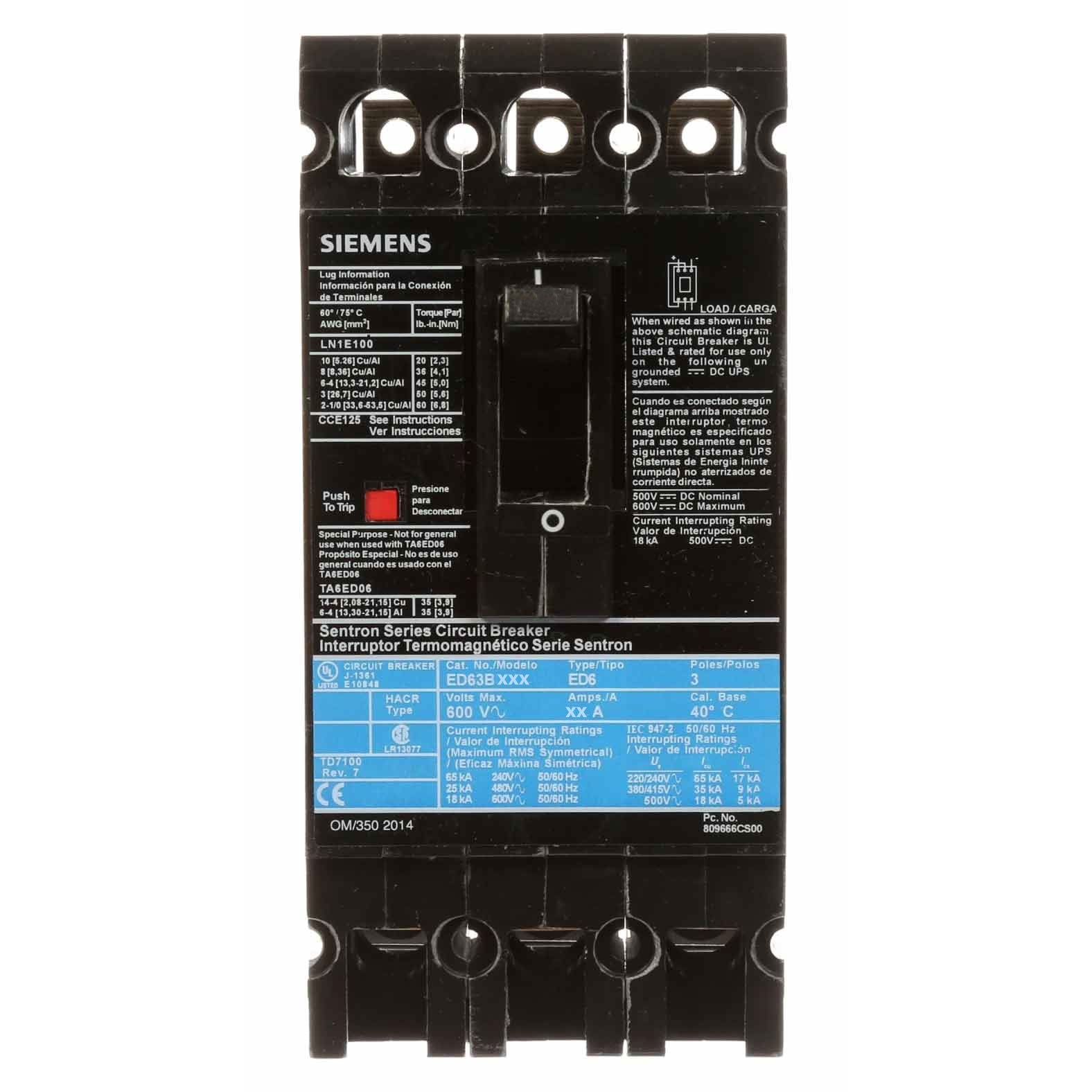

Siemens ED63B050 - Molded Case Circuit Breaker 50A 600V 3P
Siemens ED63B050 - Molded Case Circuit Breaker 50A 600V 3P

Siemens ED63B050 - Molded Case Circuit Breaker 50A 600V 3P

Siemens
Price
Save $2,647.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED63B050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V AC voltage rating, housed within a compact ED frame with dimensions of 6.693" x 5.906" x 3.996" and a weight of 3.719 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is UL Listed and IEC Certified, and operates effectively across a temperature range of -25°C to 70°C. Its 25kA interrupting rating at 480V AC and bolt-on connection for AWG 10 to 1/0 copper or aluminum conductors make it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Frame Size: ED Frame
  • Poles: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Wire Size: AWG 10 to AWG 1/0 (Cu/Al)
  • Trip Functions: Long Time and Instantaneous
  • Phase: 3
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.693" H x 5.906" W x 3.996" D
  • Weight: 3.719 lb
  • Standards: UL Listed, IEC Certified
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209732
  • GTIN: 00783643209732
