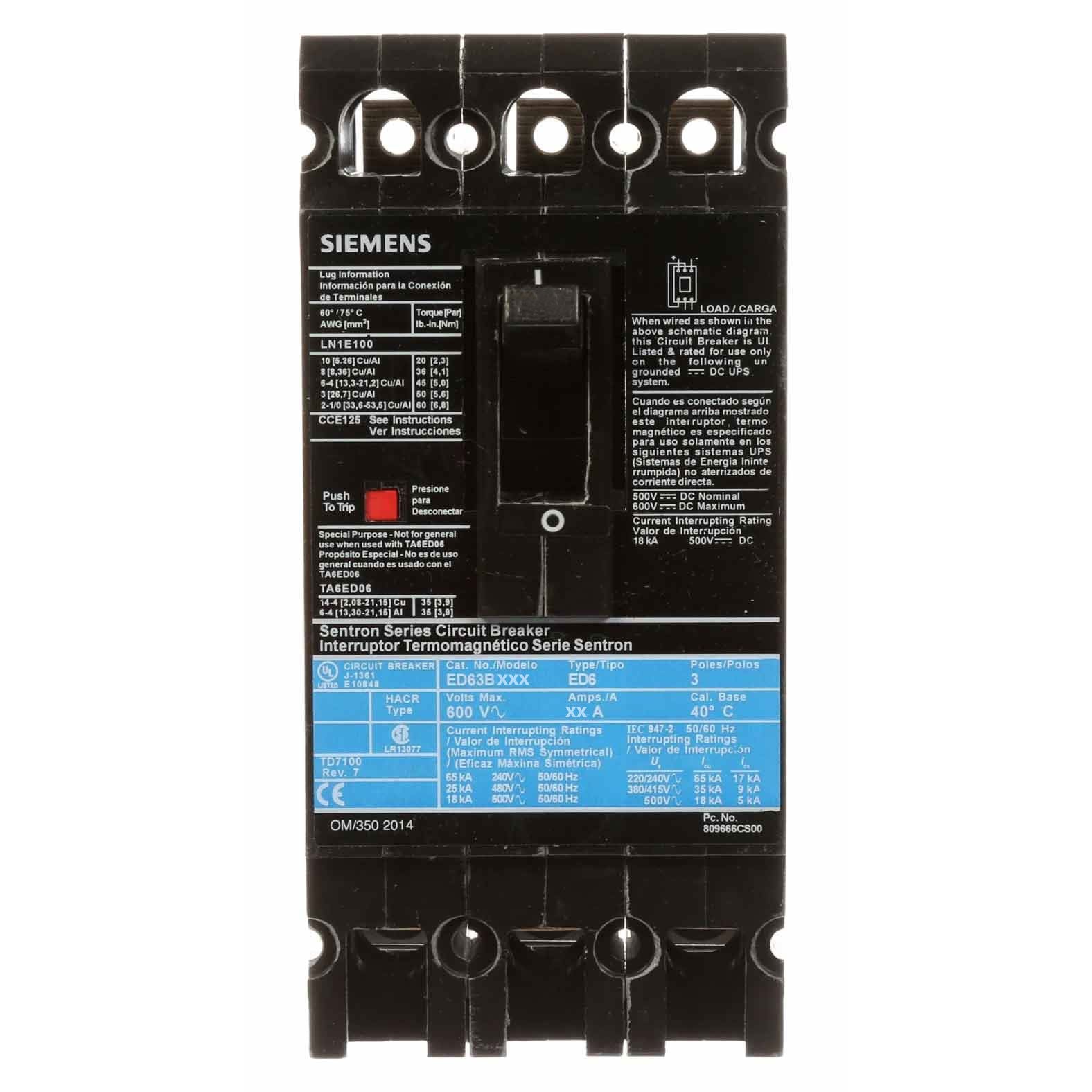

Siemens ED63B040 - Molded Case Circuit Breaker 40A 600V 3P
Siemens ED63B040 - Molded Case Circuit Breaker 40A 600V 3P

Siemens ED63B040 - Molded Case Circuit Breaker 40A 600V 3P

Siemens
Price
Save $2,526.89
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Siemens ED63B040 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact ED frame with dimensions of 6.693" x 5.906" x 3.991" and a weight of 3.668 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is IEC certified and UL listed, and operates effectively within a temperature range of -25°C to 70°C. Its 25kA interrupting rating at 480V AC and bolt-on connection for AWG 10 to 1/0 copper or aluminum conductors make it suitable for industrial panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 6.693" H x 5.906" W x 3.991" D (170mm x 150mm x 101.4mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 40A
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 10 to AWG 1/0, Copper or Aluminum
  • Certification: IEC, UL
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Standards: IEC 60947-2, UL 489
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Weight: 3.668 lb (1.664 kg)


Product Identification
  • UPC: 783643209718
  • GTIN: 00783643209718
