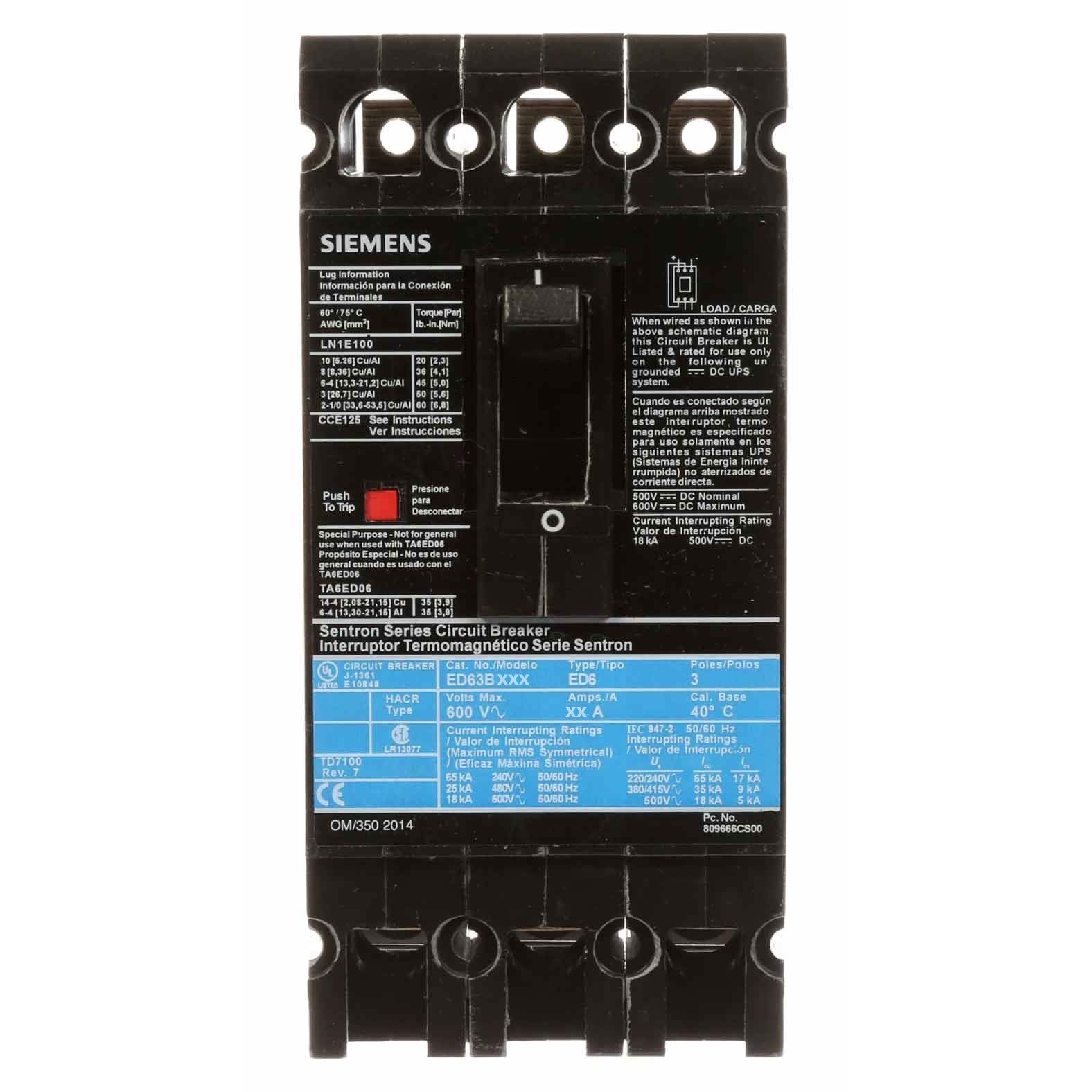

Siemens ED63B035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 35A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 6.693" x 5.906" x 3.988" and weighing 0.359 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is UL Listed and IEC Certified, and operates effectively in temperatures from -25°C to 70°C. Its 25kA interrupting rating at 480V and bolt-on connection for AWG 10 to 1/0 copper or aluminum conductors make it suitable for industrial panelboards, switchgear, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 6.693" H x 5.906" W x 3.988" D (170mm x 150mm x 101.3mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Industrial Panelboards, Switchgear, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 35A
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Thermal-Magnetic
  • Wire Size: AWG 10 to AWG 1/0, Copper or Aluminum
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Certification: UL, IEC
  • Terminal Connection: Screw/Bolt
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL 489, IEC 60947-2
  • Installation Type: Fixed
  • Breaker Frame: ED Frame
  • Enclosure: Molded Case
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209701
  • GTIN: 00783643209701
