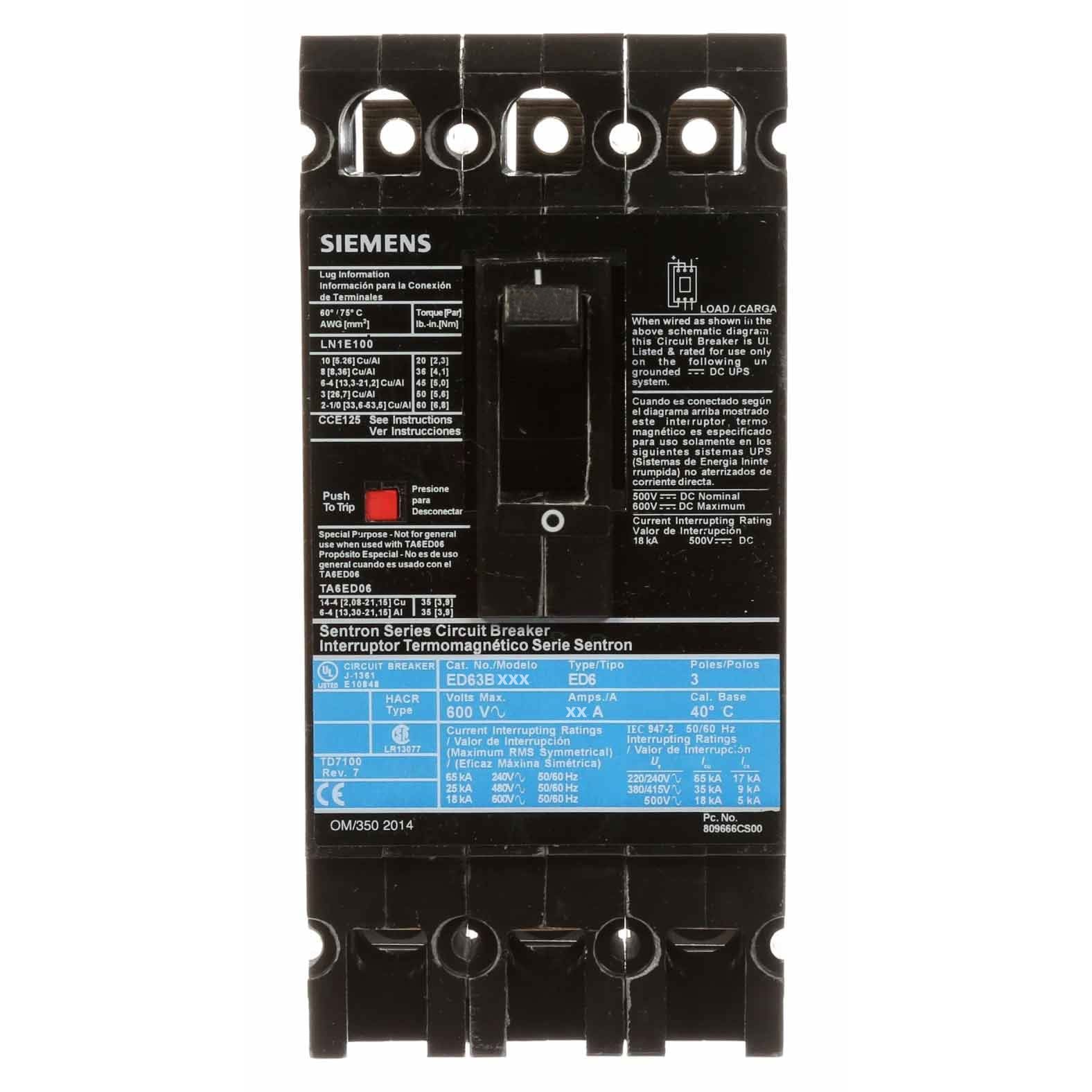

Siemens ED63B030 - Molded Case Breaker 30A 600V 3P
Siemens ED63B030 - Molded Case Breaker 30A 600V 3P

Siemens ED63B030 - Molded Case Breaker 30A 600V 3P

Siemens
Price
Save $2,409.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED63B030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 30A continuous current rating and a 600V AC voltage rating, housed within a compact, bolt-on ED frame measuring 6.693" x 5.906" x 3.984" and weighing 3.664 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous trip functions, ensuring protection across a wide operating temperature range from -25°C to 70°C (-13°F to 158°F). It is certified to UL and IEC standards with an interrupting capacity of 25kA at 480V AC, making it suitable for panelboards, switchboards, and industrial control panels where robust circuit protection is required for copper or aluminum conductors ranging from AWG 10 to 1/0.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 6.693" H x 5.906" W x 3.984" D (170mm x 150mm x 101.2mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 30A
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 10 to AWG 1/0, Copper or Aluminum
  • Certification: UL Listed, IEC Certified
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Weight: 3.664 lb


Product Identification
  • UPC: 783643209695
  • GTIN: 00783643209695
