Siemens ED63B025 - Molded Case Circuit Breaker 25A 600V 3P
Siemens ED63B025 - Molded Case Circuit Breaker 25A 600V 3P

Siemens ED63B025 - Molded Case Circuit Breaker 25A 600V 3P

Siemens
Price
Save $2,508.33
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

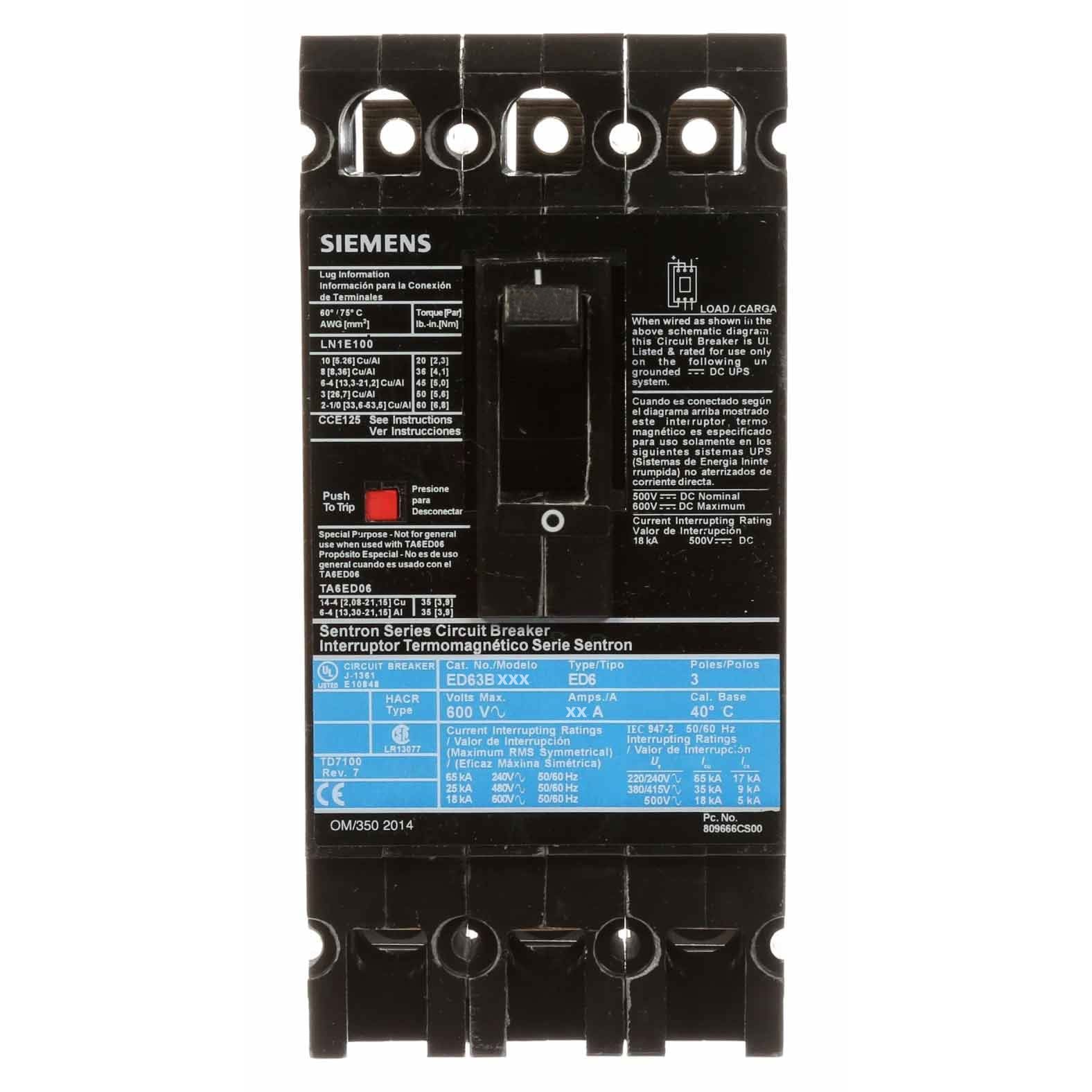

Siemens ED63B025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 25A current rating and a 600V AC voltage rating, housed within a compact ED frame with bolt-on connections and dimensions of 6.693" x 5.906" x 3.981" (170mm x 150mm x 101mm). This thermal-magnetic breaker, part of the Sentron Series, is IEC certified and UL listed, ensuring compliance with international safety standards for applications such as motor protection, feeder circuits, and industrial panelboards. Its LI (Long-time and Instantaneous) tripping functions and 25kA interrupting capacity at 480V AC provide robust protection across an operating temperature range of -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Frame Size: ED Frame
  • Poles: 3
  • Phase: 3-Phase
  • AIC Rating: 25kA @ 480V AC
  • Protection Functions: LI (Long-Time and Instantaneous)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.693" H x 5.906" W x 3.981" D (170mm x 150mm x 101mm)
  • Weight: 3.693 lb
  • Standards & Certification: IEC Certified, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209688
  • GTIN: 00783643209688
