Siemens ED63B020 - Molded Case Circuit Breaker, 20A 3P (600V AC)
Siemens ED63B020 - Molded Case Circuit Breaker, 20A 3P (600V AC)

Siemens ED63B020 - Molded Case Circuit Breaker, 20A 3P (600V AC)

Siemens
Price
Save $2,604.41
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

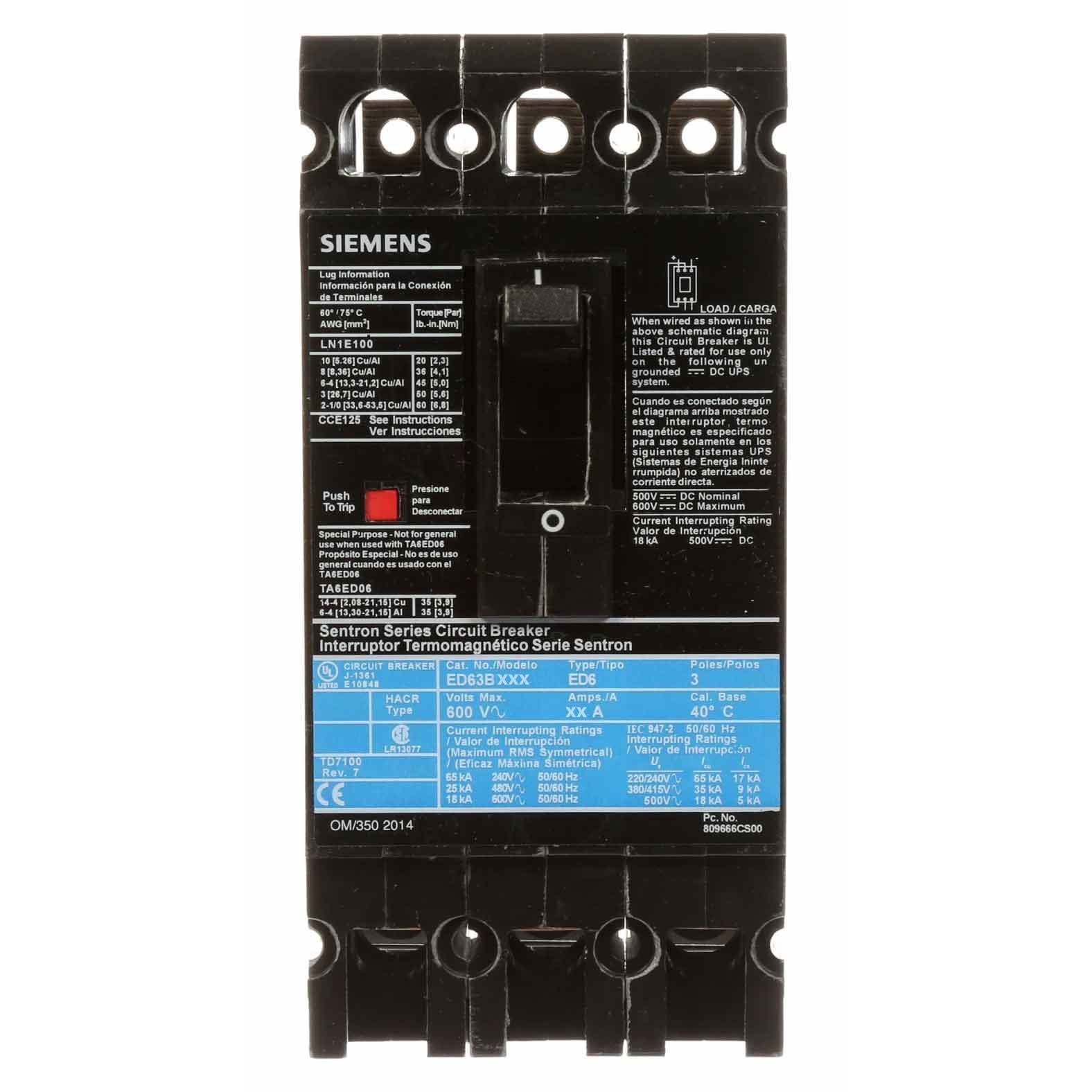

Siemens ED63B020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 20A thermal-magnetic trip unit with long-time and instantaneous functions, rated for 600V AC and an interrupting capacity of 25kA at 480V AC. The compact, bolt-on unit is constructed within a durable ED frame with dimensions of 6.693" x 5.906" x 3.978" (170mm x 150mm x 101mm) and a weight of 3.664 lb, operating effectively across a temperature range of -25°C to 70°C. It complies with key industry standards, being both UL Listed and IEC Certified, ensuring safe integration into panelboards and switchgear. Typical applications include protecting feeder and branch circuits for motors, transformers, and other equipment utilizing copper conductors from AWG 14 to 10 or aluminum from AWG 12 to 10.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, ED Frame, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 6.693" H x 5.906" W x 3.978" D (170mm x 150mm x 101mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Industrial power distribution, motor protection, panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal-Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: ED Frame
  • Trip Type: Thermal-Magnetic
  • AIC rating: 25kA @ 480V AC
  • Wire Size: AWG 14 to AWG 10 (Cu), AWG 12 to AWG 10 (Al)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3.664 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209671
  • GTIN: 00783643209671
