Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P
Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P
Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P
Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P
Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P
Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P

Siemens ED63B015 - Molded Case Circuit Breaker, 15A 600V 3P

Siemens
Price
Save $2,647.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

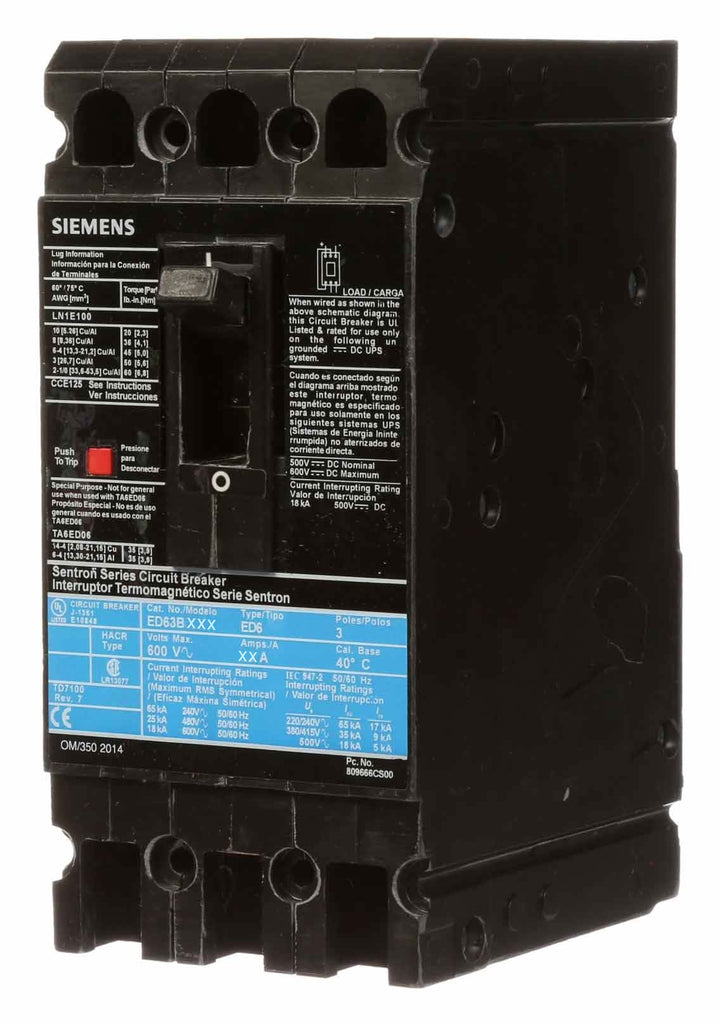

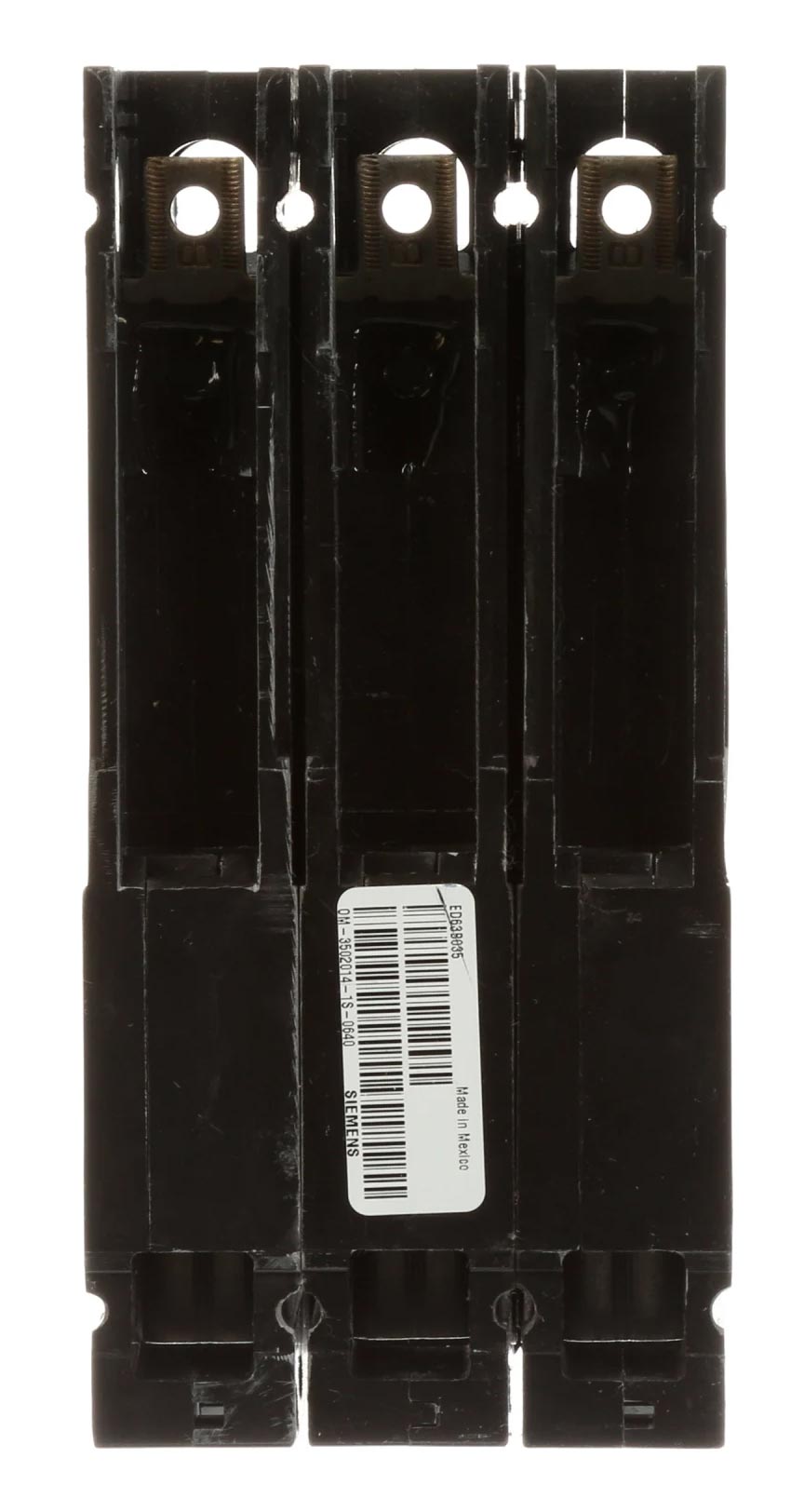

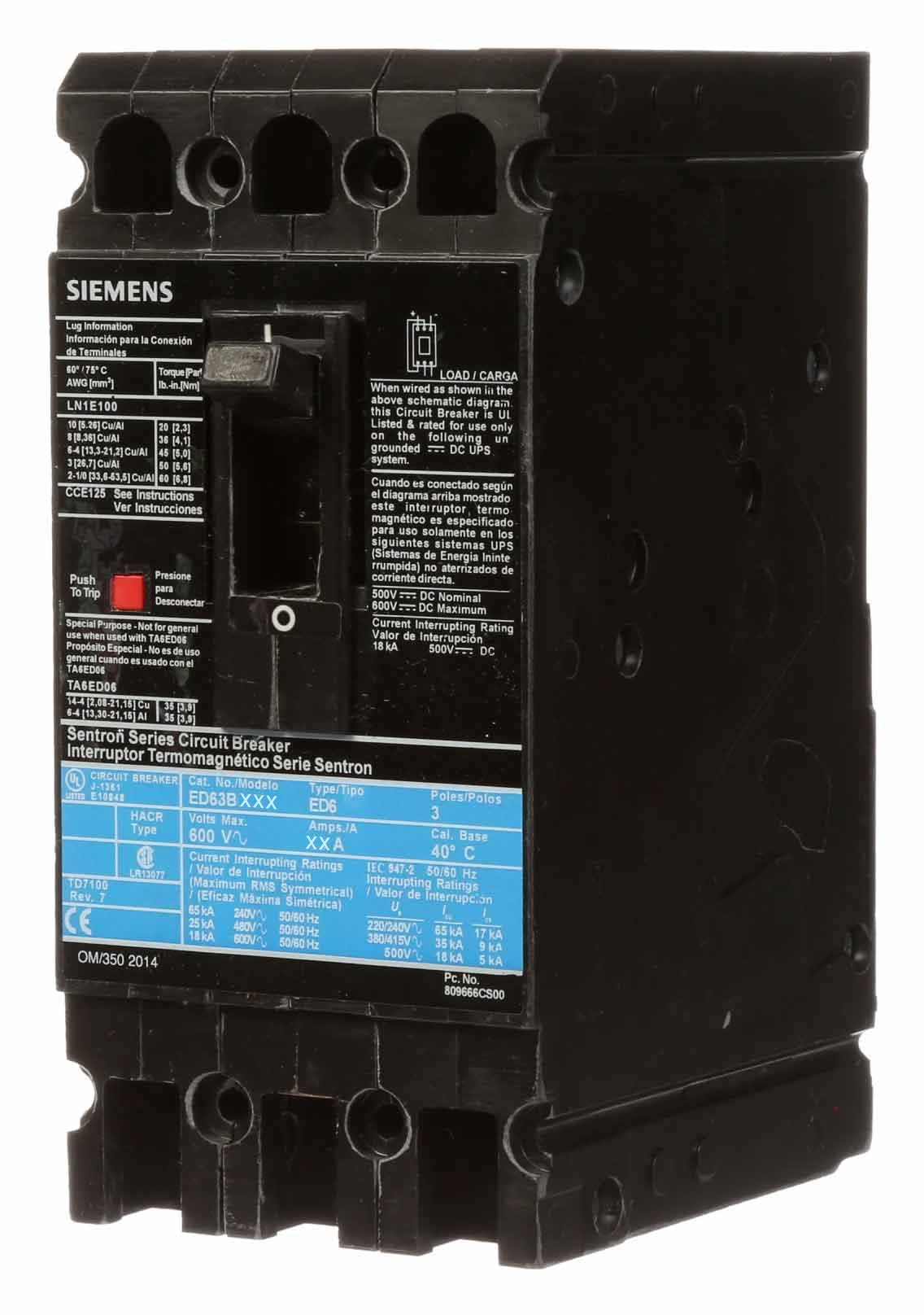

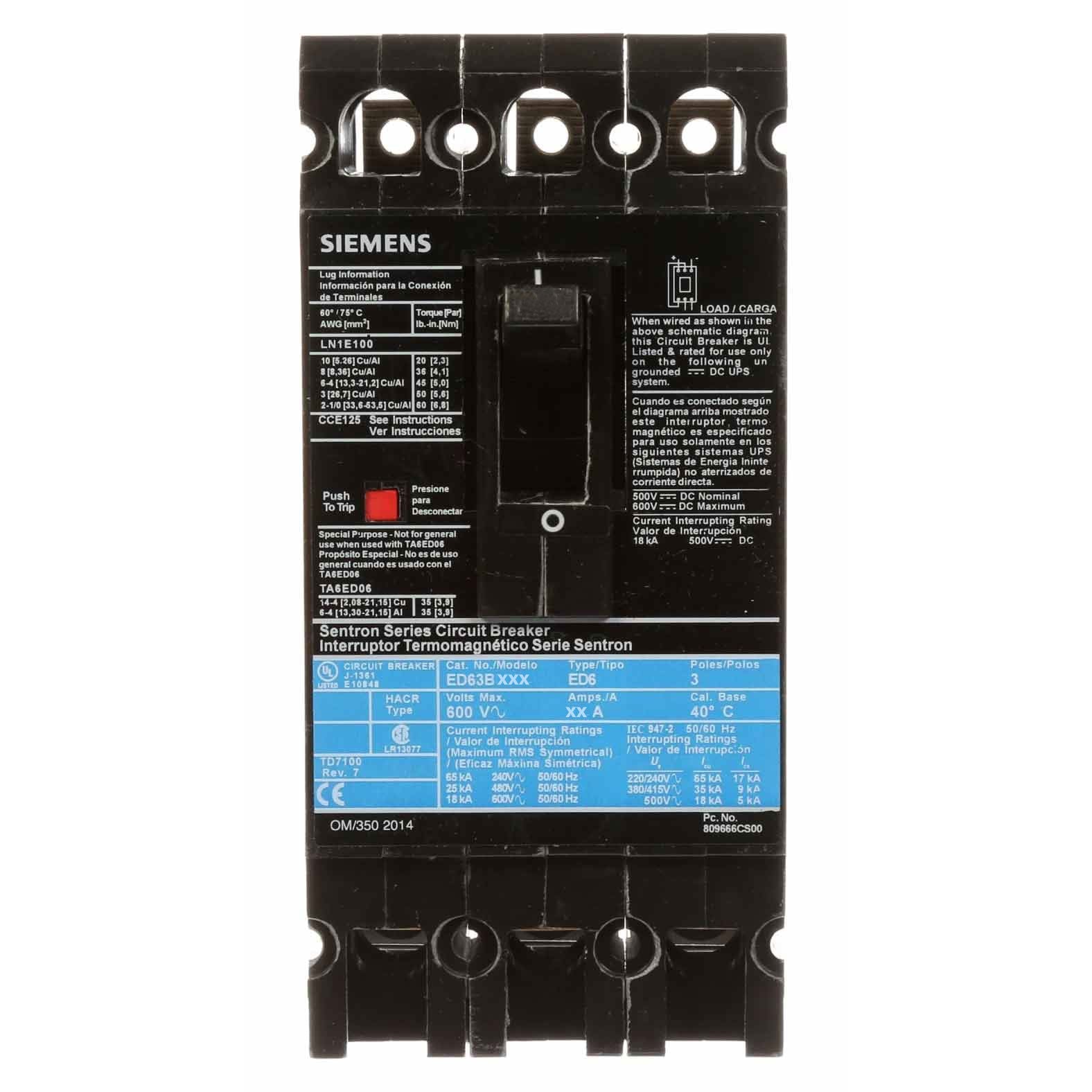

Siemens ED63B015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial electrical systems. It features a 15A thermal-magnetic trip unit with long-time and instantaneous functions, rated for 600V AC and an interrupting capacity of 25kA at 480V AC. The compact, bolt-on unit measures 6.693" x 5.906" x 3.974" (170mm x 150mm x 101mm) and weighs 3.715 lb, constructed within a durable ED frame for robust performance. It is UL Listed and IEC Certified, ensuring compliance with key industry safety and performance standards for integration into panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Frame Size: ED Frame
  • Poles: 3
  • AIC Rating: 25kA @ 480V AC
  • Phase: 3
  • Functions: Long Time and Instantaneous Trip
  • Connection: Bolt-On
  • Wire Size: AWG 14 to AWG 10 (Copper), AWG 12 to AWG 10 (Aluminum)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL Listed, IEC Certified
  • Dimensions: 6.693 in x 5.906 in x 3.974 in (170 mm x 150 mm x 101 mm)
  • Weight: 3.715 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209664
  • GTIN: 00783643209664
