Siemens ED63A025 - Molded Case Circuit Breaker 25A 600V 3-Pole
Siemens ED63A025 - Molded Case Circuit Breaker 25A 600V 3-Pole

Siemens ED63A025 - Molded Case Circuit Breaker 25A 600V 3-Pole

Siemens
Price
Save $2,621.44
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price

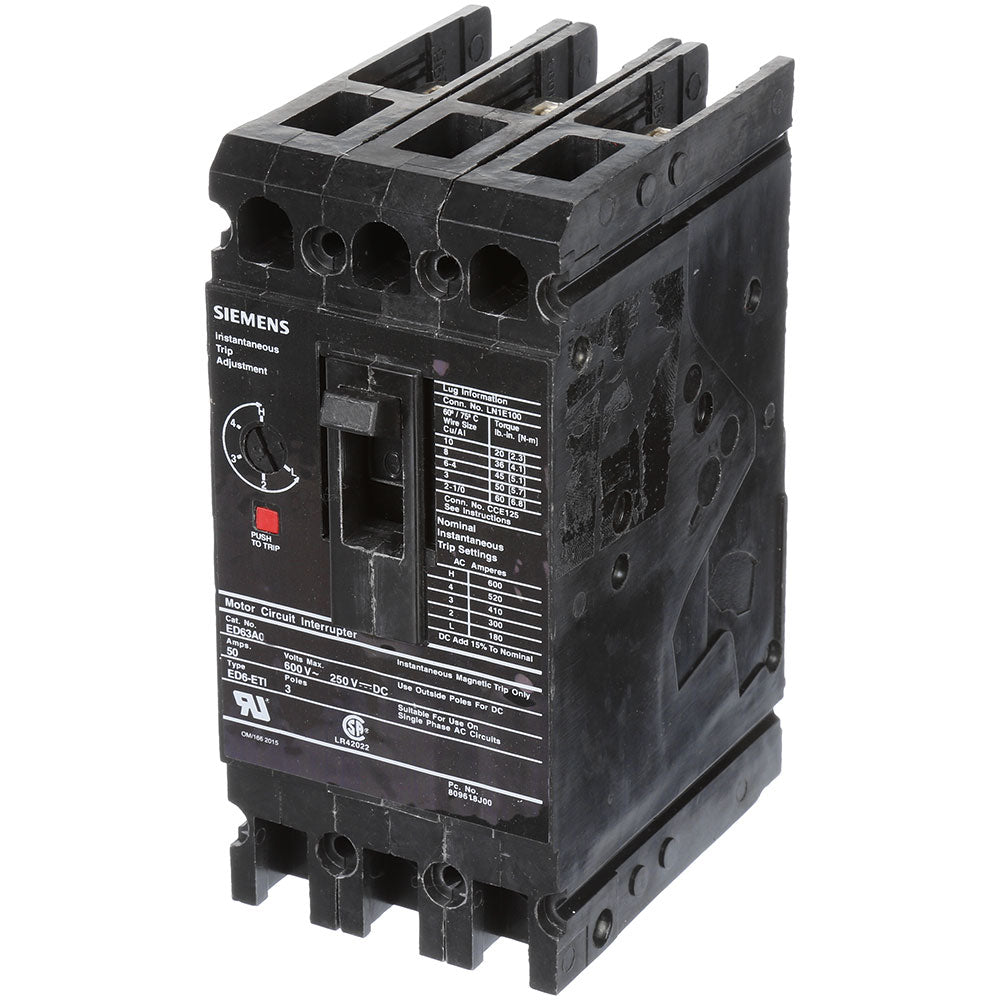

Siemens ED63A025 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection in three-phase electrical systems. It features a 25A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 170mm x 150mm x 100.6mm (6.693" x 5.906" x 3.961") and weighing 0.348 lb. The breaker is IEC certified and UL listed, ensuring compliance with international and North American safety standards, making it suitable for industrial control panels, motor protection circuits, and feeder distribution applications where selective coordination and short-circuit interruption up to 25kA at 480V are required.

Key Features & Specifications
  • Type: ED Frame, Molded Case, Magnetic-Only Protection, Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Dimensions: 170mm x 150mm x 100.6mm (6.693" x 5.906" x 3.961")
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial Control Panels, Motor Protection, Feeder Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On Connection
  • Phase: 3
  • AIC Rating: 25kA @ 480V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic Only
  • Functions: Instantaneous
  • Frame Size: ED Frame
  • Trip Type: Magnetic
  • Wire Size: AWG 14 to AWG 10 (Copper), AWG 12 to AWG 10 (Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Certification: IEC Certified, UL Listed
  • Family: Sentron Series


Product Identification
  • UPC: 783643210837
  • GTIN: 00783643210837
