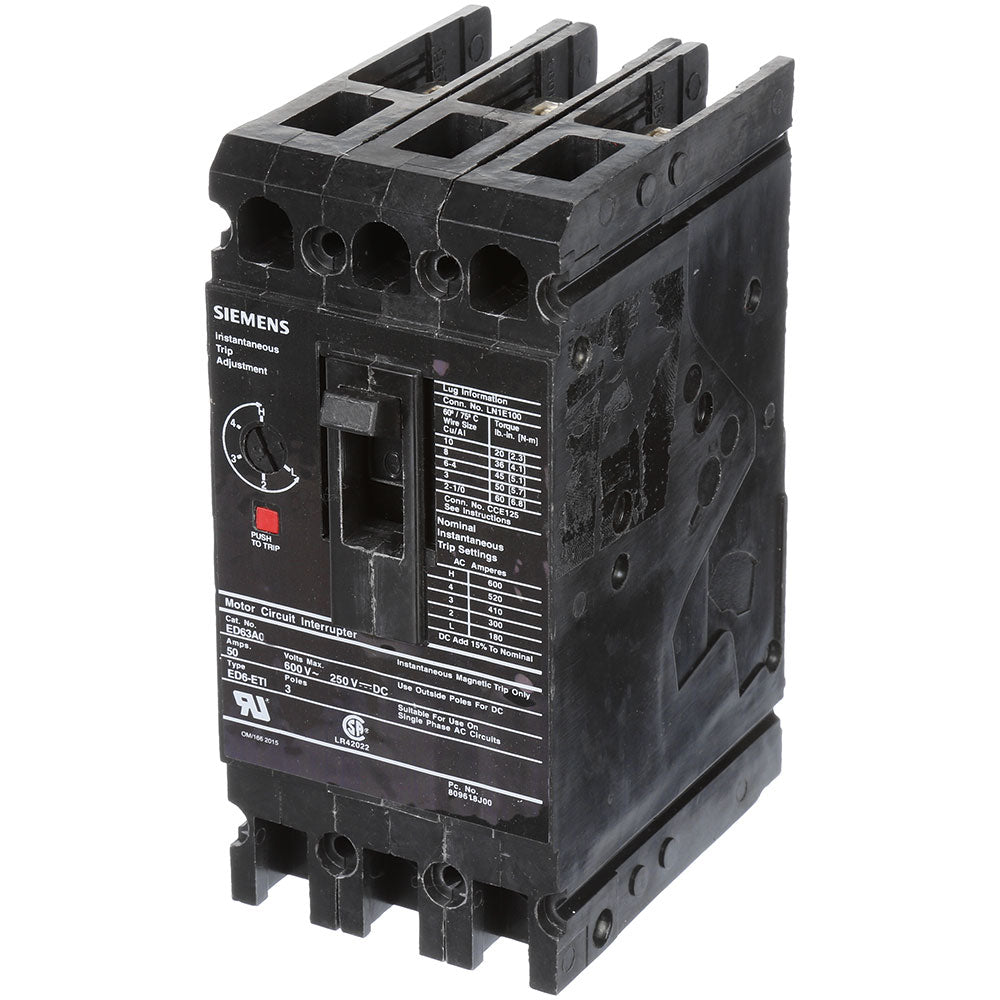

Siemens ED63A002 - Molded Case Circuit Breaker 2A 600V 3P
Siemens ED63A002 - Molded Case Circuit Breaker 2A 600V 3P

Siemens ED63A002 - Molded Case Circuit Breaker 2A 600V 3P

Siemens
Price
Save $2,633.09
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED63A002 is a molded case circuit breaker designed for providing instantaneous magnetic-only protection in three-phase electrical systems. It features a 2A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 6.693" x 5.906" x 3.953" and weighing 3.792 lb with a bolt-on connection. The breaker is UL Listed and IEC Certified for safety, with an interrupting capacity of 25kA at 480V and an operational temperature range of -25°C to 70°C. It is typically applied in industrial control panels and distribution equipment, compatible with copper wire sizes AWG 14 to AWG 10 and aluminum wire sizes AWG 12 to AWG 10.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, ED Frame, Magnetic-Only Protection, Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 2A
  • Dimensions: 6.693" H x 5.906" W x 3.953" D (170mm x 150mm x 100.4mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Industrial Control Panels, Three-Phase Power Distribution
  • Phase: 3
  • AIC Rating: 25kA @ 480V AC
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Magnetic Only
  • Functions: Instantaneous
  • Frame Size: ED Frame
  • Trip Type: Magnetic
  • Wire Size: AWG 14 to AWG 10 (Copper), AWG 12 to AWG 10 (Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3.792 lb (1.72 kg)
  • Country of Origin: Mexico
  • Family: Sentron Series


Product Identification
  • UPC: 783643210790
  • GTIN: 00783643210790
