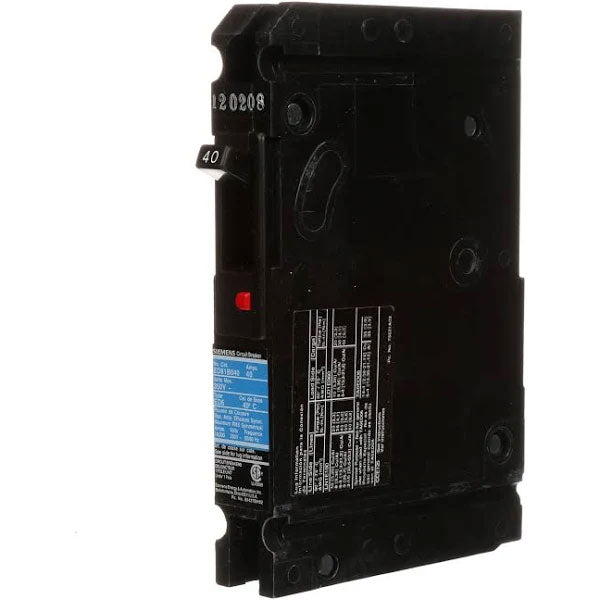

Siemens ED61B040 - Molded Case Breaker 40A 600V AC
Siemens ED61B040 - Molded Case Breaker 40A 600V AC

Siemens ED61B040 - Molded Case Breaker 40A 600V AC

Siemens
Price
Save $1,150.87
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED61B040 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial electrical systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact ED frame with dimensions of 0.787" x 4.724" x 5.920" (20mm x 120mm x 150mm) and a weight of 3.699 lb. The breaker is constructed for robust performance with a thermal-magnetic trip unit providing long-time and instantaneous (LI) protection, and it complies with key industry standards including UL listing and IEC certification. Its bolt-on connection and compatibility with AWG 10 to 4 copper or aluminum conductors make it suitable for a wide range of applications, including panelboards, switchboards, and industrial control panels, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Dimensions: 0.787" x 4.724" x 5.920" (20mm x 120mm x 150mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Panelboards, Switchboards, Industrial Control Panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Amperage: 40A
  • AIC Rating: 30kA @ 347V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: ED Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 10 to AWG 4, Cu/AL
  • Certification: UL Listed, IEC Certified
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Weight: 3.699 lb


Product Identification
  • UPC: 783643218499
  • GTIN: 00783643218499
