Siemens ED61B030 - Molded Case Breaker 30A 600V AC
Siemens ED61B030 - Molded Case Breaker 30A 600V AC

Siemens ED61B030 - Molded Case Breaker 30A 600V AC

Siemens
Price
Save $-86.63
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

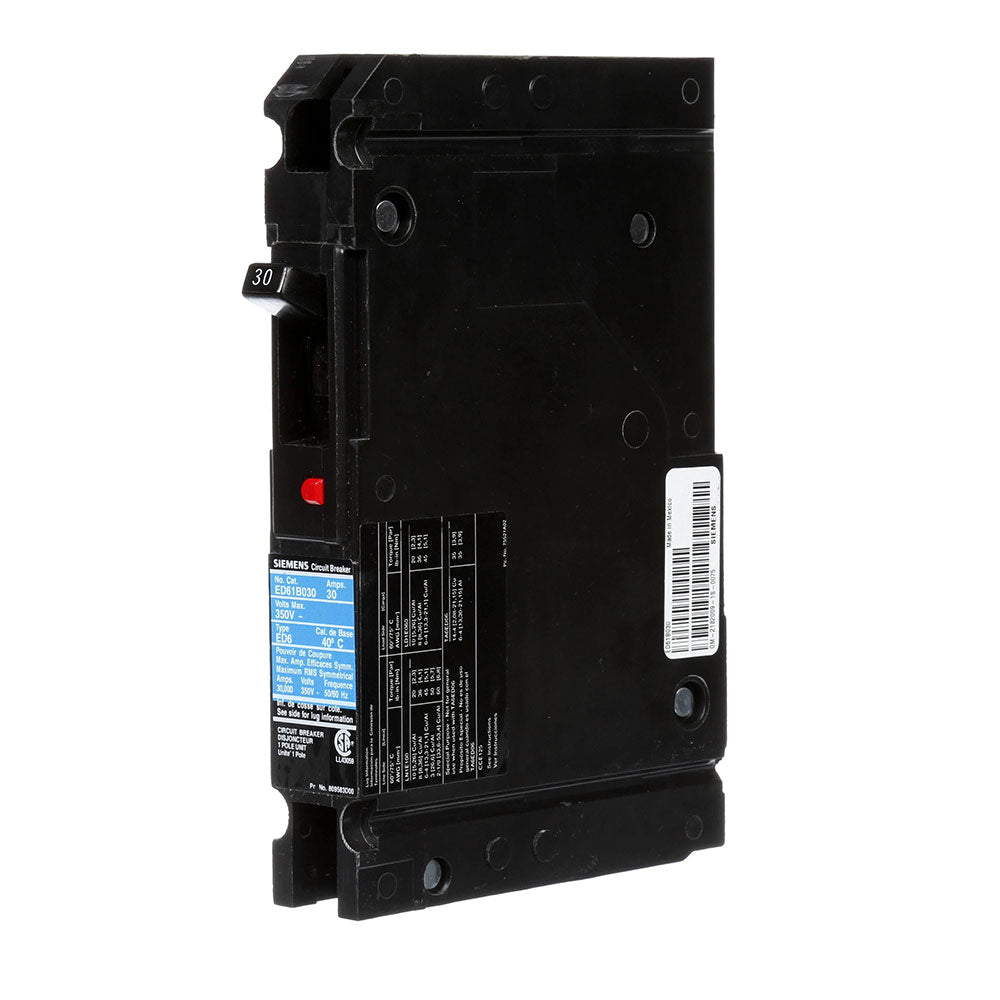

Siemens ED61B030 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact ED frame measuring 0.787" x 4.724" x 5.916" and weighing 1.1 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, is constructed for bolt-on connection, and complies with IEC and UL standards for safety. Its 30kA interrupting rating at 347V and operational temperature range of -25°C to 70°C make it suitable for protecting feeder and branch circuits in panelboards and switchgear.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 0.787" x 4.724" x 5.916" (20mm x 120mm x 150mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Industrial Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 1-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 30kA @ 347V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: ED Frame
  • Wire Size: AWG 10 to AWG 4, Cu/AL
  • Certification: IEC Certified, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Weight: 1.1 lb


Product Identification
  • UPC: 783643218475
  • GTIN: 00783643218475
