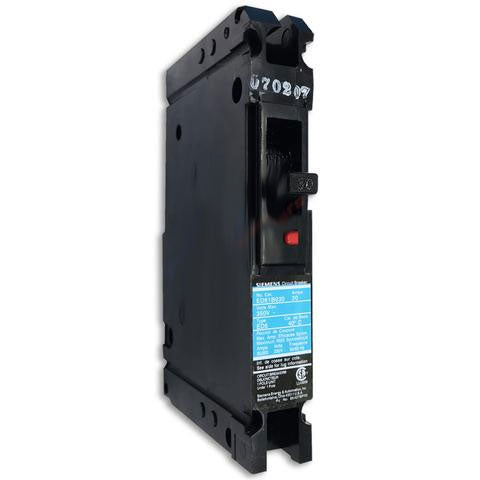

Siemens ED61B020 - Molded Case Circuit Breaker, 20A, 600V AC
Siemens ED61B020 - Molded Case Circuit Breaker, 20A, 600V AC

Siemens ED61B020 - Molded Case Circuit Breaker, 20A, 600V AC

Siemens
Price
Save $1,150.85
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED61B020 is a molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial electrical systems. It features a 20A current rating and a 600V AC voltage rating, housed within a compact ED frame with dimensions of 0.787" x 4.724" x 5.912" (20mm x 120mm x 150mm) and a weight of 3.752 lb. The breaker provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions, ensuring compliance with IEC and UL standards for safety. Its 30kA interrupting capacity at 347V and bolt-on connection for AWG 14-10 copper/aluminum wire make it suitable for panelboards, switchboards, and motor control applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Dimensions: 0.787" H x 4.724" W x 5.912" D (20mm x 120mm x 150mm)
  • Standards: IEC Certified, UL Listed
  • Applications: Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Single-Pole (1P)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Unit Dimensions Apply
  • Phase: Single-Phase
  • Voltage: 600V AC
  • Amperage: 20A
  • AIC Rating: 30kA @ 347V
  • Connection: Bolt-On
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: ED Frame
  • Trip Type: Thermal Magnetic
  • Wire Size: AWG 14 to AWG 10, Copper/Aluminum
  • Certification: IEC, UL
  • Mounting: Fixed
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Standards: IEC 60947-2, UL 489
  • Installation Type: Fixed
  • Breaker Frame: ED Frame
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 783643218451
  • GTIN: 00783643218451
