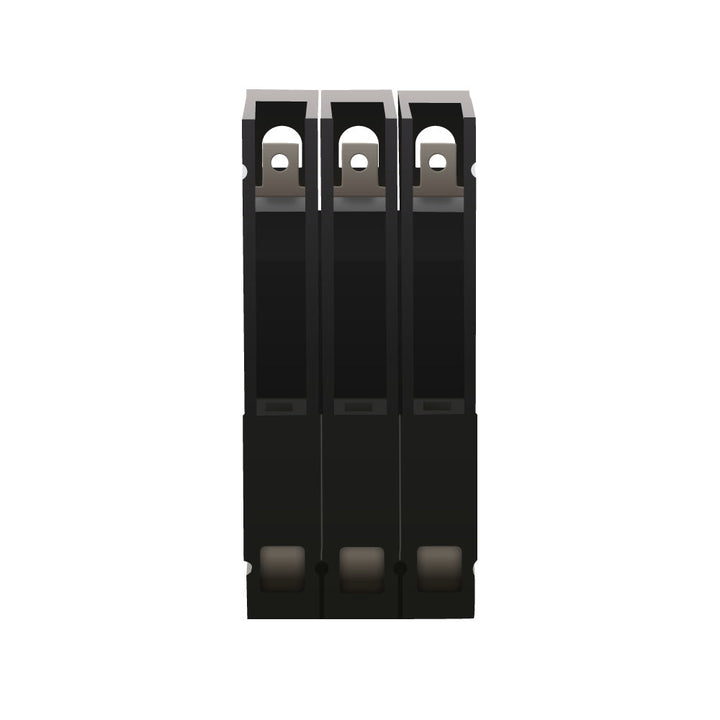

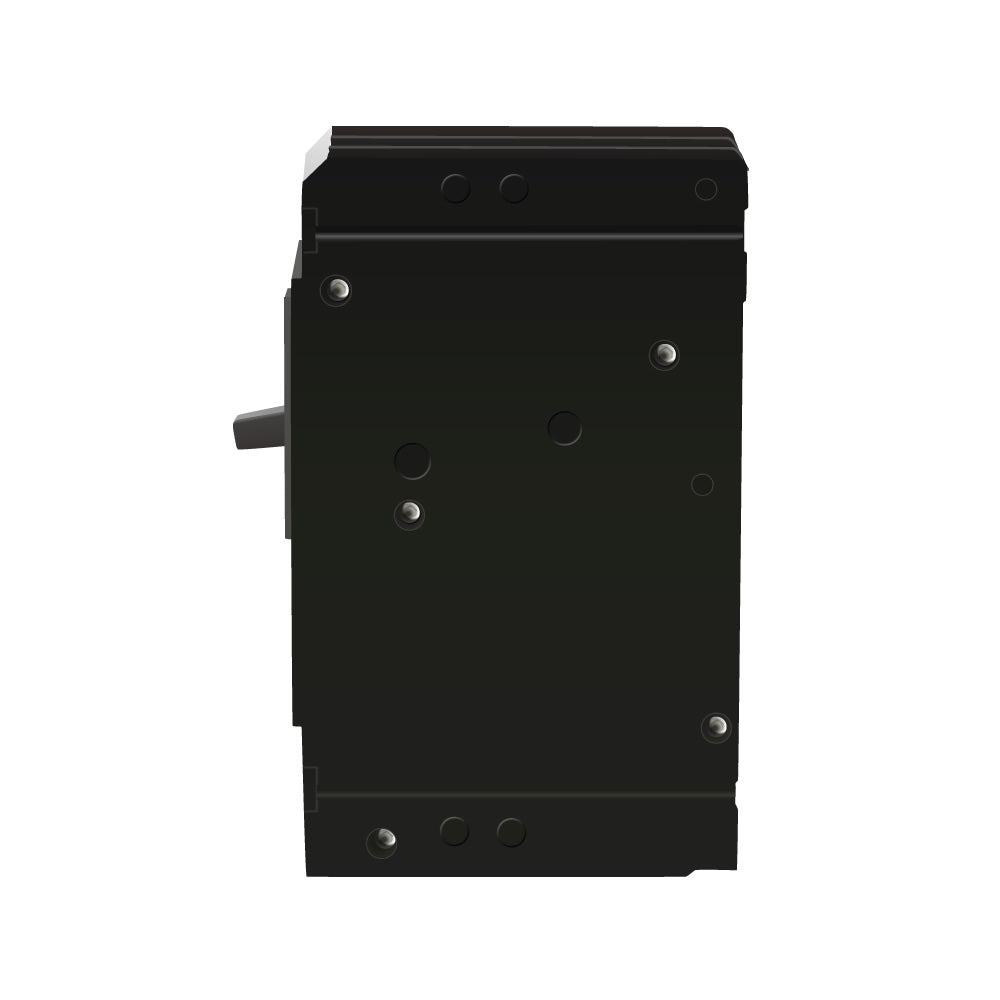

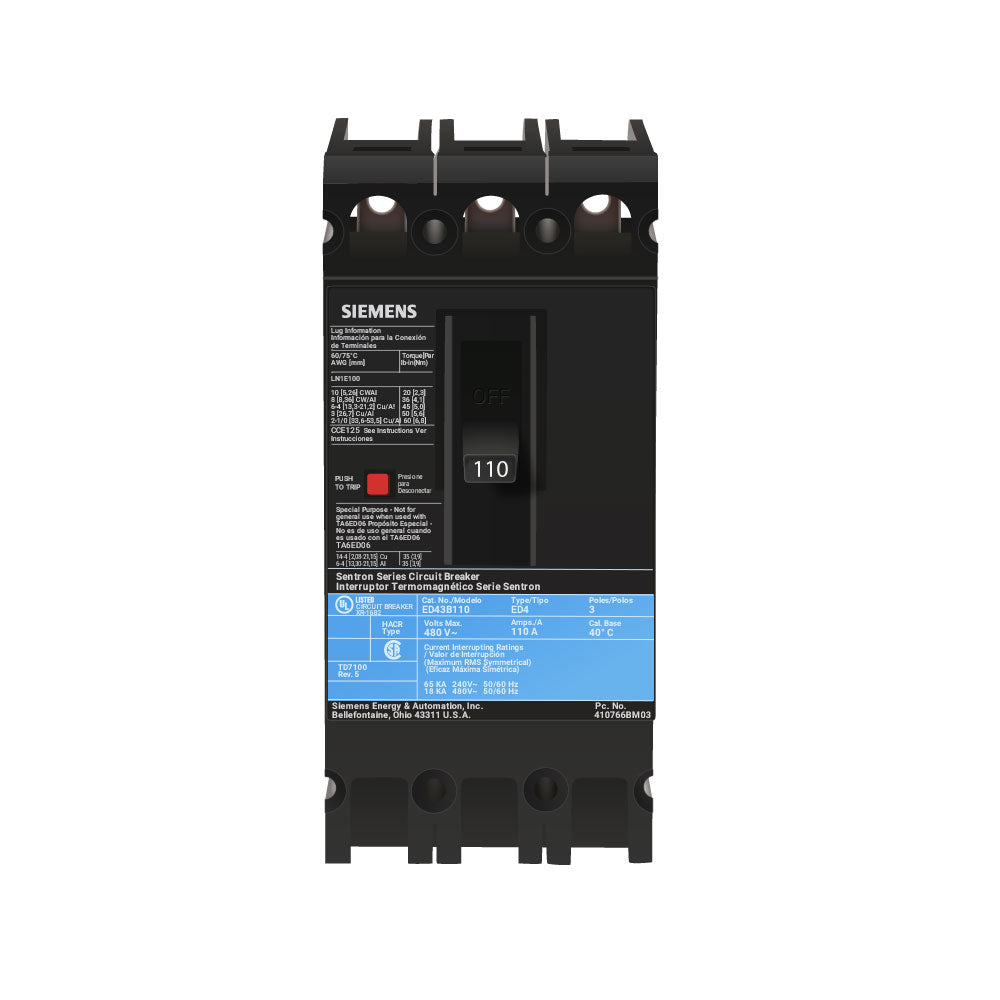

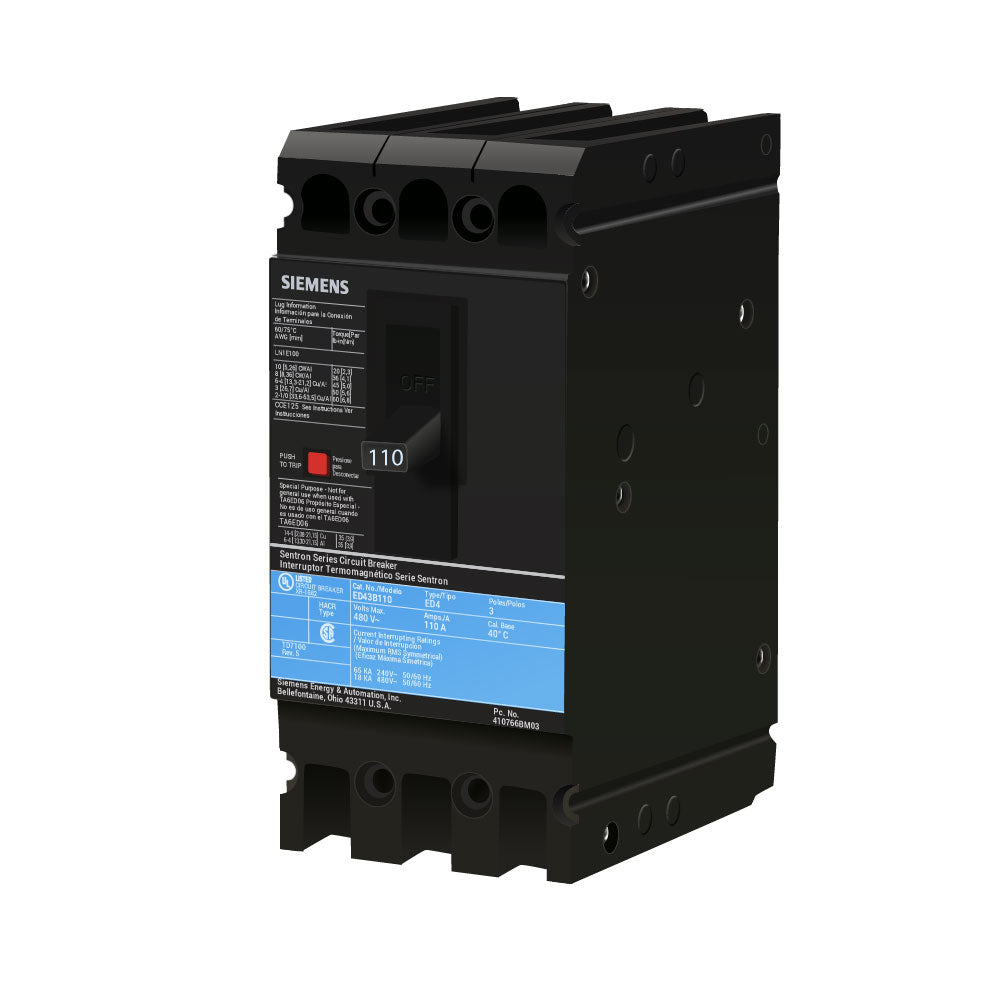

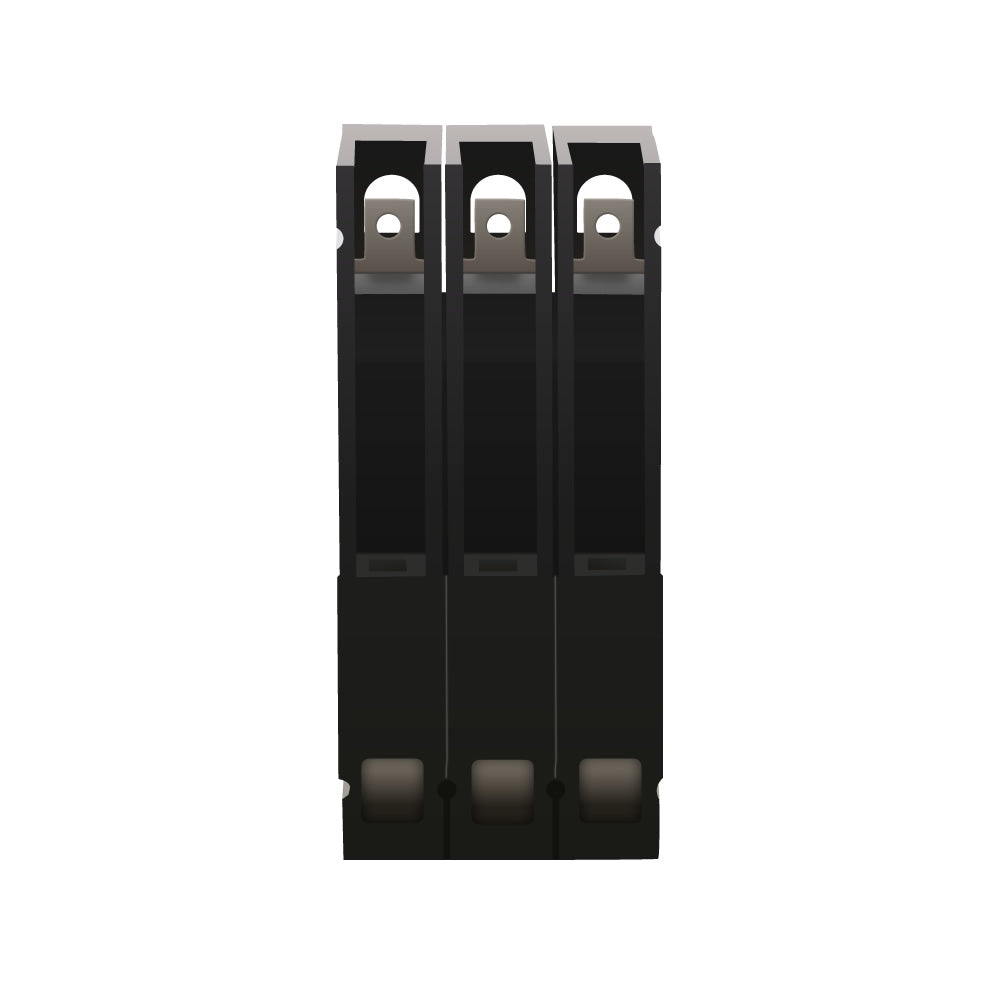

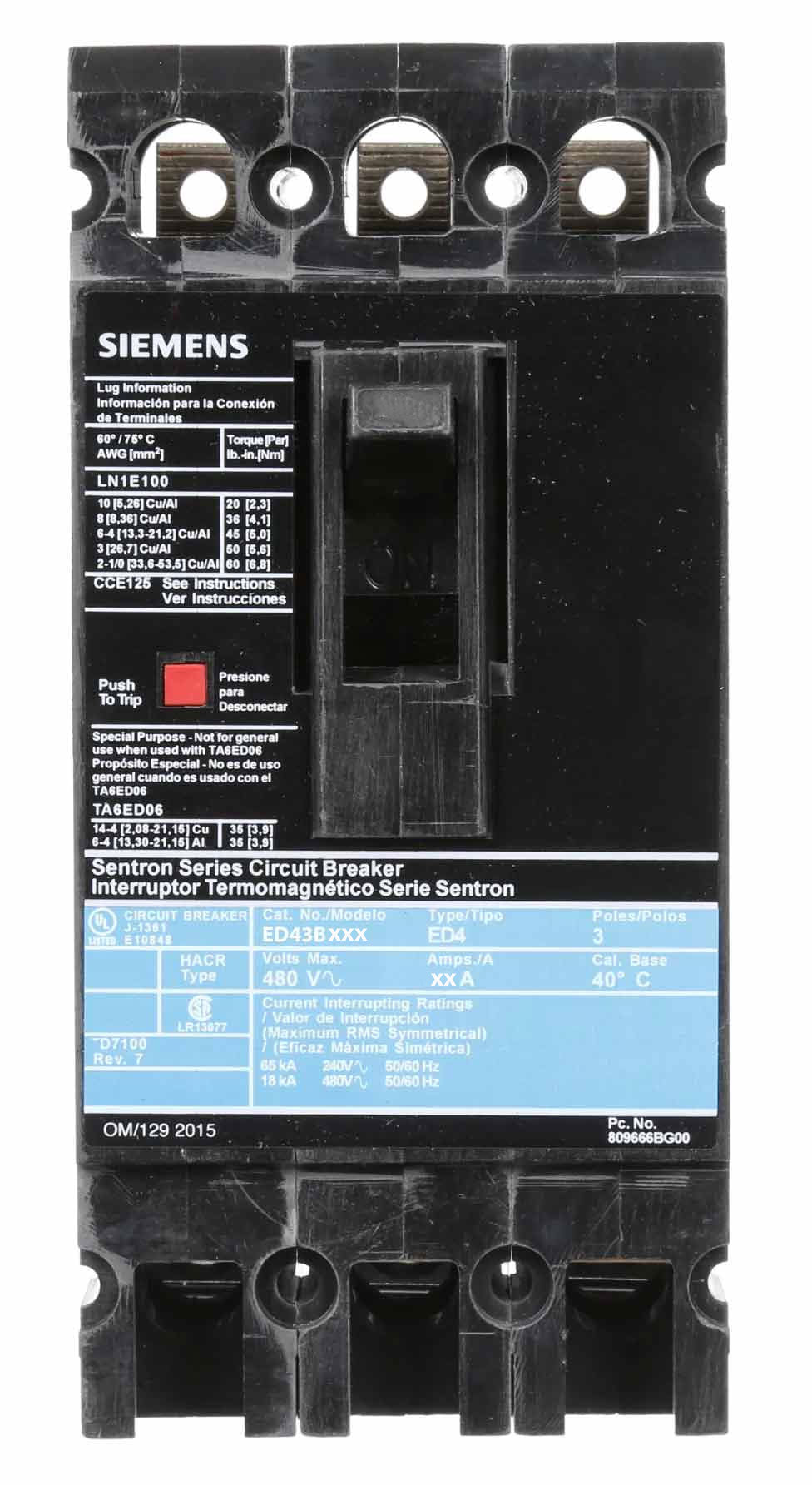

Siemens ED43B110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 110A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame measuring 6.693" x 5.906" x 3.964" and weighing 0.34 lb. This thermal-magnetic breaker offers long-time and instantaneous trip functions, is UL Listed and HACR rated, and is engineered for installation in SB switchboards and Sentron panelboards for commercial and industrial power distribution.
Key Features & Specifications
Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
Voltage Rating: 480V AC
Current Rating: 110A
Frame Size: 125A/ED
Poles: 3
AIC Rating: 18kA @ 480V
Dimensions: 6.693" H x 5.906" W x 3.964" D (170mm x 150mm x 100.7mm)
Weight: 0.34 lb (0.15 kg)
Connection: Lug in Panelboard, Load Side Lug
Wire Size: AWG 3 to 3/0 (Copper), AWG 1 to 2/0 (Aluminum)
Phase Connection: ABC
Standards/Certification: UL Listed, HACR Rated
Operating Temperature: -25°C to 70°C (-13°F to 158°F)
Panel Type: Compatible with SB Switchboards and Sentron Panelboards
Family: Sentron Series
Country of Origin: Mexico
Product Identification
UPC: 783643209497
GTIN: 00783643209497
