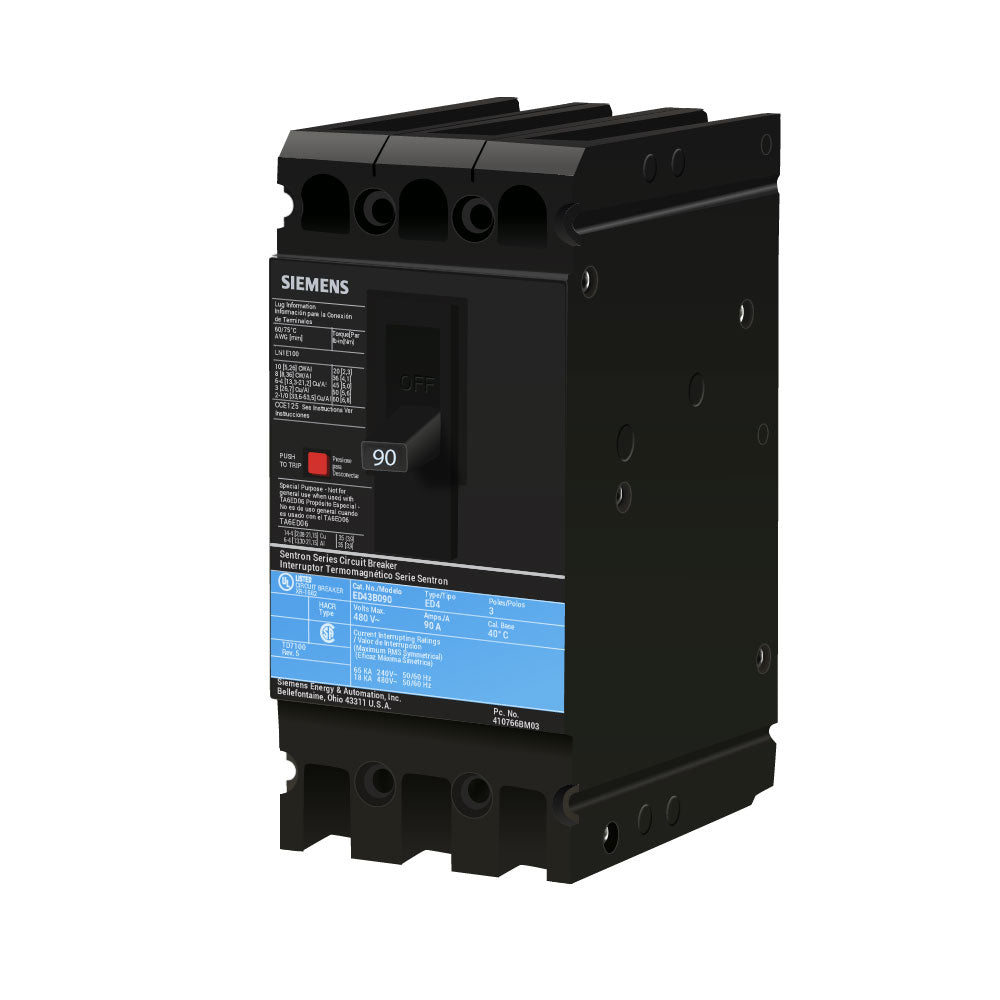

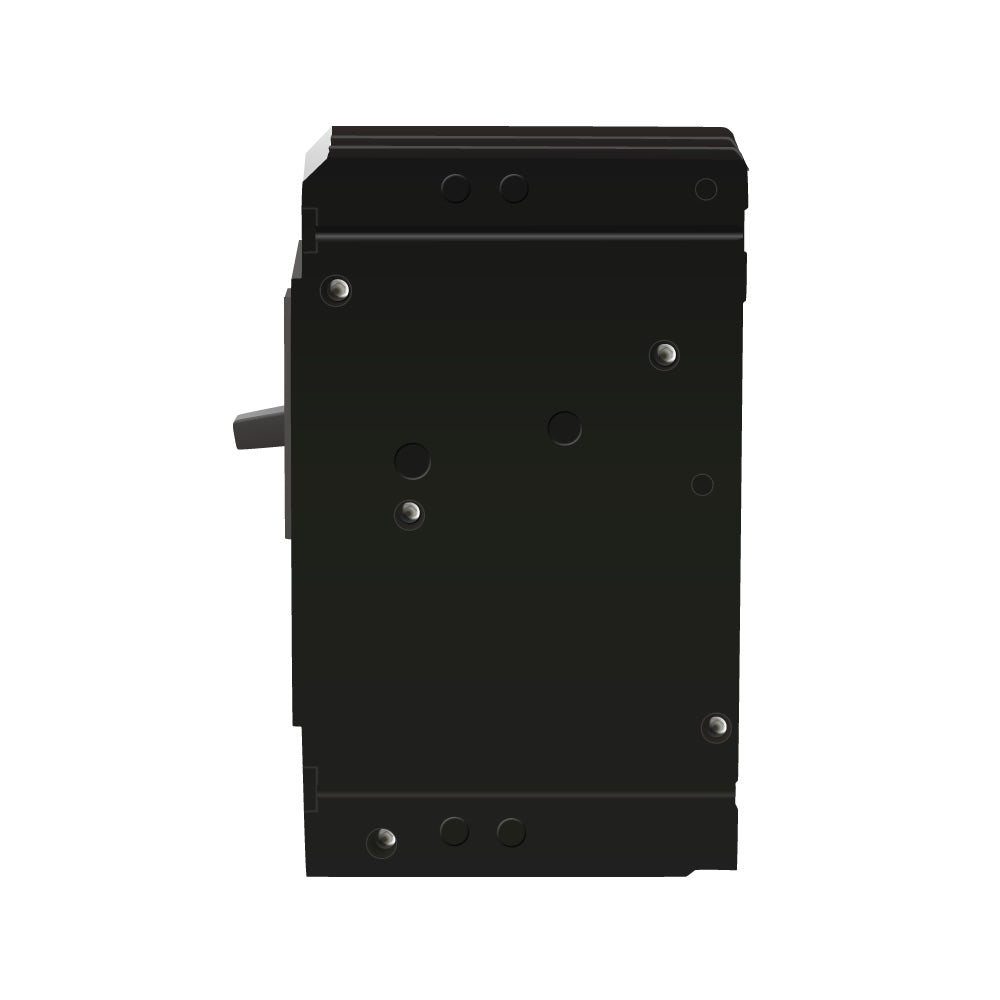

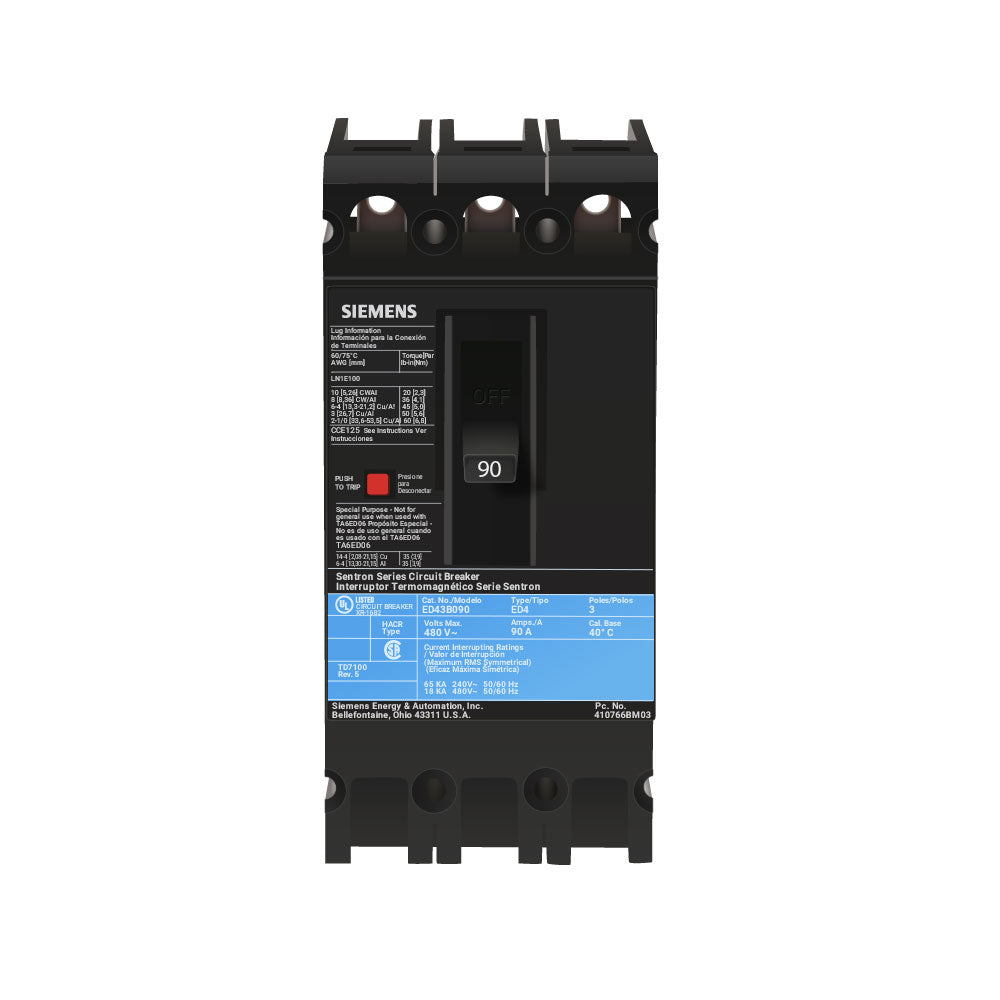

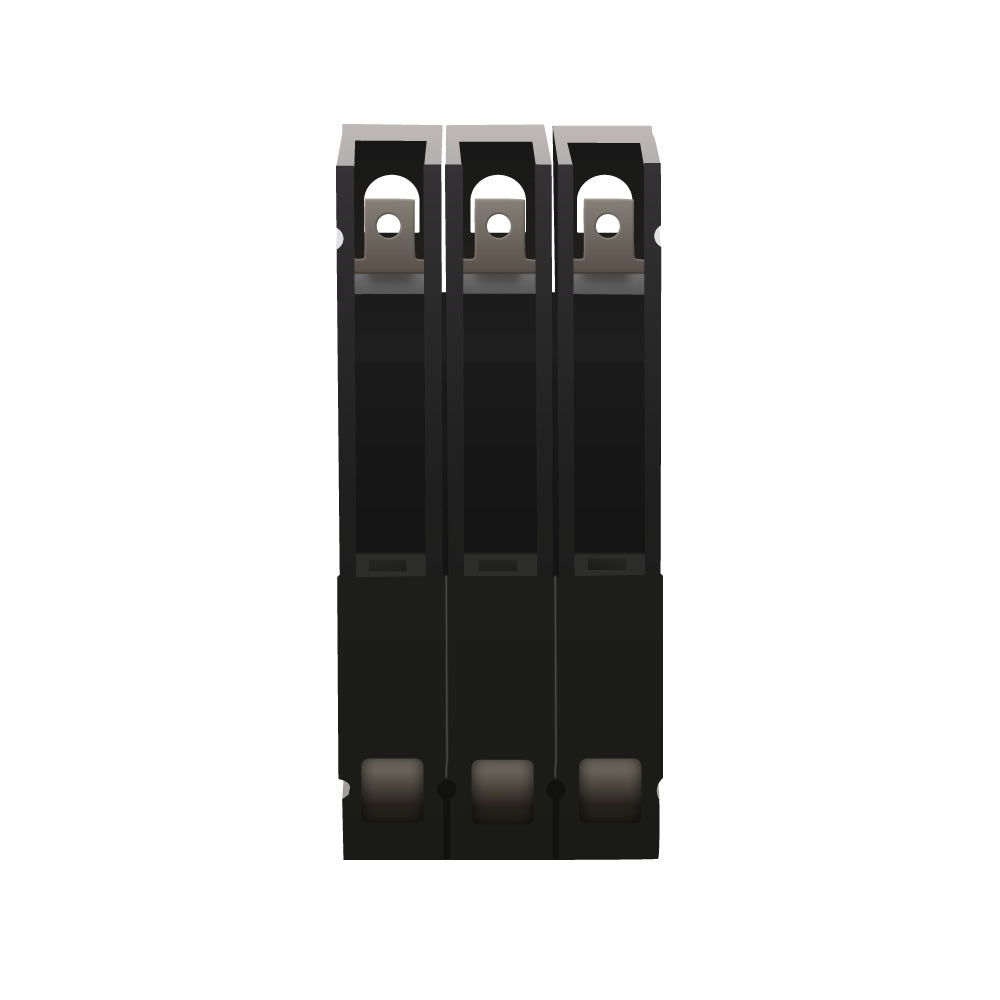

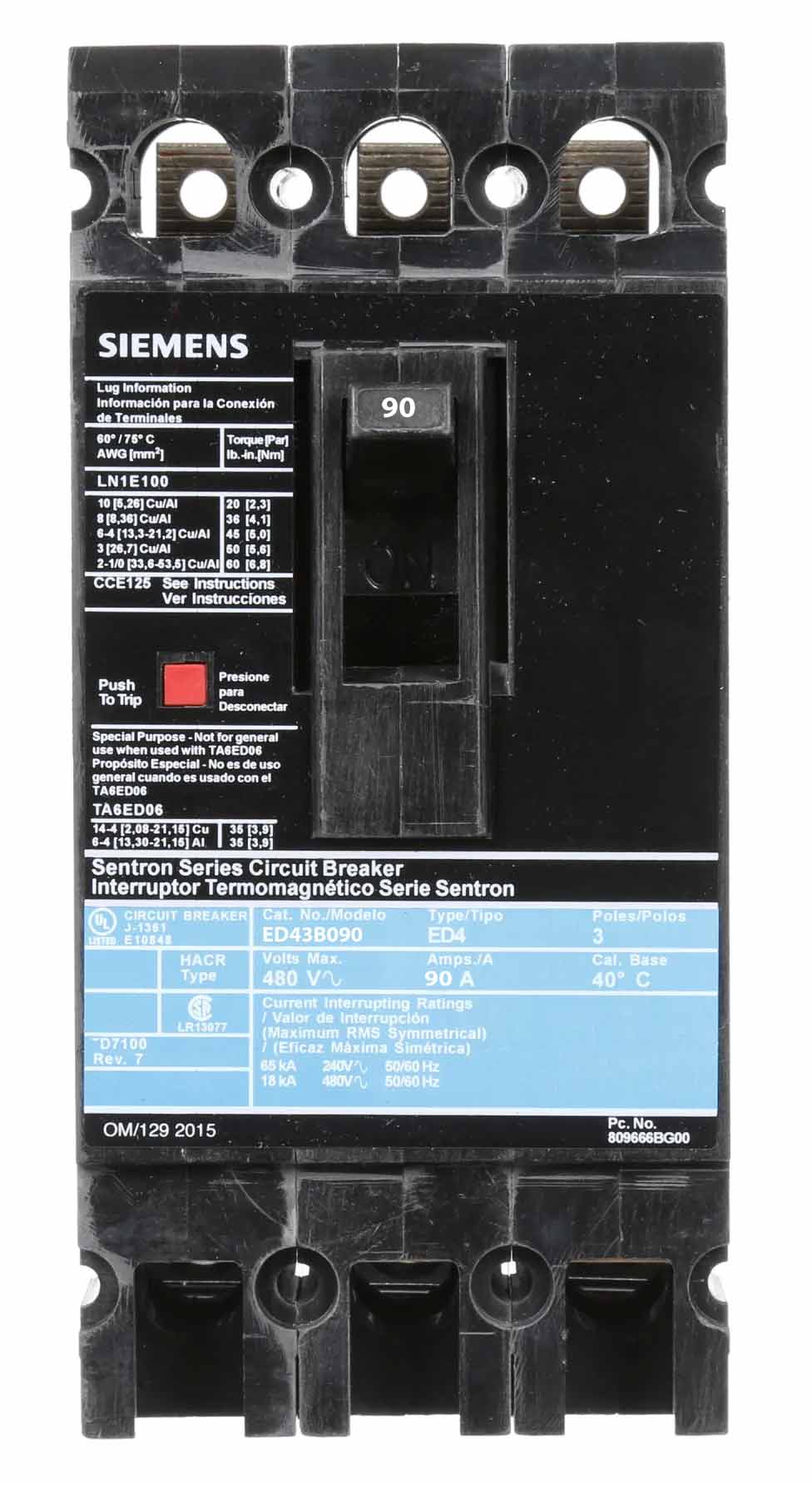

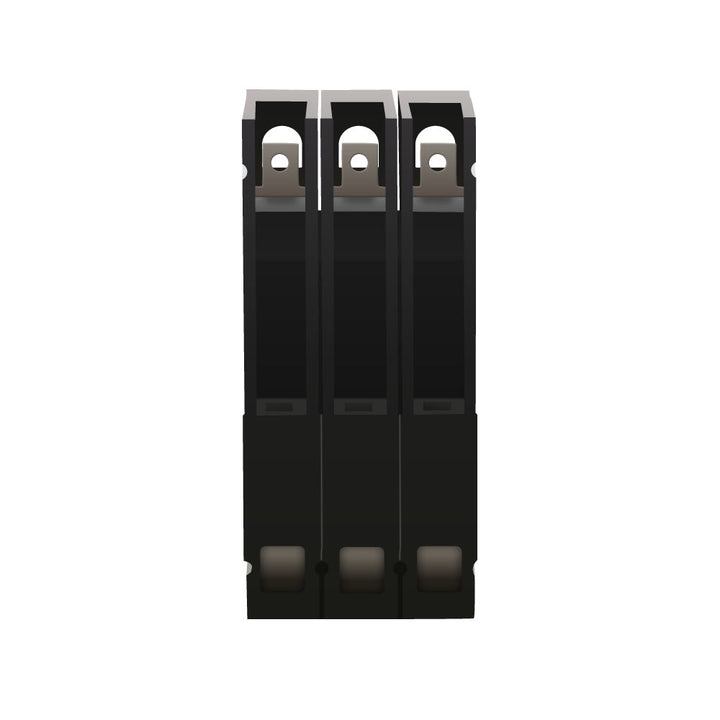

Siemens ED43B090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 90A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame measuring 6.693" x 5.906" x 3.960" and weighing 0.34 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection, is UL Listed and IEC Certified, and is engineered for installation in SB switchboards and Sentron panelboards within industrial and commercial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard Type, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 90A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 18kA at 480V
  • Phase Connection: 3-Phase, ABC
  • Trip Functions: Long Time and Instantaneous Trip
  • Connection: Lug In Panelboard, Load Side Lug Terminals
  • Wire Size Compatibility: AWG 10 to AWG 1/0, Copper or Aluminum (MCM Size)
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 6.693" H x 5.906" W x 3.960" D
  • Weight: 0.34 lb
  • Standards & Certification: UL Listed, IEC Certified
  • Panel Type: Compatible with SB Switchboards and Sentron Panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209473
  • GTIN: 00783643209473
