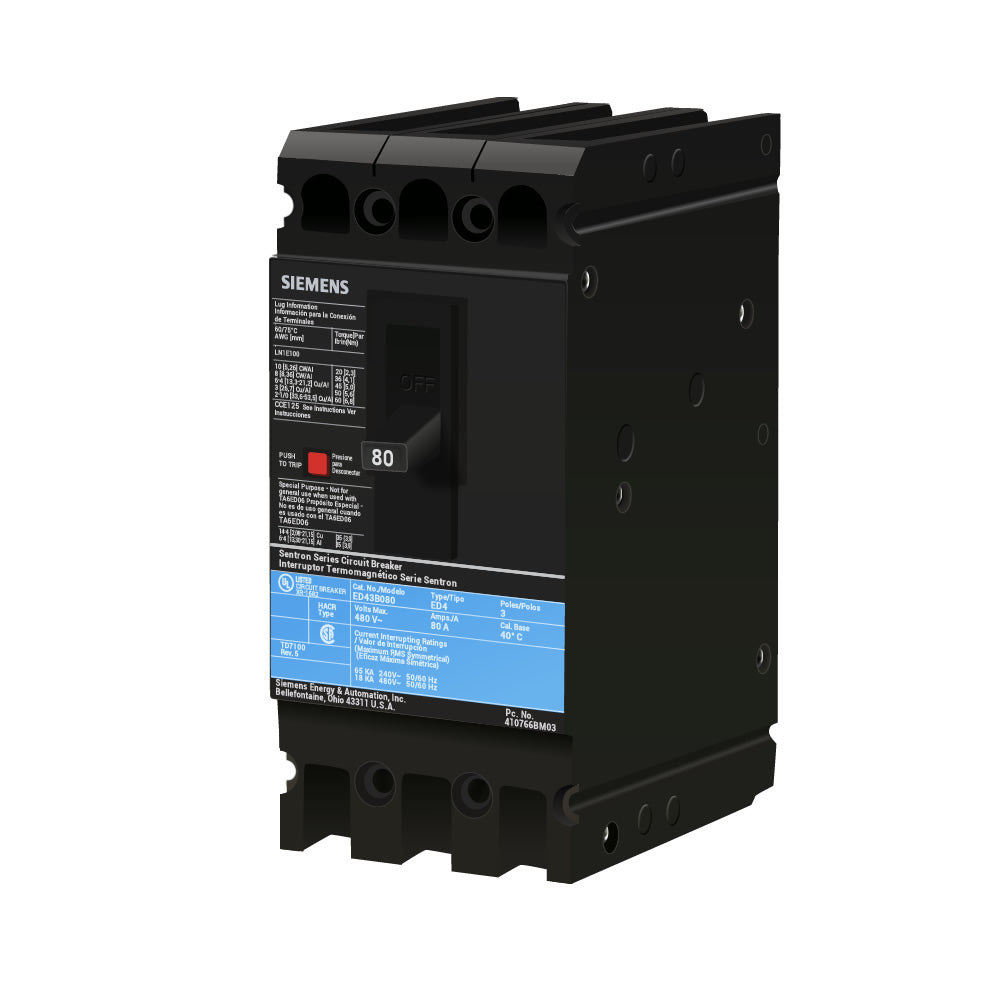

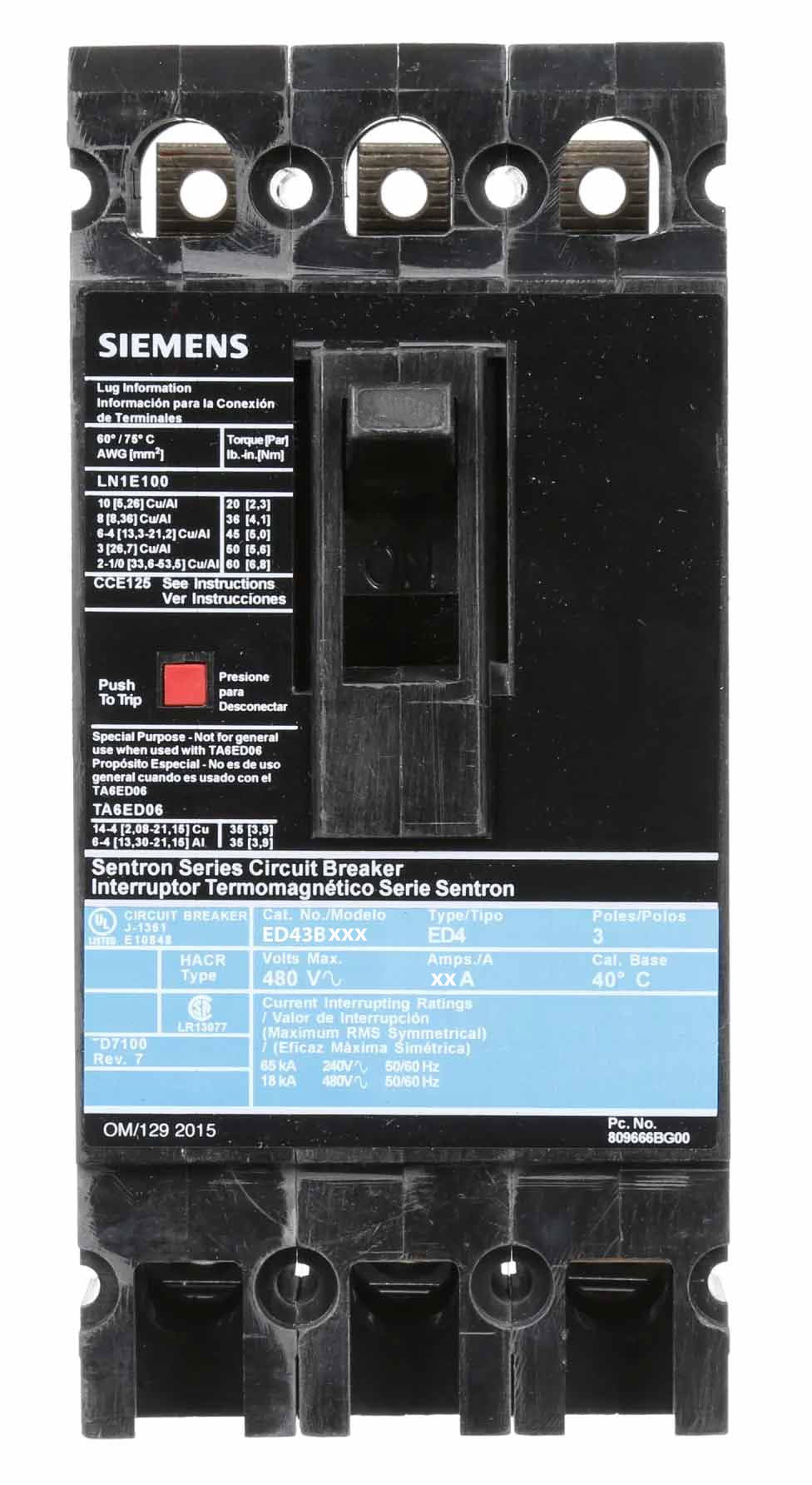

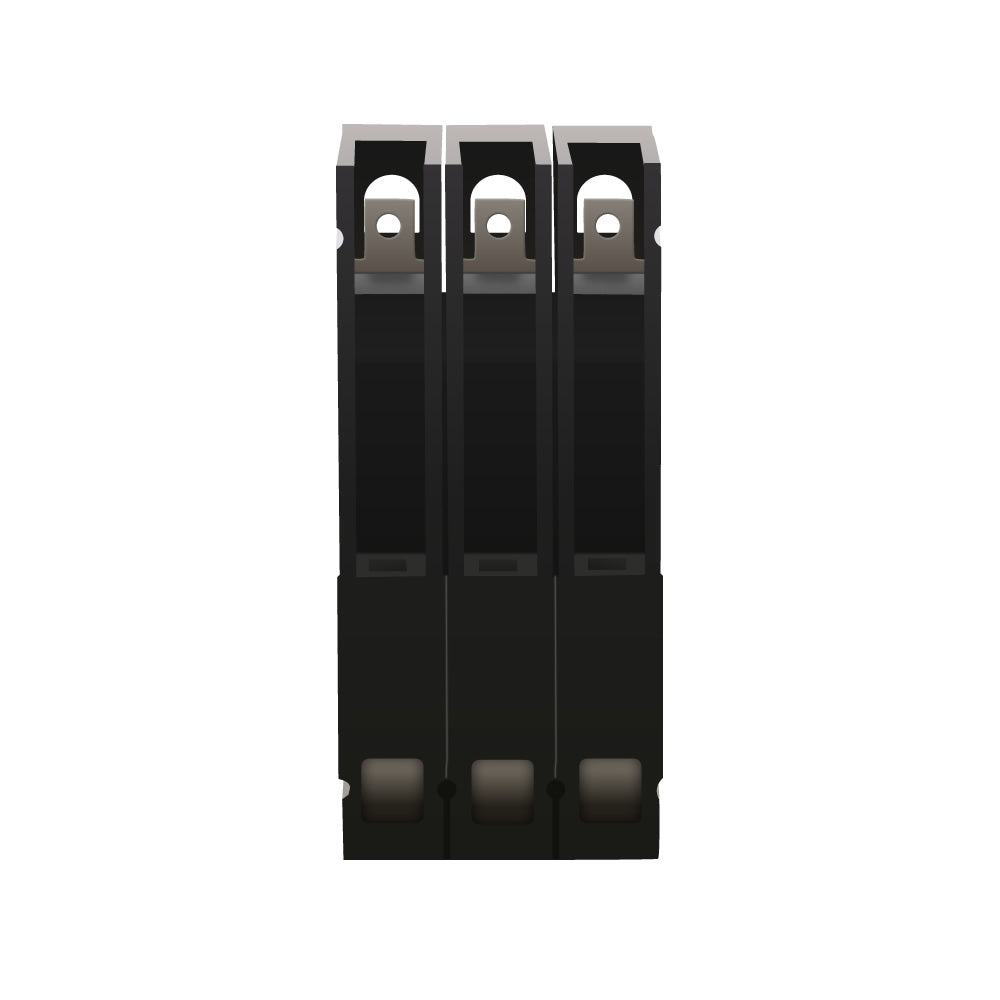

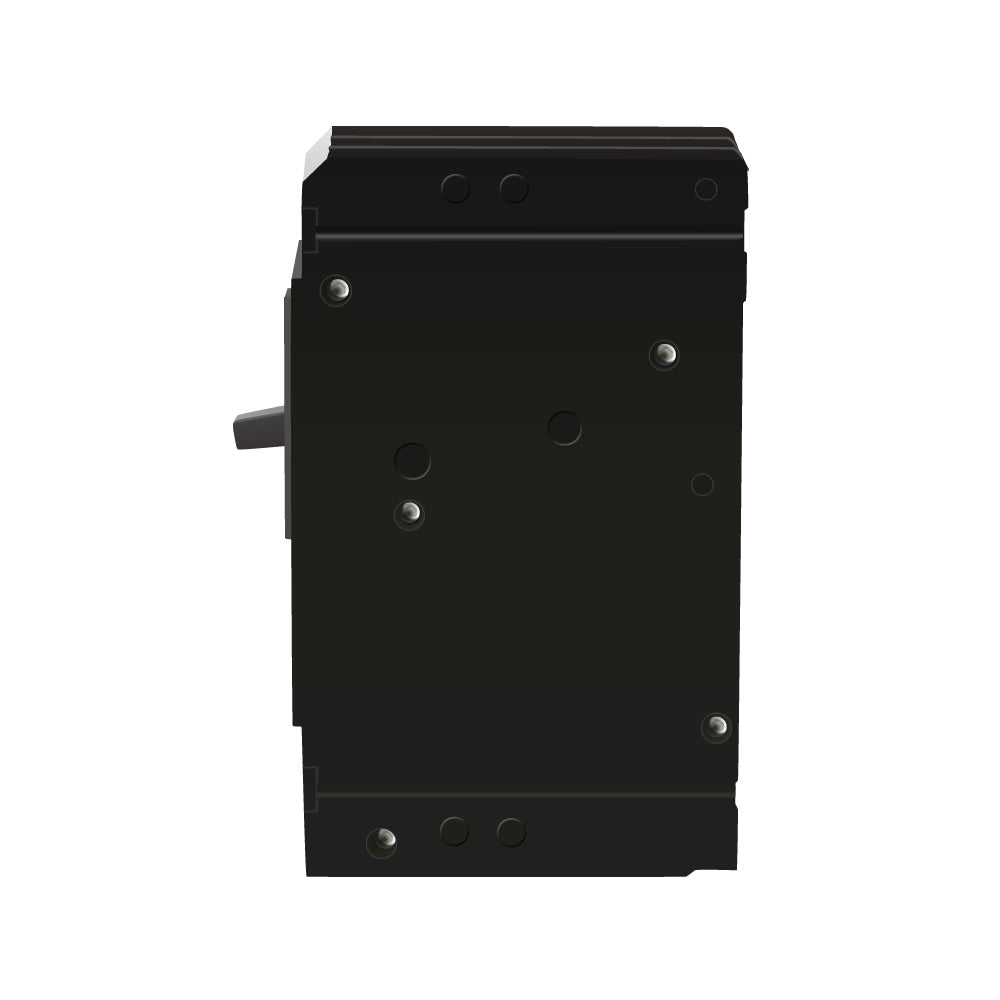

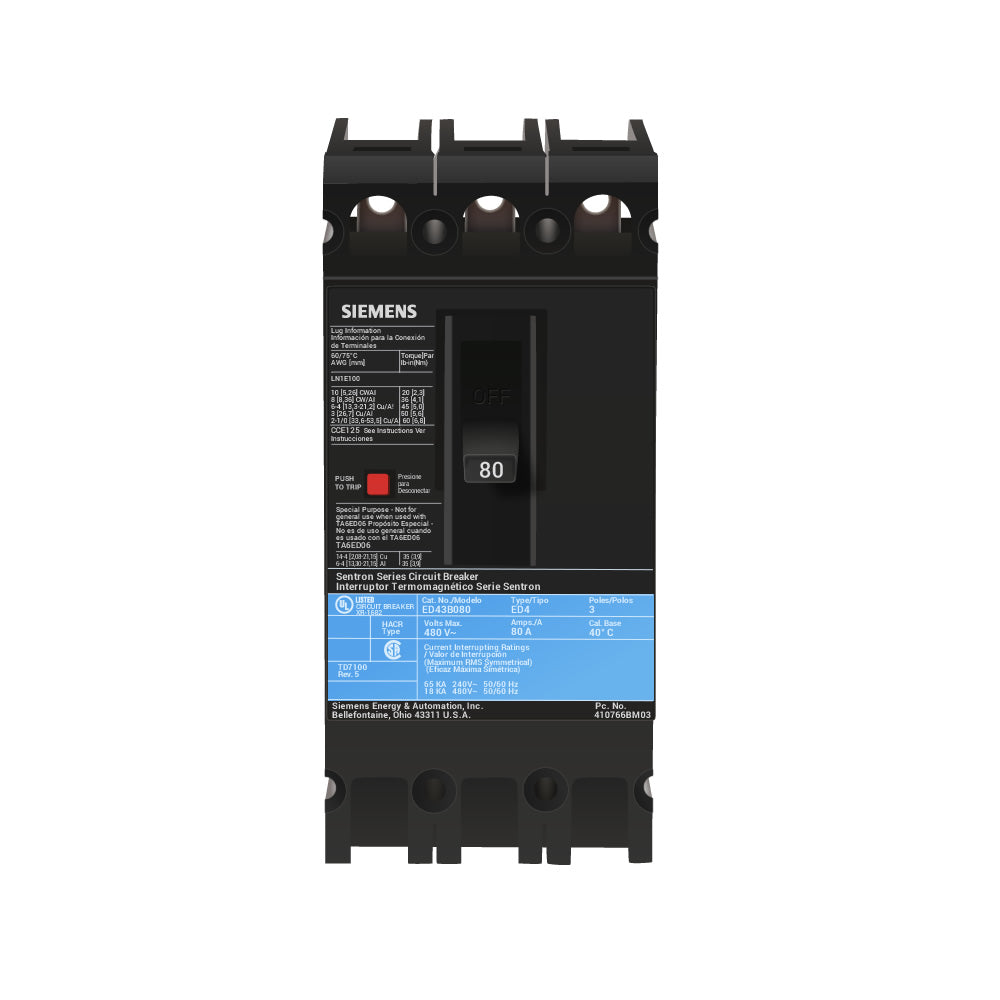

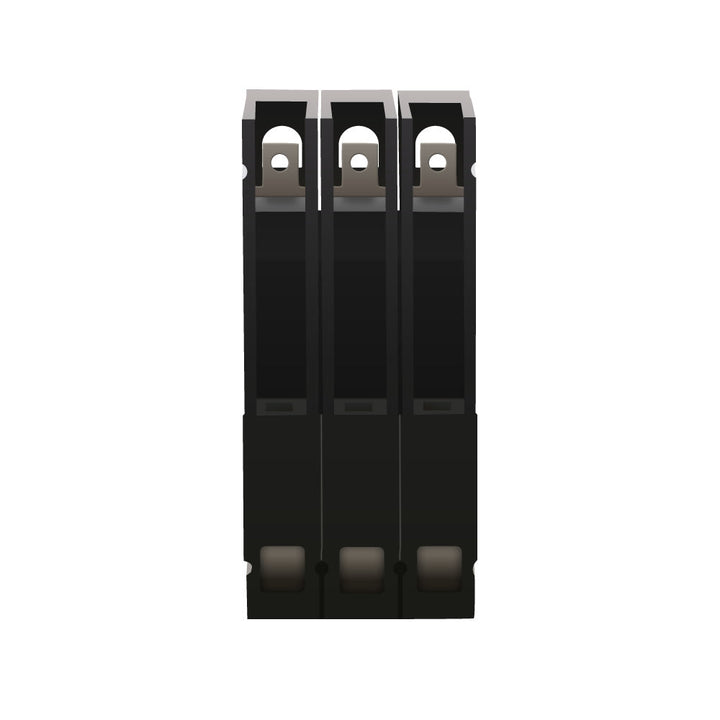

Siemens ED43B080 - Molded Case Circuit Breaker 80A 480V 3P

Price
Regular price $485.64
Regular price $3,215.00 Sale price $485.64
Save $2,729.36
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens ED43B080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features an 80A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame with dimensions of 7.165" x 3.937" x 5.591" (182mm x 100mm x 142mm) and a weight of 3.695 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous protection, is HACR rated and UL listed for safety compliance, and is engineered for installation in SB switchboards and Sentron panelboards using load-side lugs that accept copper or aluminum wire from 10 AWG to 1/0 AWG.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Trip
  • Voltage Rating: 480V AC
  • Current Rating: 80A
  • Frame Size: 125A/ED
  • AIC Rating: 18kA @ 480V
  • Poles: 3
  • Phase Connection: 3-Phase (ABC)
  • Connection: Lug in Panelboard, Load Side Lug
  • Wire Size: 10 AWG to 1/0 AWG (Cu/Al)
  • Dimensions: 7.165" x 3.937" x 5.591" (182mm x 100mm x 142mm)
  • Weight: 3.695 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Protection Functions: Long Time and Instantaneous Trip
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Standards & Certification: HACR Rated, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209466
  • GTIN: 00783643209466
