Siemens ED43B060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 60A current rating and a 480V AC voltage rating, housed within a compact 125A/ED frame measuring 6.693" x 5.906" x 3.954" and weighing 0.309 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous protection, is HACR rated and UL listed, and is constructed for operation in temperatures from -25°C to 70°C. It is engineered for installation in SB switchboards and Sentron panelboards, accepting copper or aluminum conductors from 10 AWG to 1/0 AWG via its load-side lugs.
Key Features & Specifications
Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, Standard
Voltage Rating: 480V AC
Current Rating: 60A
Frame Size: 125A/ED
Poles: 3
AIC Rating: 18kA @ 480V
Protection: Thermal Magnetic (Long Time & Instantaneous Trip)
Connection: Lug In Panelboard, Load Side Lug
Phase Connection: ABC, 3-Phase
Wire Size: 10 AWG to 1/0 AWG (Cu/Al)
Temperature Rating: -25°C to 70°C (-13°F to 158°F)
Dimensions: 6.693" x 5.906" x 3.954"
Weight: 0.309 lb
Standards/Certification: HACR Rated, UL Listed
Panel Type: SB Switchboards, Sentron Panelboards
Family: Sentron Series
Country of Origin: Mexico
Product Identification
UPC: 783643209442
GTIN: 00783643209442
Same-day Shipping Available
Same-day Delivery Availabile
24/7 Customer Support

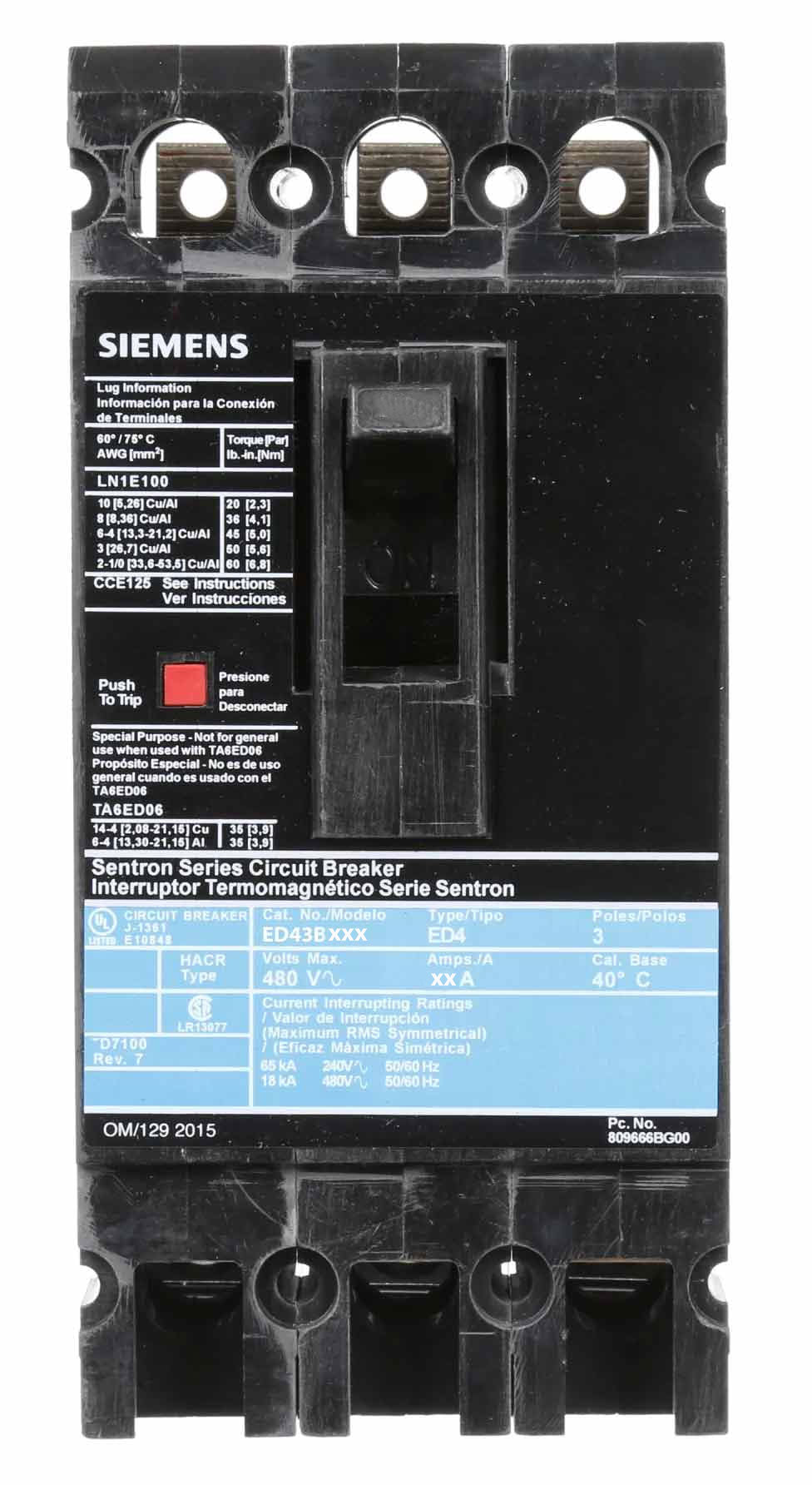

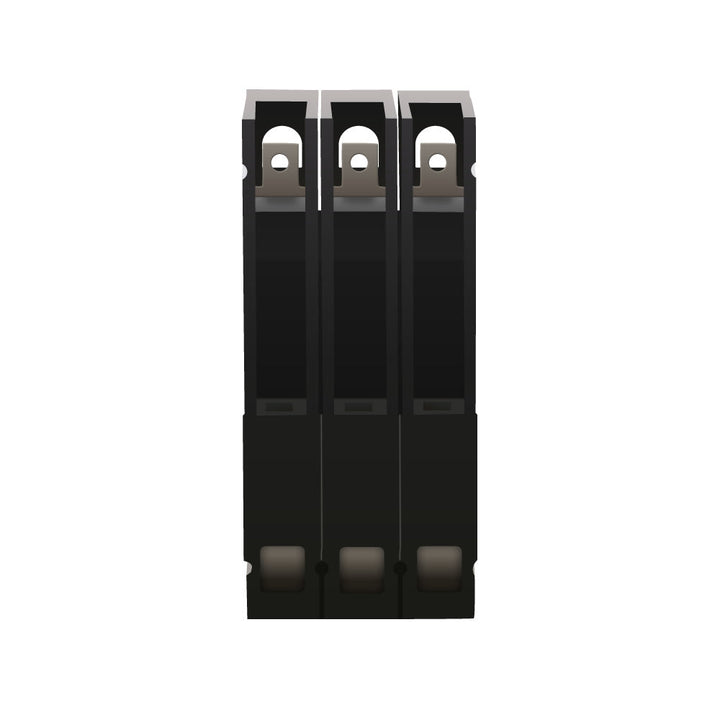

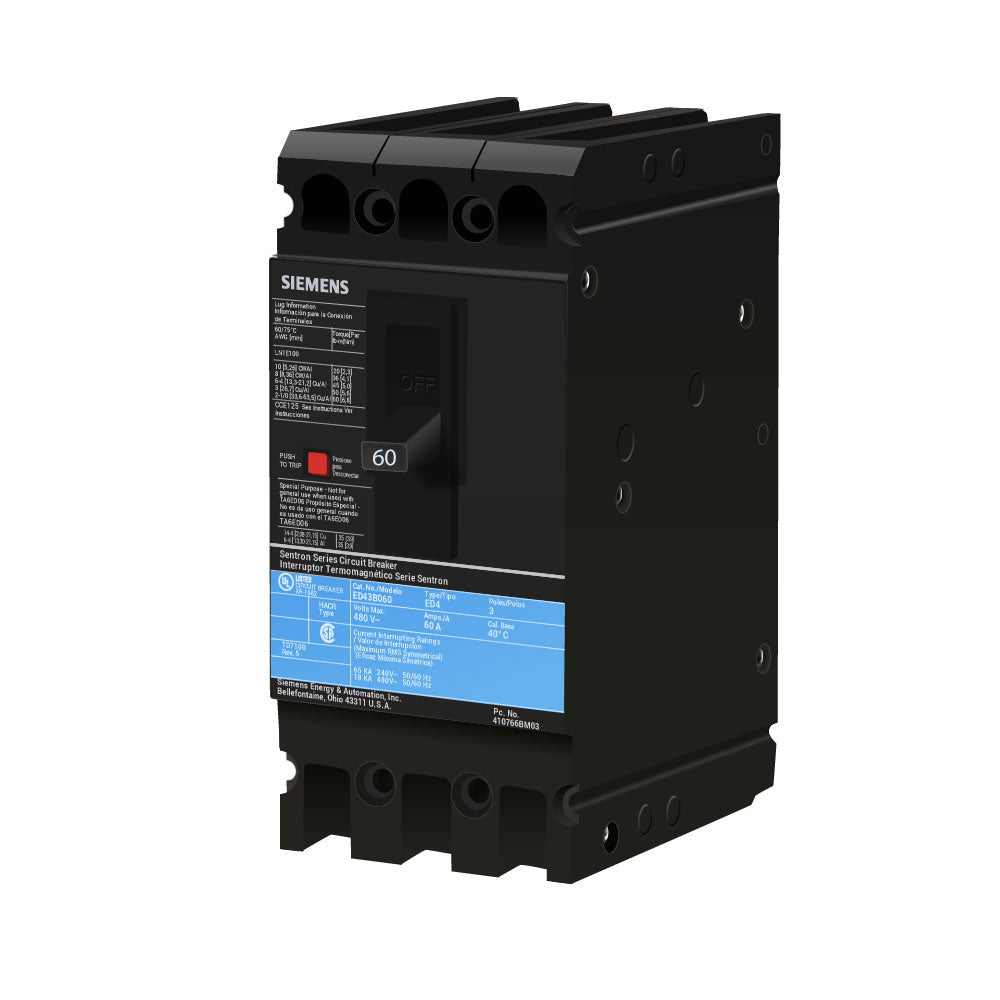

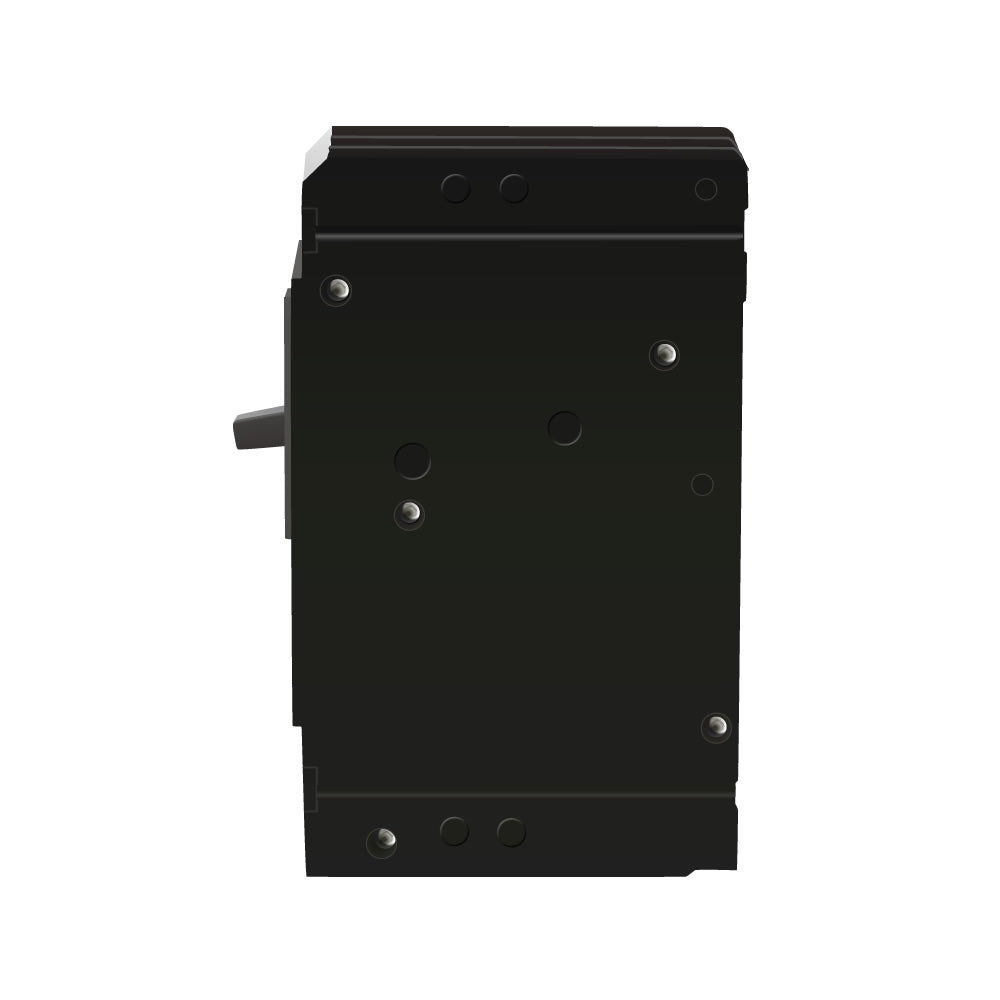

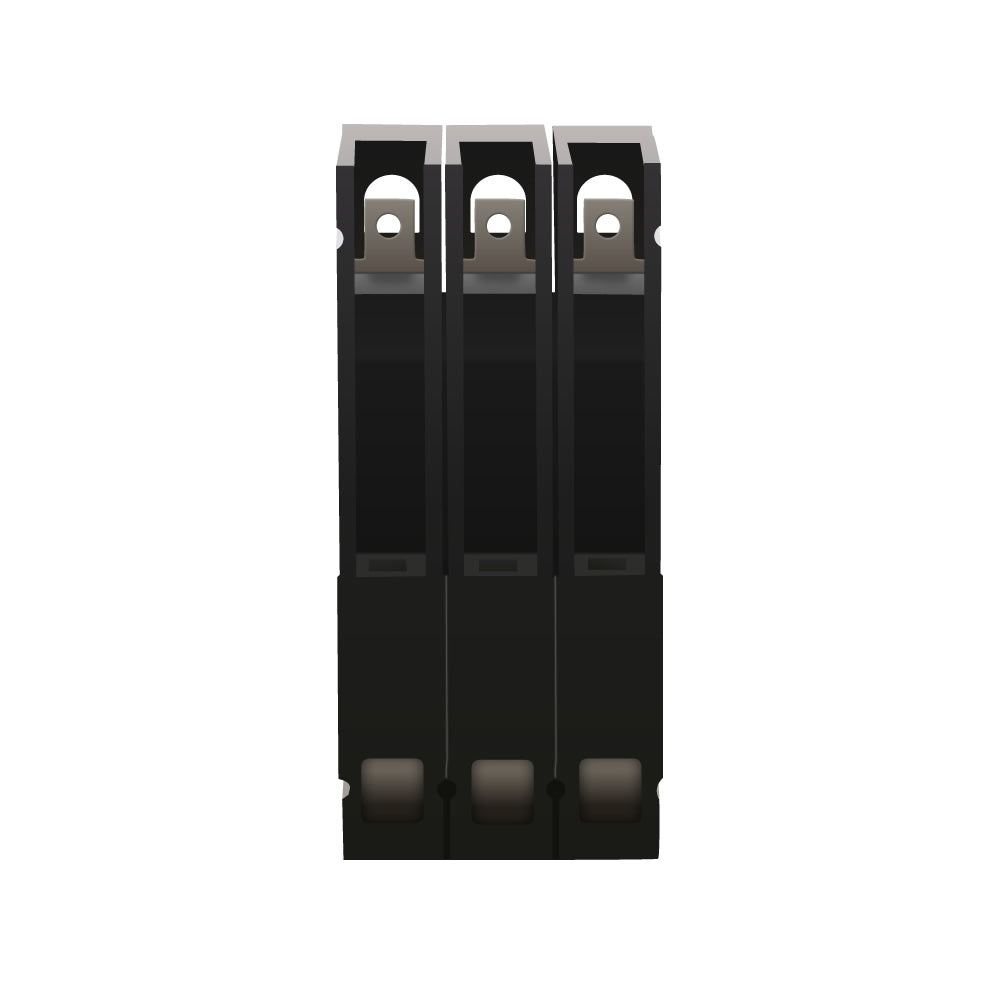

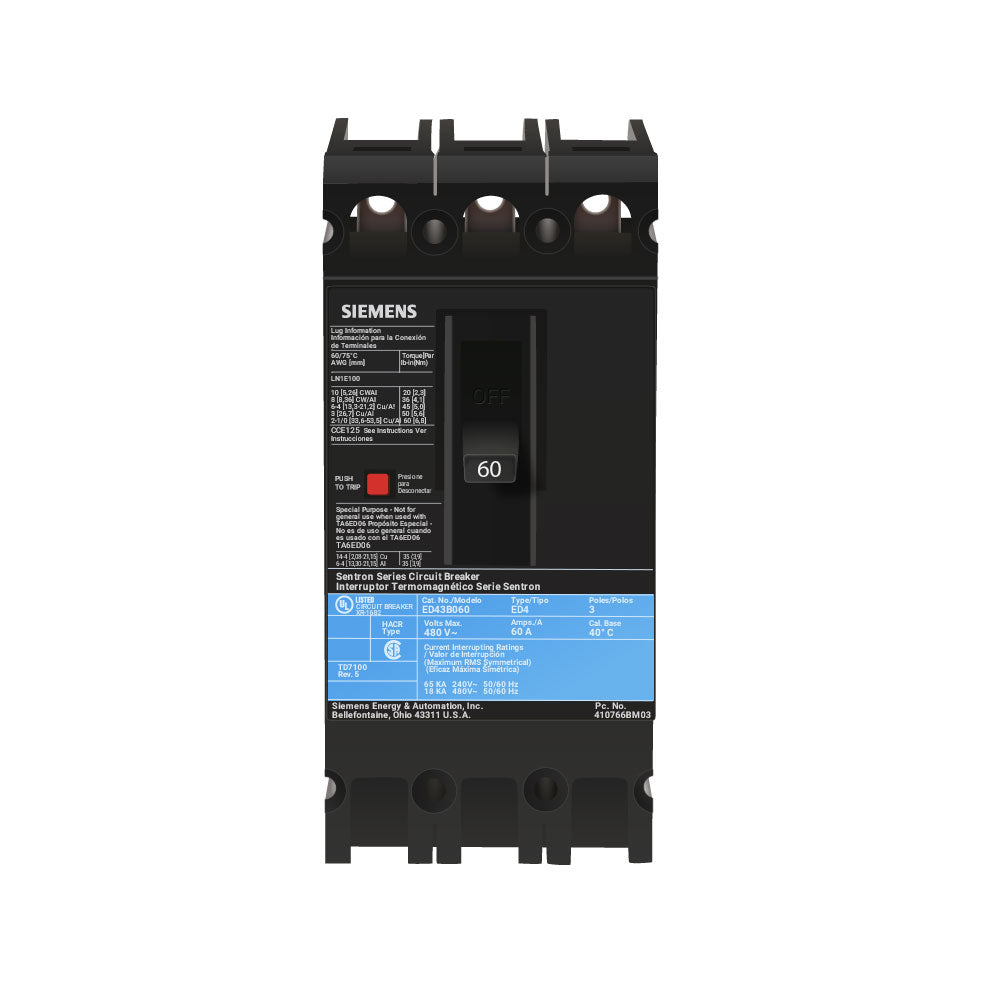

Siemens ED43B060 - Molded Case Circuit Breaker 60A 480V 3P
