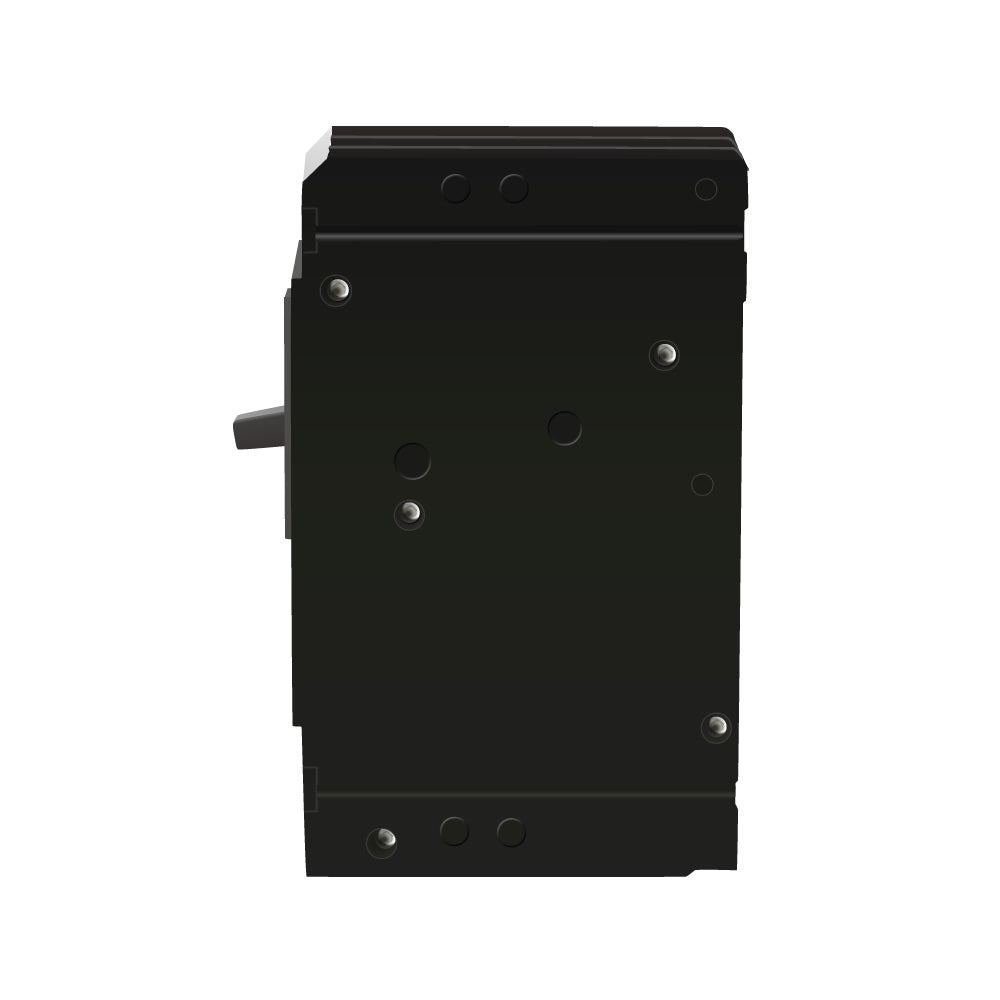

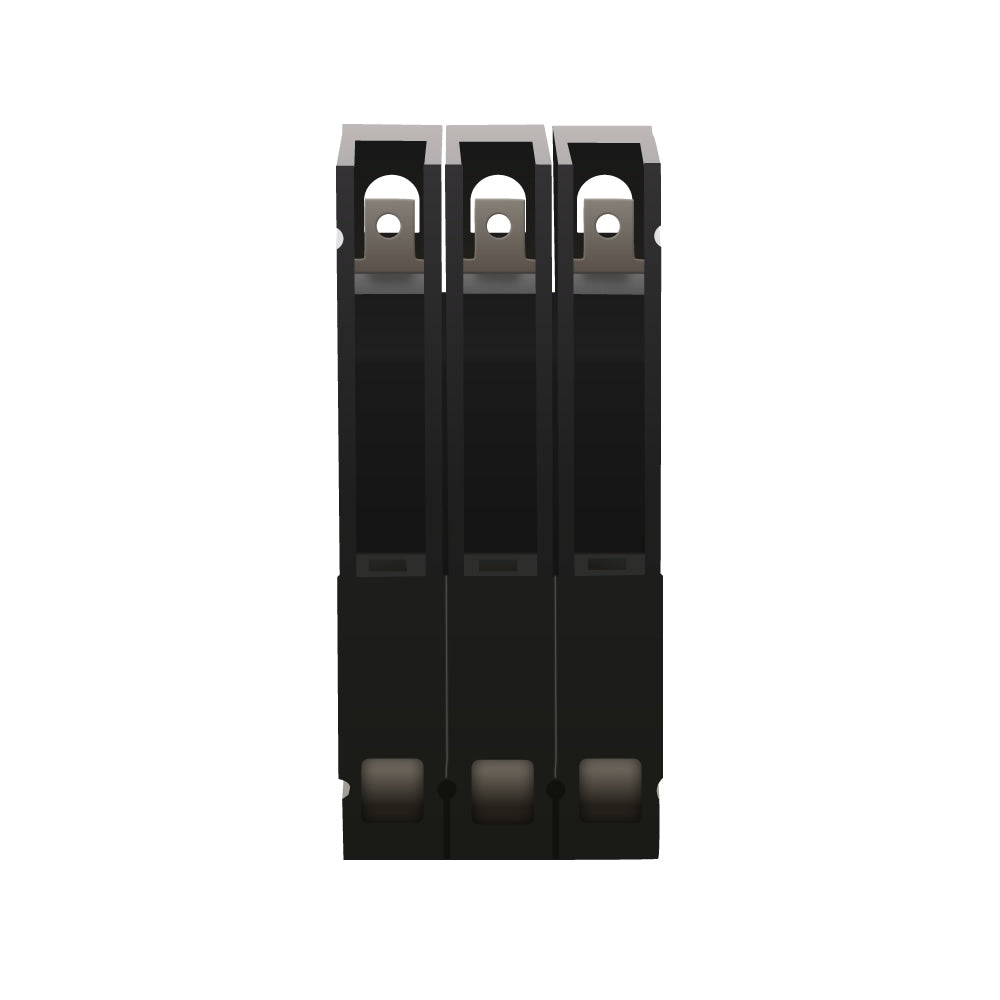

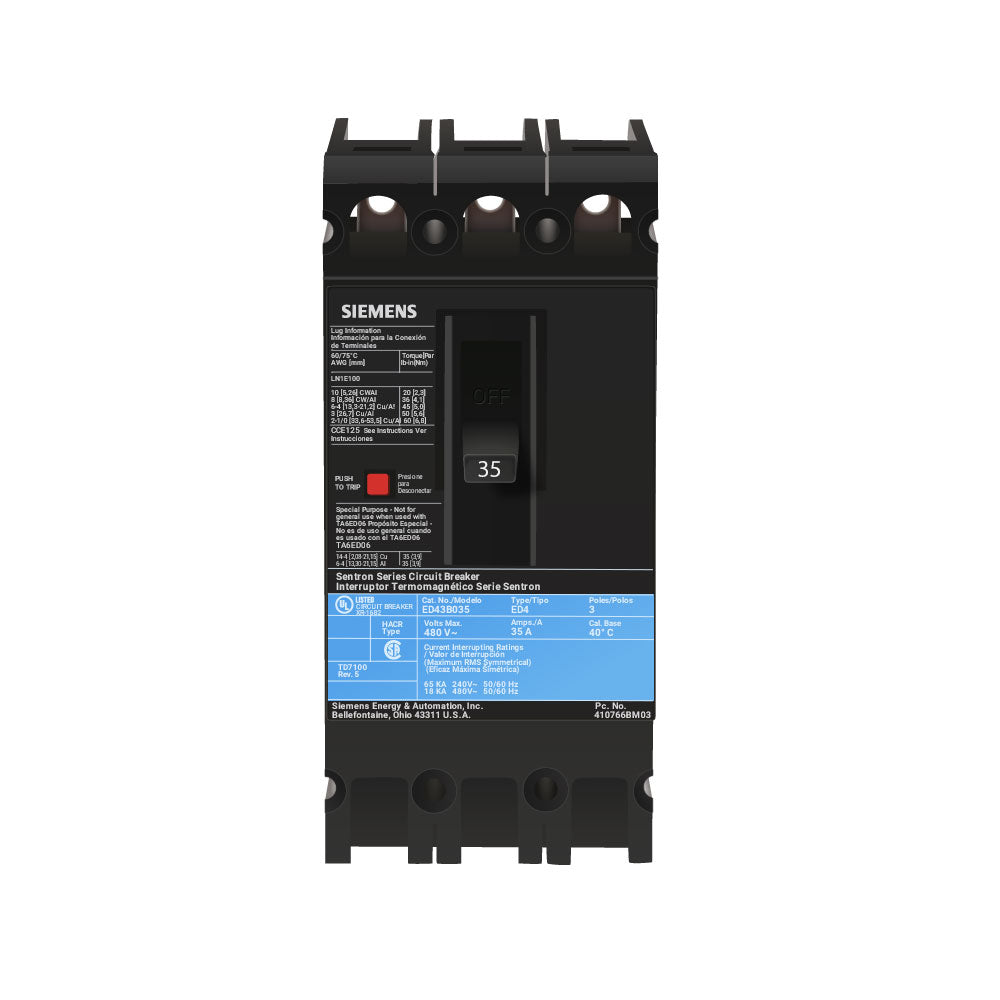

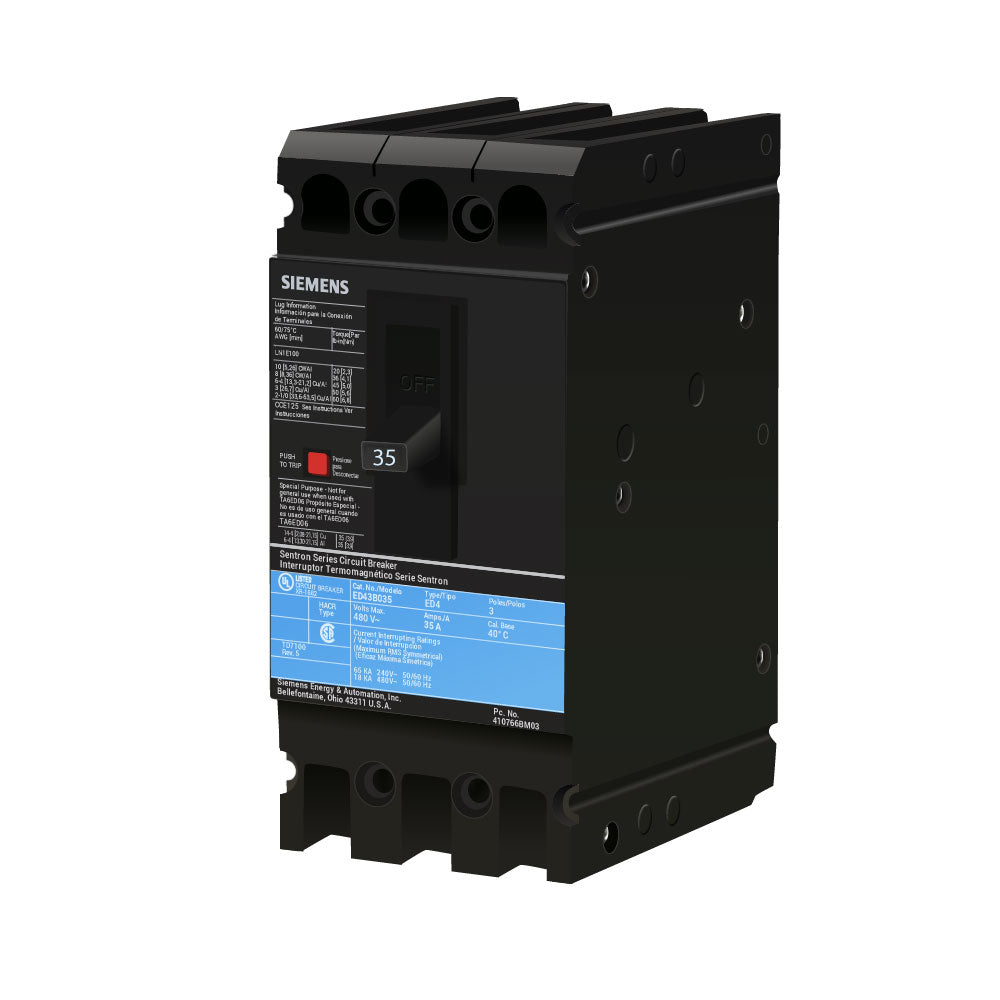

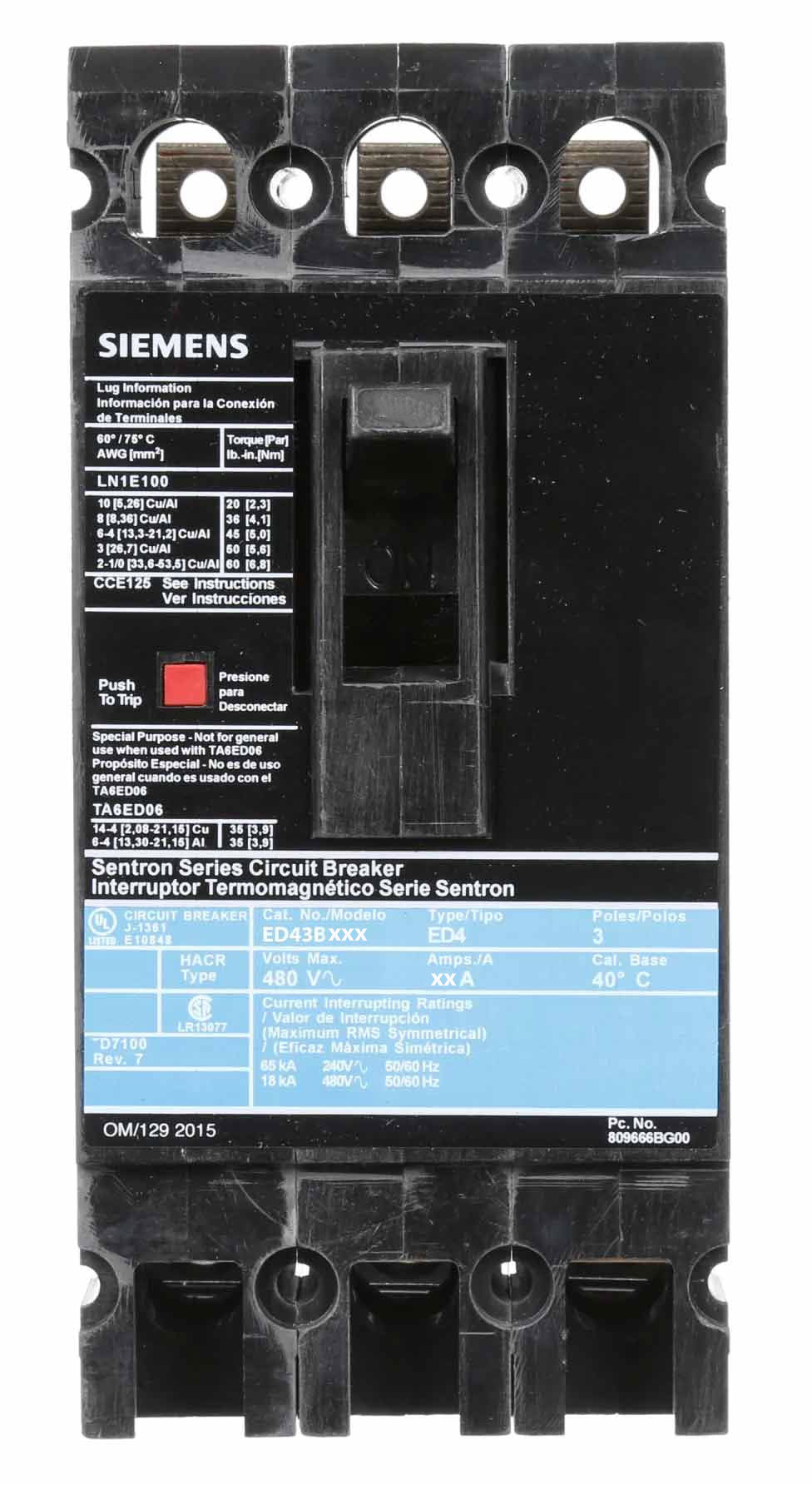

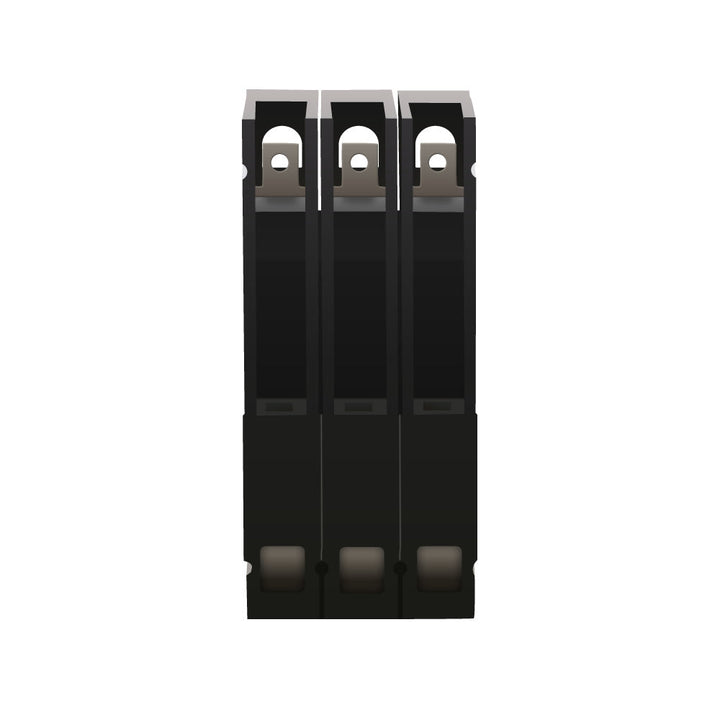

Siemens ED43B035 - Molded Case Circuit Breaker 35A 480V 3P

Price
Regular price $595.76
Regular price $2,734.00 Sale price $595.76
Save $2,138.24
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens ED43B035 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 35A continuous current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 6.693" x 5.906" x 3.946" (170mm x 150mm x 100mm) and weighing 3.869 lb. The breaker is UL Listed and HACR rated, ensuring compliance with industry safety standards for use in commercial and industrial environments. Its thermal-magnetic trip unit provides both long-time and instantaneous (LI) protection, making it suitable for installation in Sentron panelboards and SB switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 18kA at 480V
  • Protection Functions: Long-Time and Instantaneous (LI)
  • Trip Type: Thermal Magnetic
  • Connection: Lug in Panelboard, Load Side Lug
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Phase Connection: ABC
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards/Certification: UL Listed, HACR Rated
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Dimensions: 6.693" x 5.906" x 3.946" (170mm x 150mm x 100mm)
  • Weight: 3.869 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209404
  • GTIN: 00783643209404
