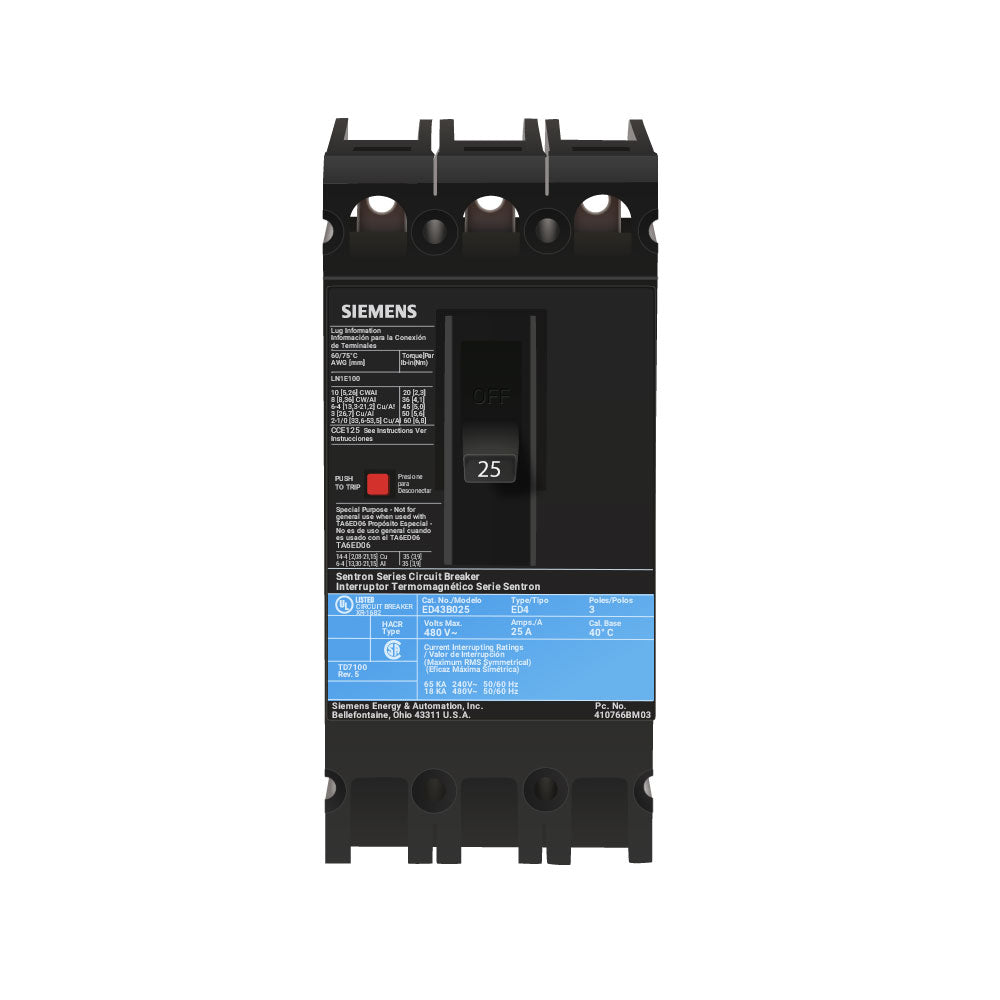

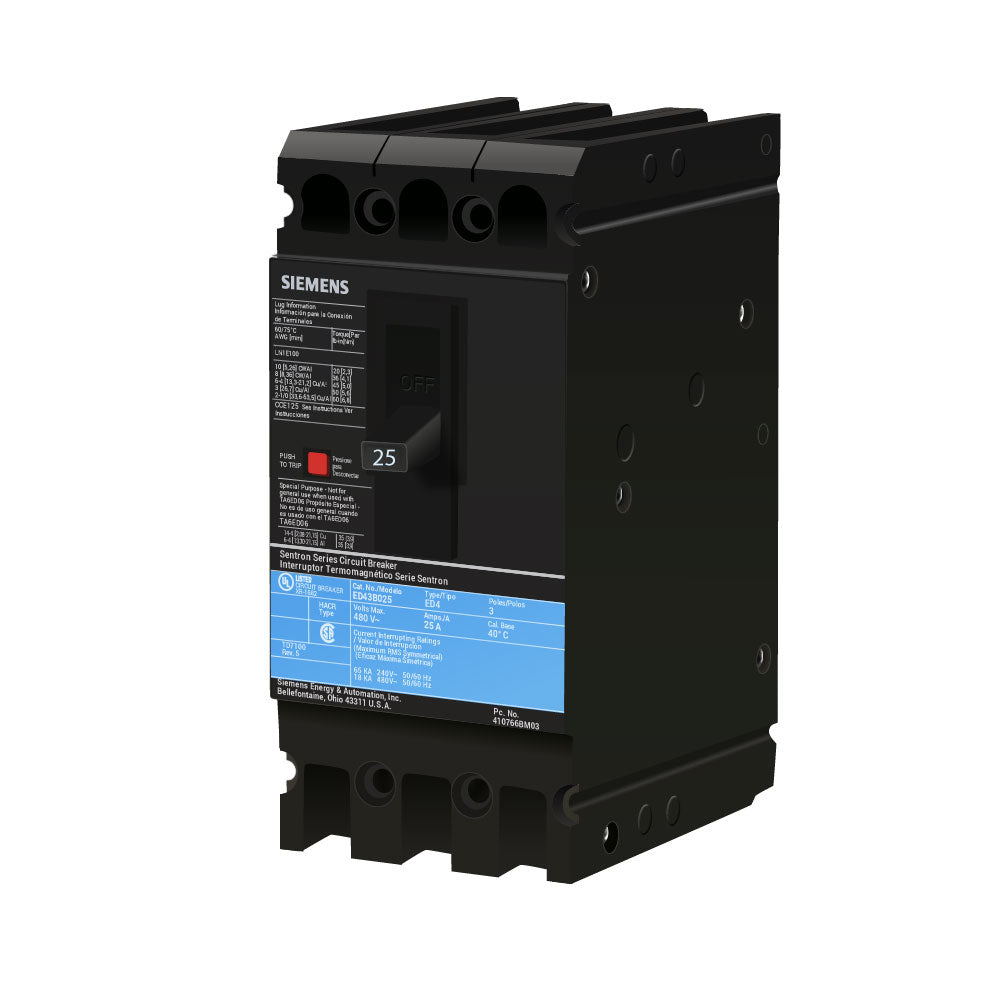

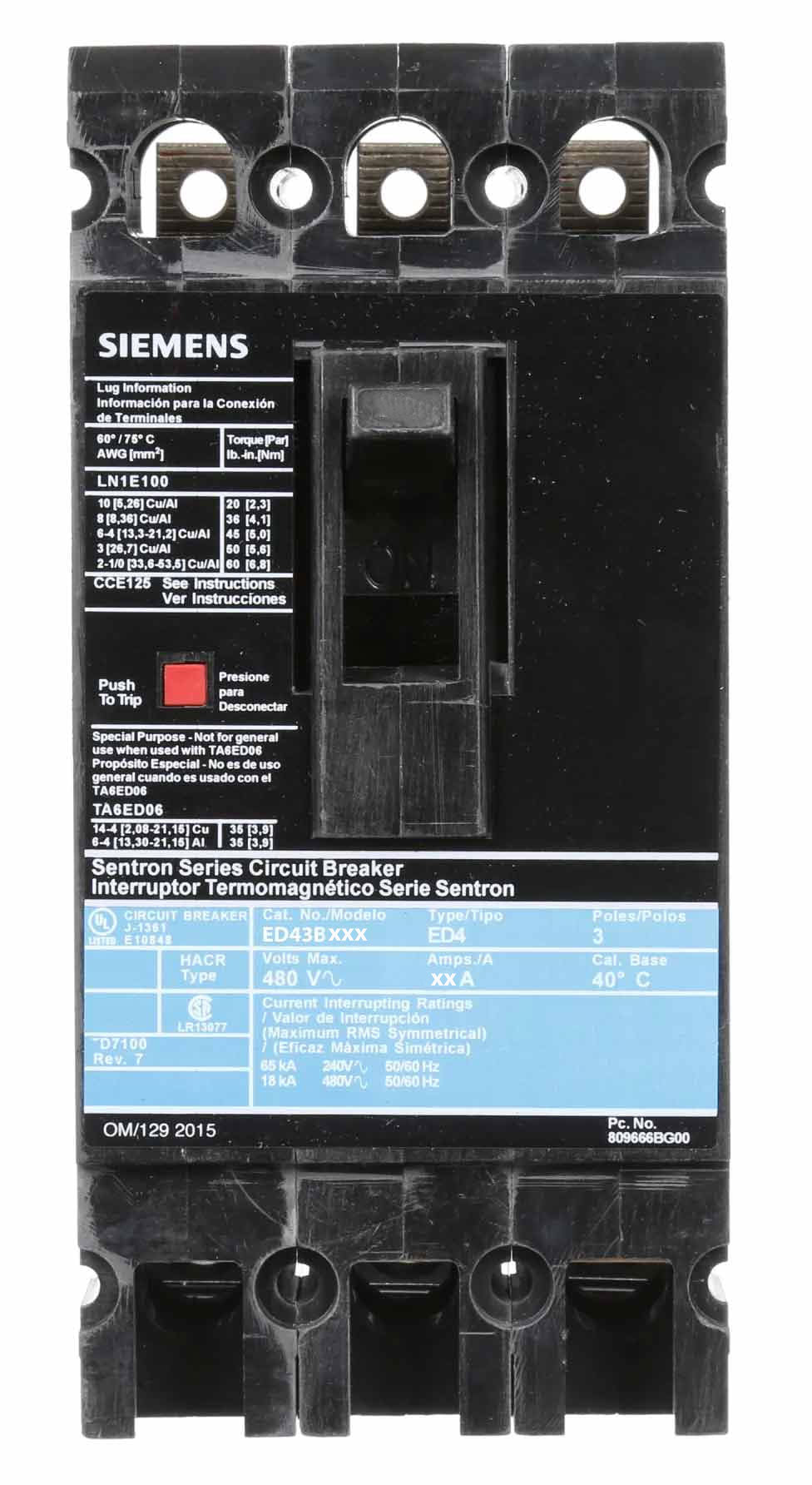

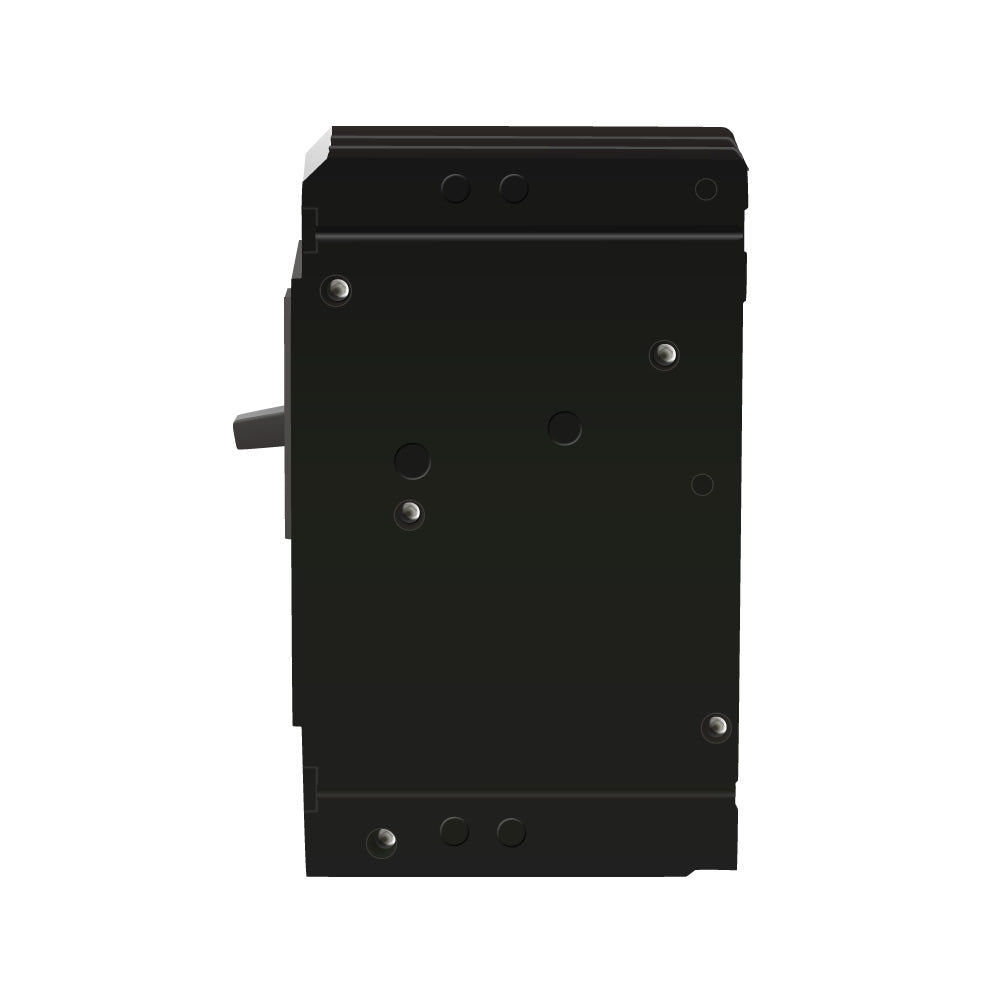

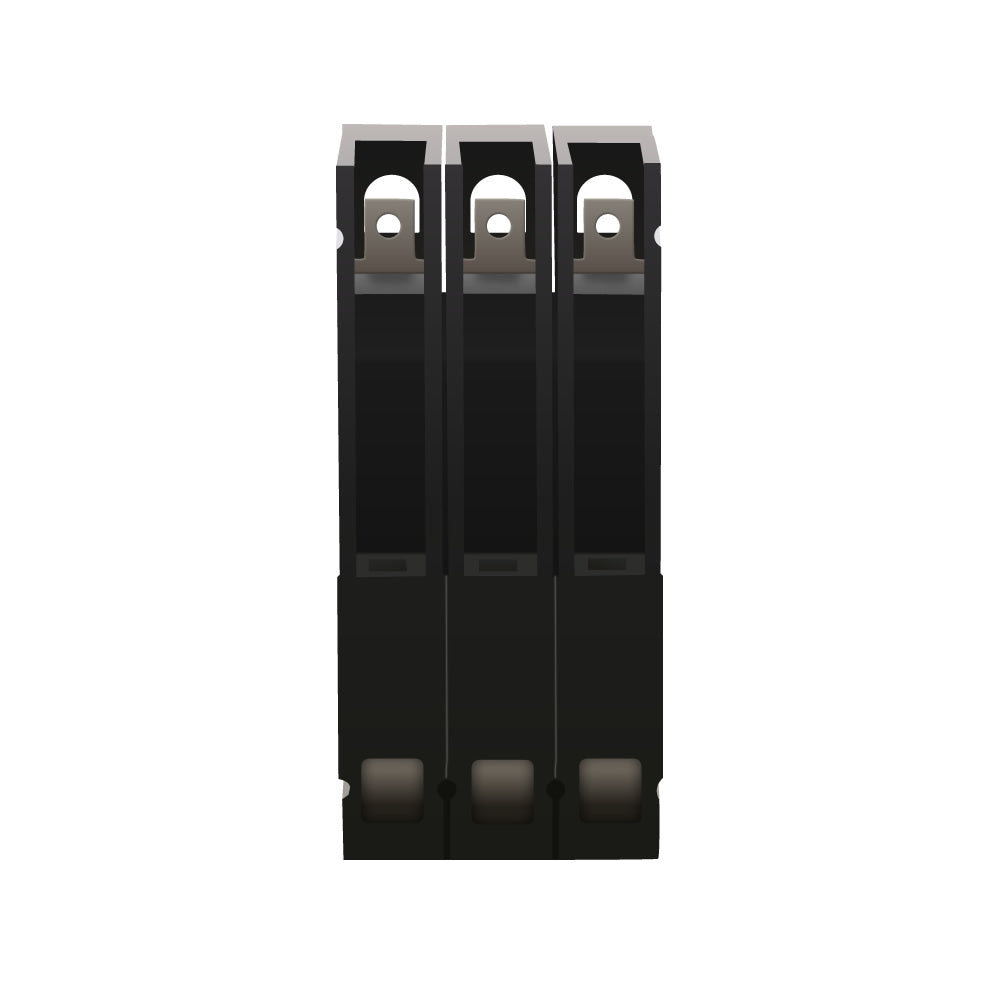

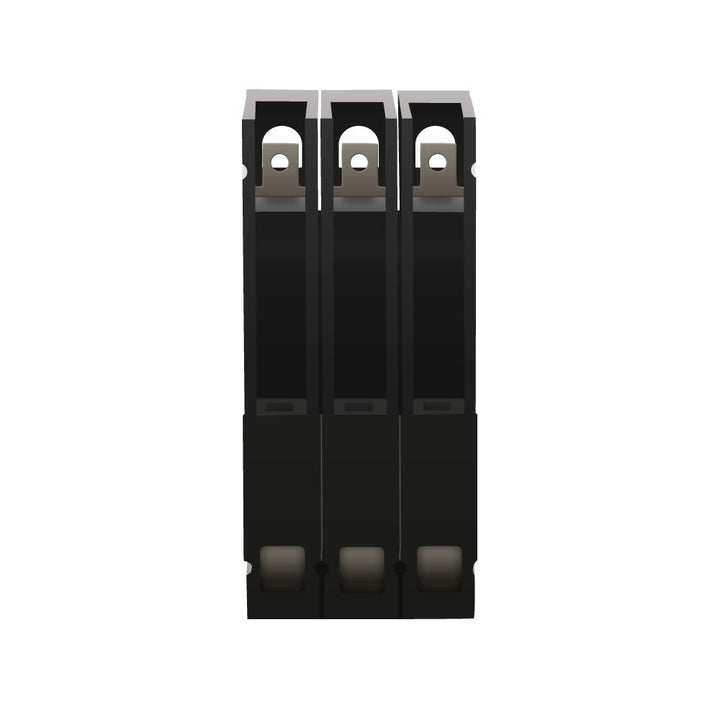

Siemens ED43B025 - Molded Case Circuit Breaker 25A 480V 3P

Price
Regular price $498.60
Regular price $2,734.00 Sale price $498.60
Save $2,235.40
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens ED43B025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 25A current rating and a 480V AC voltage rating, housed within a compact, durable frame measuring 6.693" x 5.906" x 3.942" and weighing 3.688 lb. The breaker is UL Listed and HACR rated, ensuring compliance with industry safety standards for use in commercial and light industrial applications such as SB switchboards and Sentron panelboards.

Key Features & Specifications
  • Type: Sentron Series, ED frame, thermal-magnetic protection with long-time and instantaneous trip functions
  • Voltage Rating: 480V AC
  • Current Rating: 25A
  • Dimensions: 6.693" H x 5.906" W x 3.942" D
  • Standards: UL Listed, HACR Rated
  • Applications: SB Switchboards, Sentron Panelboards
  • Switch Type: Standard Circuit Breaker
  • Configuration: Lug in Panelboard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 18kA @ 480V
  • Connection: Load Side Lug
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 125A/ED
  • Breaker Type: Standard
  • Wire Size: AWG 14 to AWG 10 (Cu), AWG 12 to AWG 10 (Al)
  • Certification: HACR Rated, UL Listed
  • Phase Connection: ABC
  • MCM Size: Min. 10 AWG, Max. 1/0 AWG
  • Terminal Connection: Load Side Lug
  • Panel Type: SB Switchboards, Sentron Panelboards


Product Identification
  • UPC: 783643209381
  • GTIN: 00783643209381
