Siemens ED42B035 - Molded Case Breaker 35A 480V 2-Pole
Siemens ED42B035 - Molded Case Breaker 35A 480V 2-Pole

Siemens ED42B035 - Molded Case Breaker 35A 480V 2-Pole

Siemens
Price
Save $832.81
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

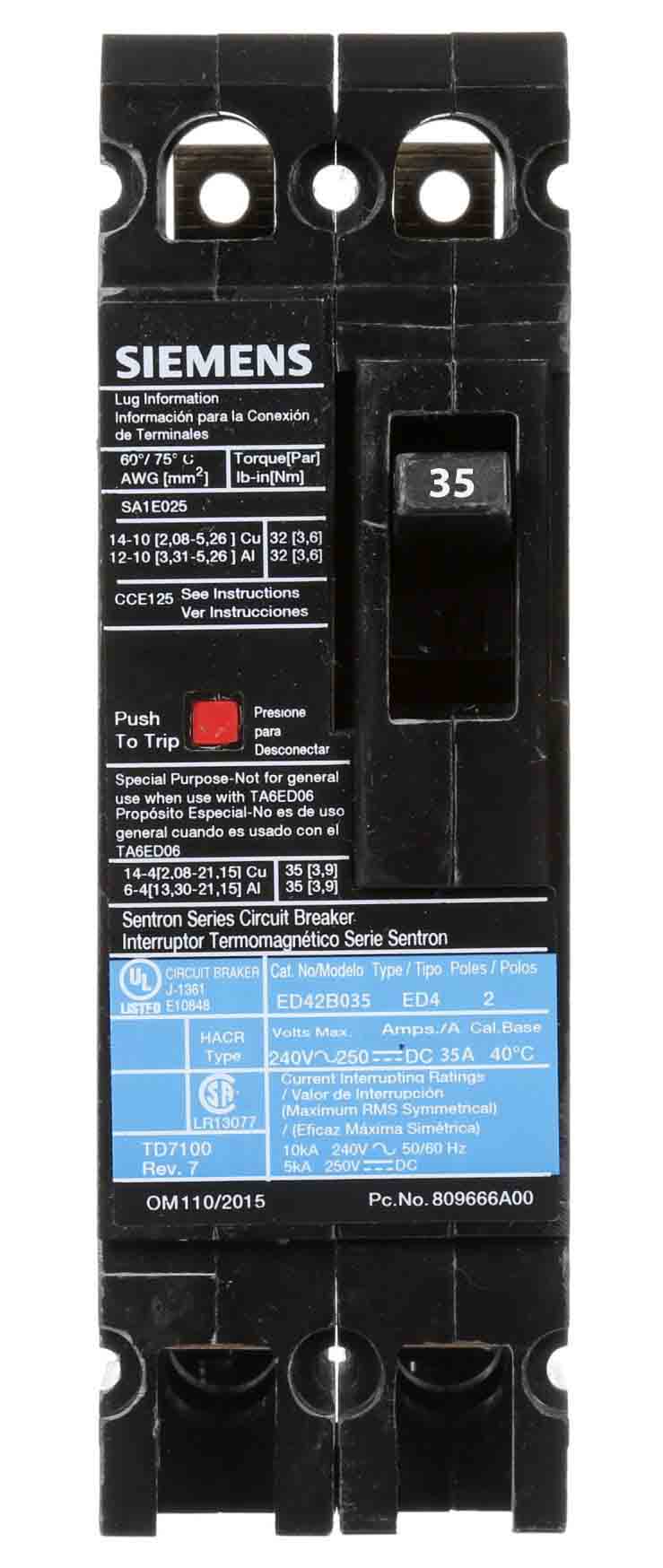

Siemens ED42B035 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 35A current rating and a 480V AC voltage rating, housed within a compact ED frame measuring 6.693" x 5.906" x 2.764" and weighing 0.179 lb. The breaker utilizes a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and is certified to UL and IEC standards for safety and performance. Its 18kA interrupting rating at 480V, bolt-on connection for 10 to 1/0 AWG wire, and operational temperature range of -25°C to 70°C make it suitable for panelboards, switchboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 480V AC
  • Current Rating: 35A
  • Dimensions: 6.693" H x 5.906" W x 2.764" D (170mm x 150mm x 70.2mm)
  • Standards: UL Listed, IEC Certified
  • Applications: Panelboards, Switchboards, Motor Control Centers, Industrial Distribution
  • Switch Type: Circuit Breaker
  • Configuration: Bolt-On
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 18kA @ 480V
  • Connection: Bolt-On
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: ED Frame
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Certification: UL Listed, IEC Certified
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209251
  • GTIN: 00783643209251
