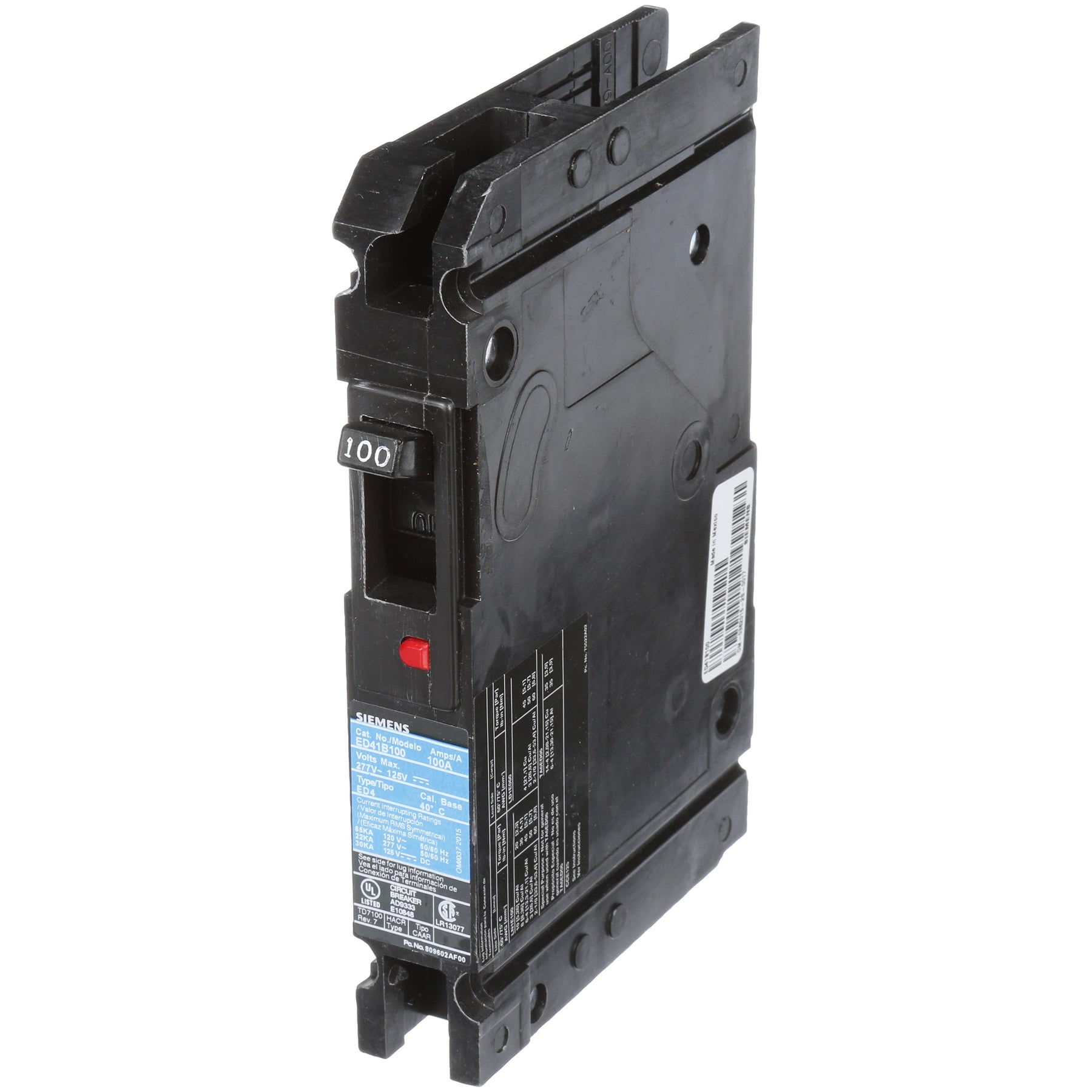

Siemens ED41B100 - Molded Case Circuit Breaker 100A 1P (65kA AIC)
Siemens ED41B100 - Molded Case Circuit Breaker 100A 1P (65kA AIC)

Siemens ED41B100 - Molded Case Circuit Breaker 100A 1P (65kA AIC)

Siemens
Price
Save $378.07
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens ED41B100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in single-phase electrical systems. It features a 100A current rating and a 120V AC voltage rating, housed within a compact 125A/ED frame with dimensions of 0.787" x 4.724" x 5.930" (20mm x 120mm x 150.6mm) and a weight of 1.1 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is certified to UL and IEC standards, and operates within a temperature range of -25°C to 70°C. It is engineered for installation in Siemens SB switchboards and Sentron panelboards, offering a 65kA interrupting capacity at 120V and accepting wire sizes from 6 AWG to 1/0 AWG via its load-side lug connection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 100A
  • Frame Size: 125A/ED
  • Poles: 1
  • AIC Rating: 65kA @ 120V
  • Functions: LI (Long-Time and Instantaneous)
  • Connection: Lug In Panelboard, Load Side Lug
  • Phase: 1, Phase Connection: Any
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Standards & Certification: UL Listed, IEC Certified
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 0.787" x 4.724" x 5.930" (20mm x 120mm x 150.6mm)
  • Weight: 1.1 lb
  • MCM/Wire Size: Min. 6 AWG, Max. 1/0 AWG
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209206
  • GTIN: 00783643209206
