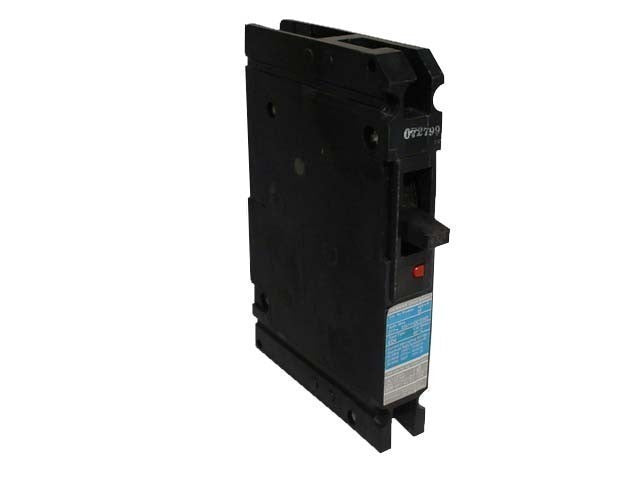

Siemens ED41B090 - Molded Case Circuit Breaker 90A 1P
Siemens ED41B090 - Molded Case Circuit Breaker 90A 1P

Siemens ED41B090 - Molded Case Circuit Breaker 90A 1P

Siemens
Price
Save $-424.69
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Siemens ED41B090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 90A current rating and a 120V AC voltage rating, housed within a compact 125A/ED frame with dimensions of 0.787" x 4.724" x 5.928" (20mm x 120mm x 150.6mm). The breaker is constructed for compliance with IEC and UL standards and operates within a temperature range of -25°C to 70°C. Its typical applications include integration into Siemens SB switchboards and Sentron panelboards for branch circuit protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 90A
  • Frame Size: 125A/ED
  • AIC Rating: 65kA at 120V
  • Poles: 1
  • Phase: 1
  • Functions: LI (Long-Time and Instantaneous)
  • Connection: Lug In Panelboard, Load Side Lug Terminal
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Phase Connection: Any
  • Breaker Type: Standard
  • Standards: IEC Certified, UL Listed
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 0.787 in x 4.724 in x 5.928 in (20 mm x 120 mm x 150.6 mm)
  • Weight: 1.1 lb
  • MCM Size: Min. Wire Size 6 AWG, Max. Wire Size 1/0 AWG
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209190
  • GTIN: 00783643209190
