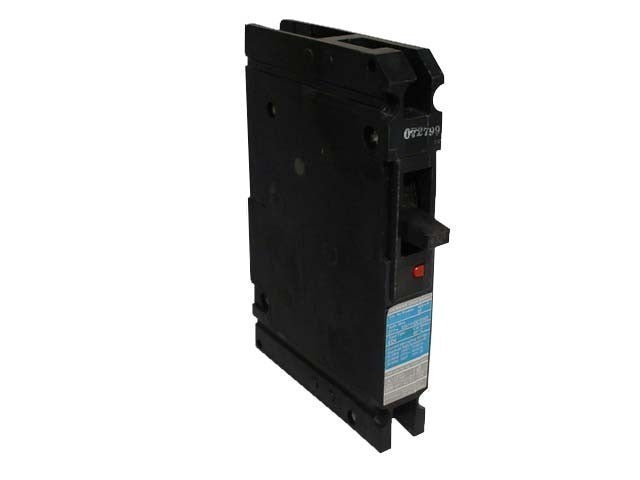

Siemens ED41B070 - Molded Case Circuit Breaker 70A 1P (65kA AIC)
Siemens ED41B070 - Molded Case Circuit Breaker 70A 1P (65kA AIC)

Siemens ED41B070 - Molded Case Circuit Breaker 70A 1P (65kA AIC)

Siemens
Price
Save $57.85
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens ED41B070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 70A current rating and a 120V AC voltage rating, housed within a compact, durable frame measuring 0.787" x 4.724" x 5.924" (20mm x 120mm x 150.5mm) and weighing 1.1 lb. The breaker is UL Listed and IEC Certified, ensuring compliance with key industry standards for safety and performance. Its thermal-magnetic protection with Long-time and Instantaneous (LI) tripping functions makes it suitable for installation in Sentron panelboards and SB switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 70A
  • Frame Size: 125A/ED
  • AIC Rating: 65kA at 120V
  • Poles: 1
  • Phase: Single
  • Phase Connection: Any
  • Connection: Lug in Panelboard, Load Side Lug
  • Functions: LI (Long-time and Instantaneous)
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • MCM Size / Wire Range: 6 AWG to 1/0 AWG
  • Dimensions: 0.787" x 4.724" x 5.924" (20mm x 120mm x 150.5mm)
  • Weight: 1.1 lb
  • Standards & Certification: UL Listed, IEC Certified
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209176
  • GTIN: 00783643209176
