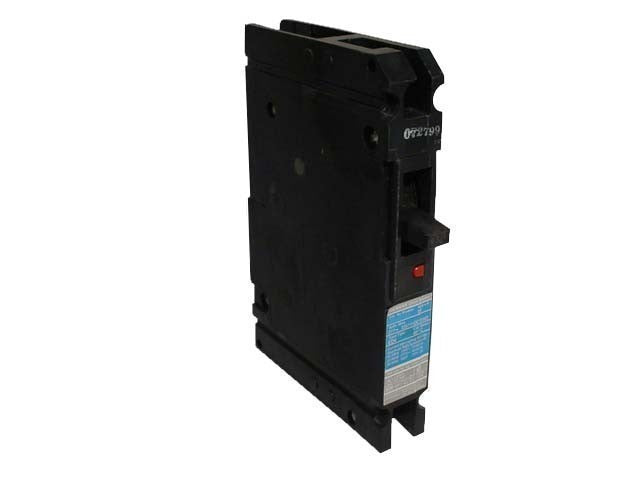

Siemens ED41B040 - Molded Case Breaker 40A 1P (65kA AIC)
Siemens ED41B040 - Molded Case Breaker 40A 1P (65kA AIC)

Siemens ED41B040 - Molded Case Breaker 40A 1P (65kA AIC)

Siemens
Price
Save $516.45
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED41B040 is a molded case circuit breaker designed for reliable overcurrent protection in single-phase electrical systems. It features a 40A current rating and a 120V AC voltage rating, housed within a compact 125A/ED frame measuring 0.787" x 4.724" x 5.916" (20mm x 120mm x 150mm) and weighing 0.851 lb. The breaker provides thermal-magnetic protection with long-time and instantaneous (LI) trip functions, ensuring compliance with IEC and UL standards for safety and interoperability. Its 65kA interrupting rating at 120V and a wide operating temperature range of -25°C to 70°C make it suitable for installation in Sentron panelboards and SB switchboards, accommodating copper or aluminum conductors from AWG 10 to 4 via its load-side lug connection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 120V AC
  • Current Rating: 40A
  • Dimensions: 0.787" W x 4.724" H x 5.916" D (20mm x 120mm x 150mm)
  • Standards: IEC Certified, UL Listed
  • Applications: SB Switchboards, Sentron Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Coil Voltage Maximum: Not Applicable
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: Not Specified
  • Phase: 1
  • Voltage: 120V AC
  • Amperage: 40A
  • AIC rating: 65kA @ 120V
  • Connection: Lug In Panelboard, Load Side Lug
  • Poles: 1
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: 125A/ED
  • Trip Type: Thermal-Magnetic
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Control Voltage Minimum: Not Applicable
  • Control Voltage Maximum: Not Applicable
  • MCM Size: Min. Wire Size 6 AWG, Max. Wire Size 1/0 AWG
  • Metal Type: Not Specified
  • Panel Style: Not Specified
  • Bus Type: Not Specified
  • Fuse Class: Not Applicable
  • Insulation Temperature: Not Specified
  • Inductance: Not Specified
  • Impedance: Not Specified
  • Barrels: Not Applicable
  • Class Rating: Not Specified
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Class: Not Specified
  • Mounting: Panel Mount
  • Hz: 50/60 Hz (Typical for Rating)
  • Coil Material: Not Applicable
  • Horse Power: Not Specified
  • Aux Contacts: None
  • CPT: Not Applicable
  • Full Load Amps: Not Specified
  • Dist Voltage: Not Specified
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: Not Specified
  • Full Load Amp Minimum: Not Specified
  • Enclosure: Molded Case
  • Relay Style: Not Applicable
  • Coil Voltage Minimum: Not Applicable
  • Wire: Copper or Aluminum
  • Amperage Maximum: 40A
  • Amperage Minimum: Not Specified
  • Nema Rating: Not Specified
  • Switch Style: Not Specified
  • Wire Size: AWG 10 to AWG 4
  • Certification: IEC Certified, UL Listed
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Load Side Lug
  • Frequency Rating: 50/60 Hz (Implied by Standards)
  • Phase Connection: Any
  • Standards: IEC, UL
  • Compatible Frames: 125A/ED
  • Installation Type: Panelboard
  • Item QTY: 1
  • Nema Starter Size: Not Applicable
  • Breaker Frame: 125A/ED
  • Current Rating: 40A
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 783643209138
  • GTIN: 00783643209138
