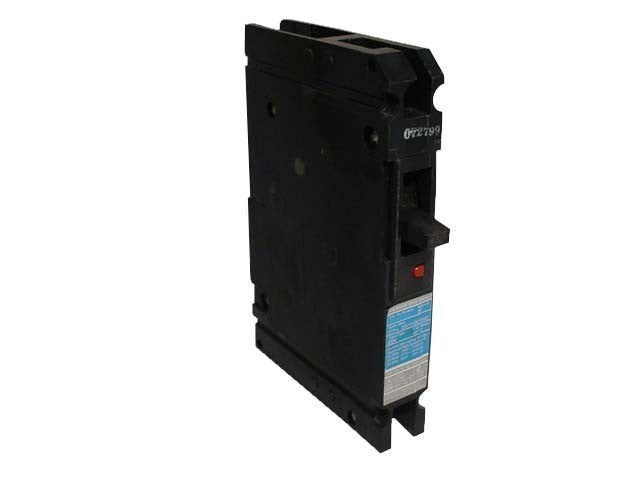

Siemens ED41B030 - Molded Case Circuit Breaker, 30A 1-Pole
Siemens ED41B030 - Molded Case Circuit Breaker, 30A 1-Pole

Siemens ED41B030 - Molded Case Circuit Breaker, 30A 1-Pole

Siemens
Price
Save $514.05
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED41B030 is a molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. It features a 30A current rating and a 120V AC voltage rating, housed within a compact 125A/ED frame with dimensions of 0.787" x 4.724" x 5.912" (20mm x 120mm x 150mm) and a weight of 1.281 lb. The breaker is constructed for robust performance with a thermal magnetic trip unit providing Long-Time and Instantaneous (LI) protection, ensuring compliance with HACR and UL standards. It is engineered for installation in SB switchboards and Sentron panelboards, offering a 65kA interrupting rating at 120V and reliable operation across a temperature range of -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal Magnetic Trip
  • Voltage Rating: 120V AC
  • Current Rating: 30A
  • Frame Size: 125A/ED
  • Poles: 1
  • AIC Rating: 65kA @ 120V
  • Protection Functions: LI (Long-Time & Instantaneous)
  • Connection: Lug In Panelboard, Load Side Lug
  • Wire Size: 10 AWG to 4 AWG (Cu/AL)
  • Phase: 1, Phase Connection: Any
  • Dimensions: 0.787" x 4.724" x 5.912" (20mm x 120mm x 150mm)
  • Weight: 1.281 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards/Certification: HACR Rated, UL Listed
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209114
  • GTIN: 00783643209114
