Cutler Hammer
Price
Save $1,230.89
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

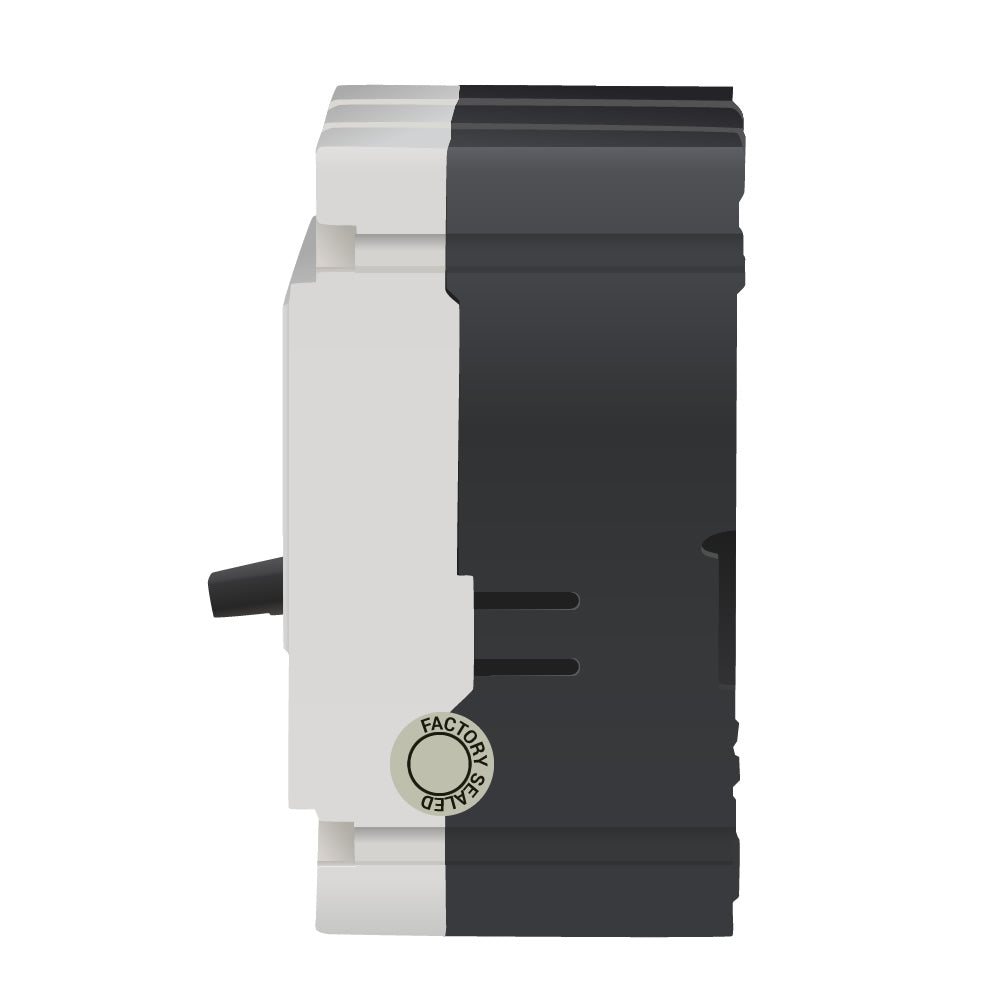

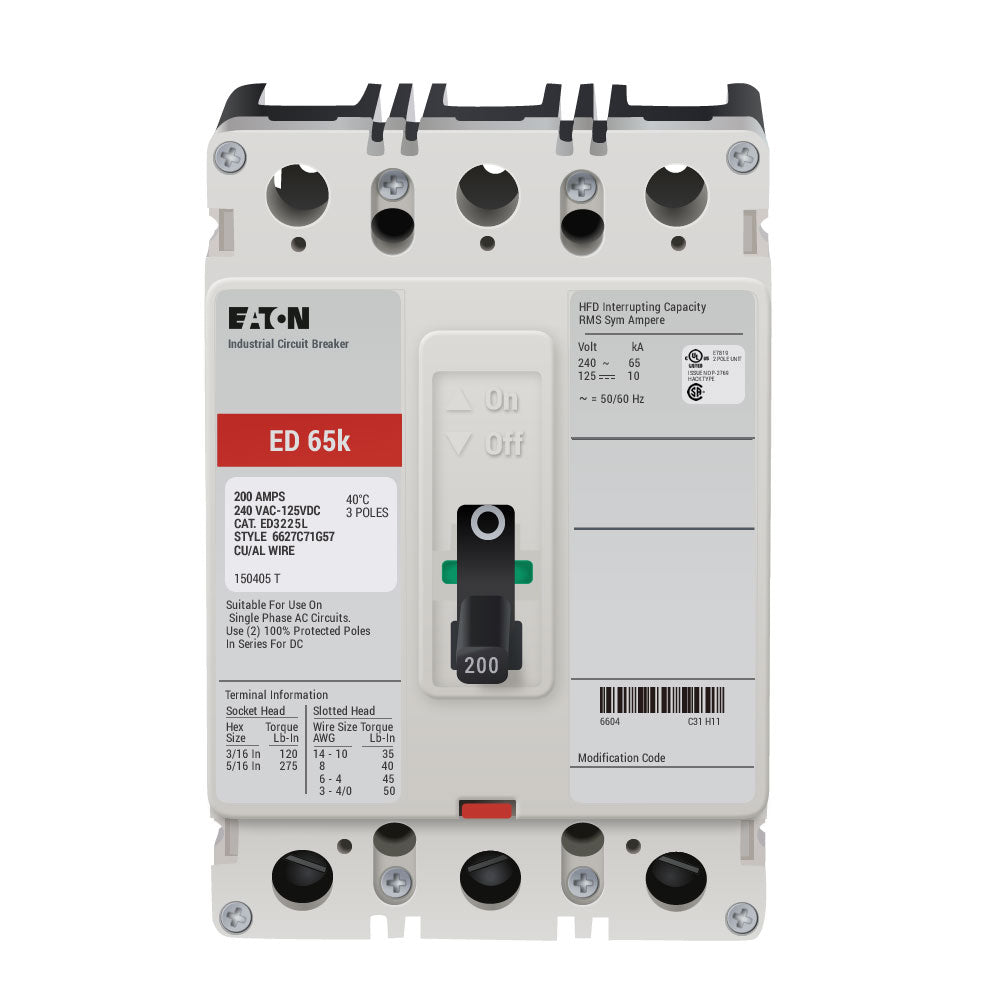

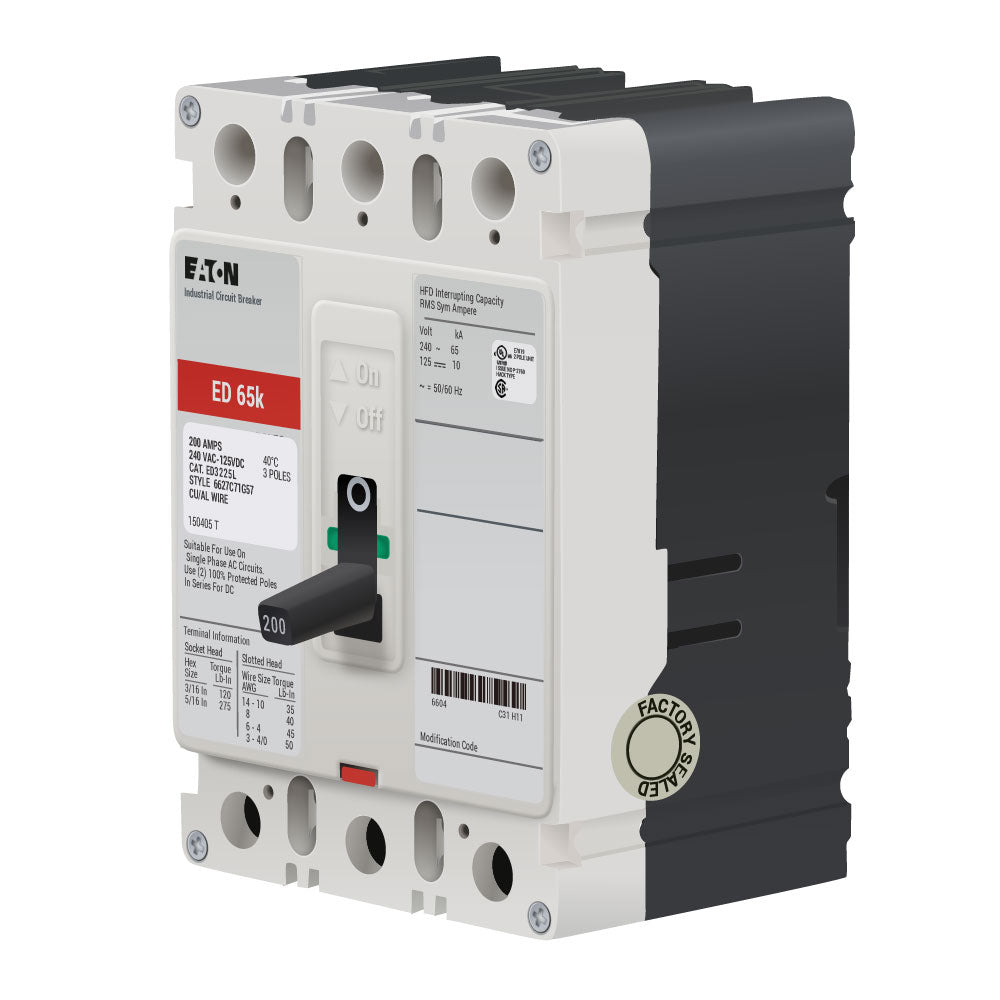

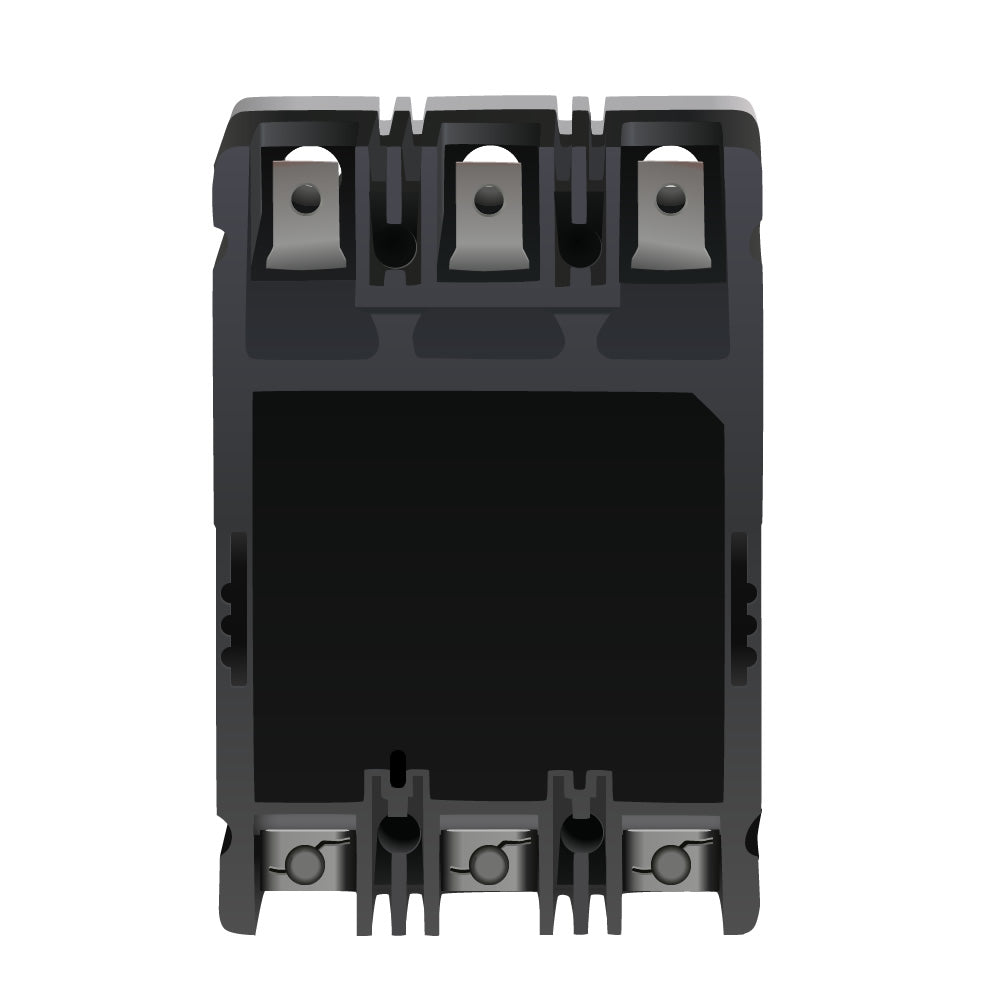

Cutler Hammer ED3225 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power systems. It features a 225A current rating and a 240V AC voltage rating, housed within a compact 225A frame with dimensions of 3.38" D x 6" H x 4.13" W and a weight of 4.5 lb. This thermal-magnetic breaker utilizes long-time and instantaneous (LI) trip functions, offers a 65kA interrupting capacity at 240V, and is compliant with UL, CSA, and IEC standards for integration into switchboards, motor control centers, and enclosed controls. Its bolt-on connection with load-side lugs (lugs not included) accommodates wire sizes from 14 AWG to 1/0 AWG and operates within a temperature range of -4°F to 158°F.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip, LI (Long-time & Instantaneous) Functions
  • Voltage Rating: 240V AC
  • Current Rating: 225A
  • Frame Size: 225A/F
  • AIC Rating: 65kA @ 240V AC
  • Poles: 3
  • Phase: 3-Phase, ABC Connection
  • Connection: Bolt-On, Load Side Lug (Lugs Not Included)
  • Wire Size Range: 14 AWG (Min) to 1/0 AWG (Max)
  • Dimensions: 3.38 in (Depth) x 6 in (Height) x 4.13 in (Width)
  • Weight: 4.5 lb
  • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Standards & Certification: UL Listed, CSA Certified, IEC Rated
  • Compatible Panel Types: Allen Bradley MCC, Eaton MCC, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
  • Family: Series C
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679455081
  • GTIN: 00786679455081
