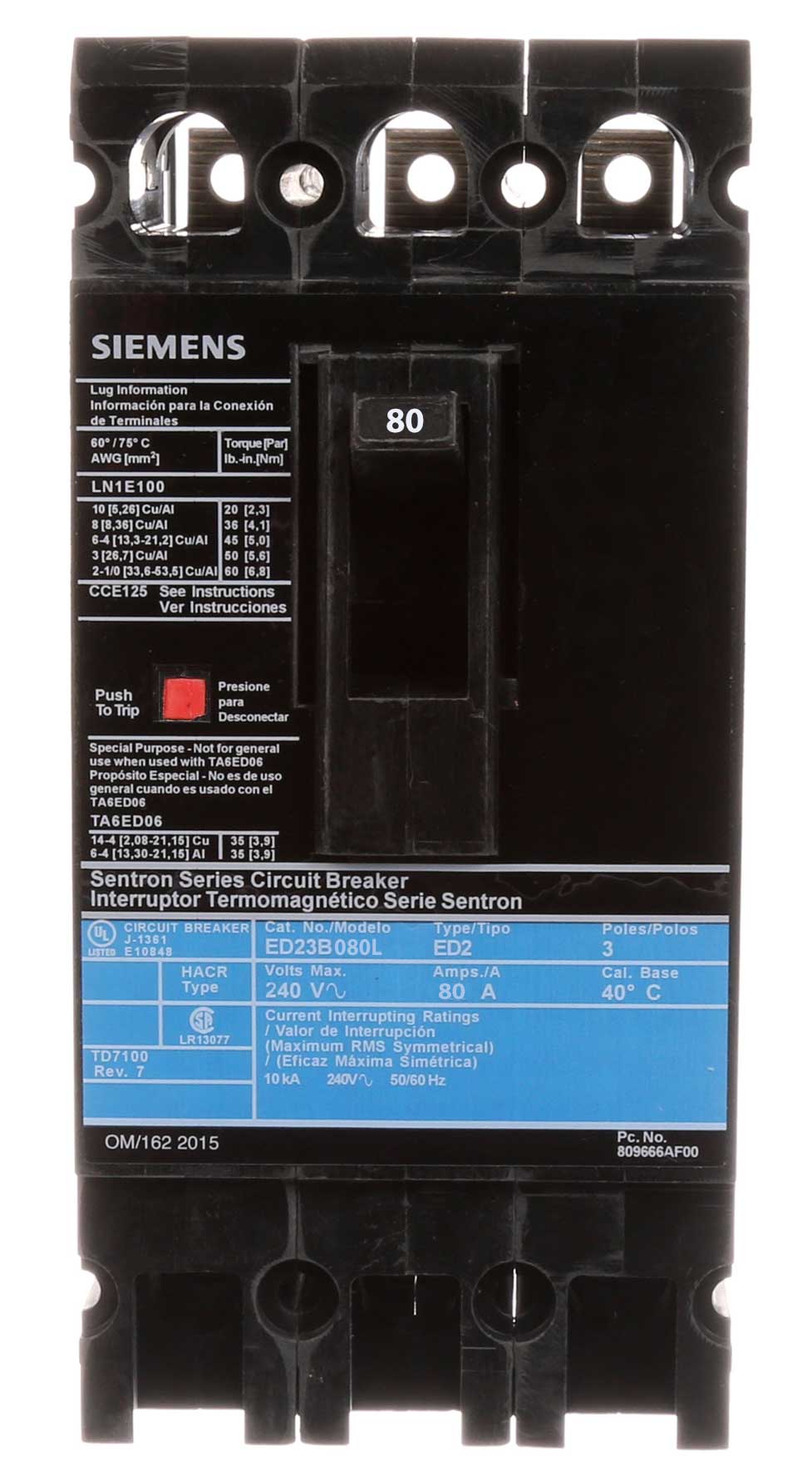

Siemens ED23B080 - Molded Case Circuit Breaker 80A 3P (10kA AIC)
Siemens ED23B080 - Molded Case Circuit Breaker 80A 3P (10kA AIC)

Siemens ED23B080 - Molded Case Circuit Breaker 80A 3P (10kA AIC)

Siemens
Price
Save $1,689.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED23B080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features an 80A current rating and a 240V AC voltage rating, housed within a compact 3" x 6.34" (76.2 mm x 161 mm) frame with a thermal-magnetic trip unit for long-time and instantaneous protection. This breaker is UL Listed and HACR rated for safety compliance and is constructed for operation in temperatures from -25°C to 70°C. It is engineered for integration into Siemens SB switchboards and Sentron panelboards, making it suitable for a range of commercial and light industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 80A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Lug in Panelboard, Load Side Lug
  • Wire Size: 10 AWG to 1/0 AWG (Cu/Al)
  • Phase Connection: ABC
  • Dimensions: 3 in x 6.34 in (76.2 mm x 161 mm)
  • Weight: 3.739 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards/Certification: UL Listed, HACR Rated
  • Compatible Panel Types: SB Switchboards, Sentron Panelboards
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643209060
  • GTIN: 00783643209060
