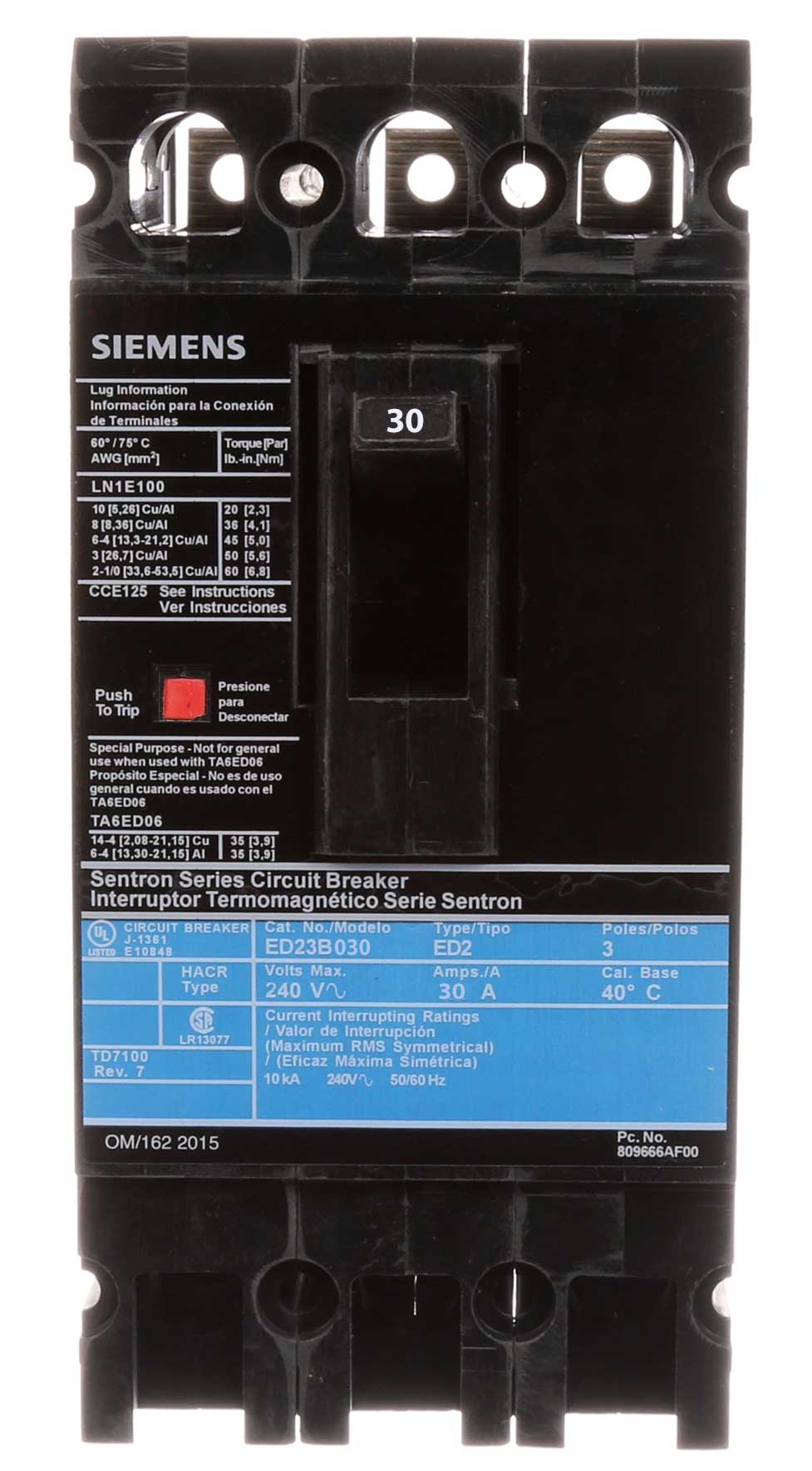

Siemens ED23B030 - Molded Case Circuit Breaker, 30A 3-Pole
Siemens ED23B030 - Molded Case Circuit Breaker, 30A 3-Pole

Siemens ED23B030 - Molded Case Circuit Breaker, 30A 3-Pole

Siemens
Price
Save $1,471.78
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED23B030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 30A current rating and a 240V AC voltage rating, housed within a compact 3" x 6.34" (76.2mm x 161mm) frame with a thermal-magnetic trip unit for long-time and instantaneous protection. Constructed with a 125A frame size and load-side lug connections, it complies with UL standards and is HACR rated for use in heating, air conditioning, and refrigeration equipment. This breaker is engineered for installation in Siemens SB switchboards and Sentron panelboards, supporting copper or aluminum conductors from 10 AWG to 1/0 AWG and operating effectively in temperatures from -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 30A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Lug in Panelboard, Load Side Lug
  • Phase Connection: 3-Phase (ABC)
  • Wire Size: 10 AWG to 1/0 AWG (Cu/Al)
  • Protection Functions: Long Time and Instantaneous Trip
  • Standards & Certification: UL Listed, HACR Rated
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 3 in x 6.34 in (76.2 mm x 161 mm)
  • Weight: 3.62 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208995
  • GTIN: 00783643208995
