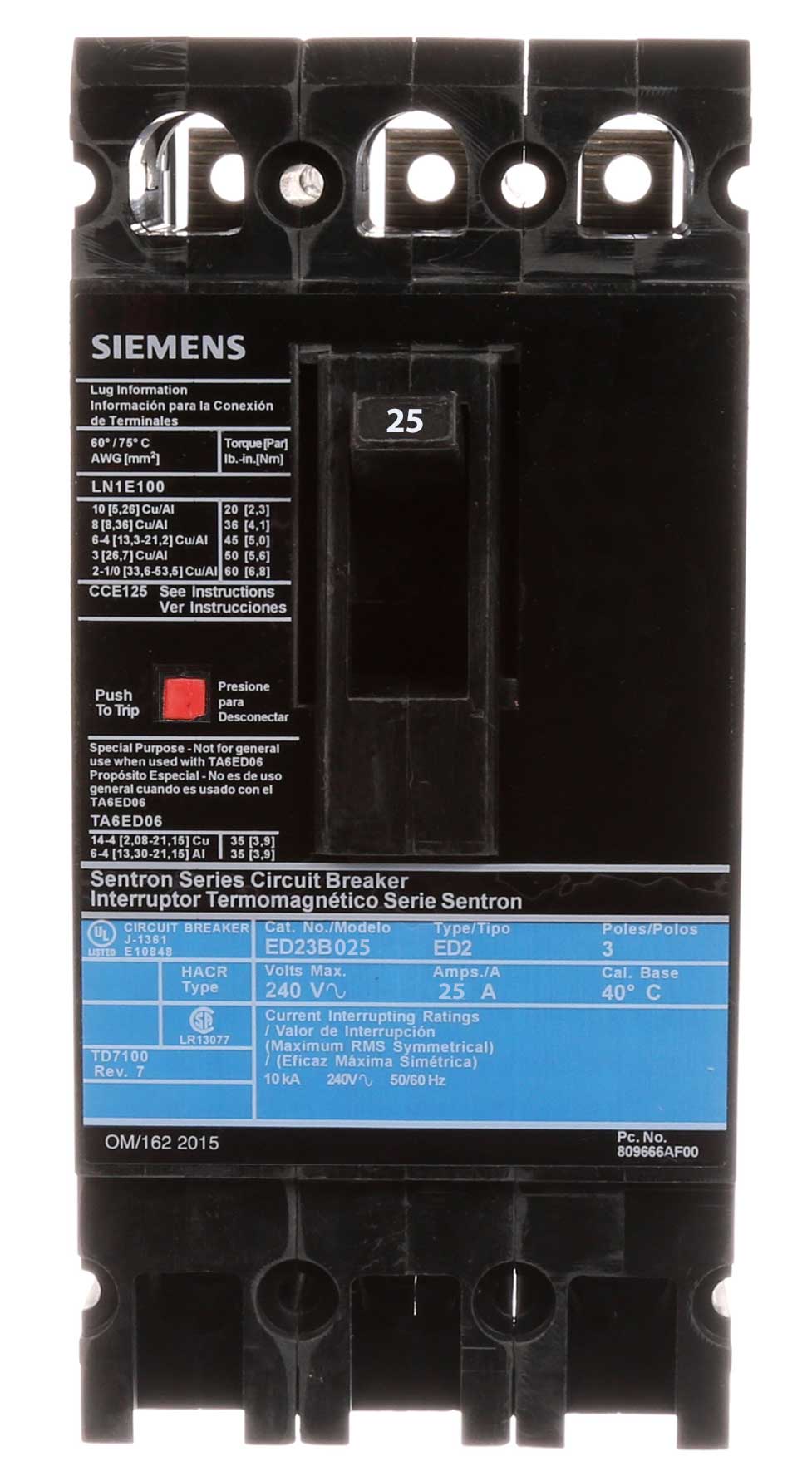

Siemens ED23B025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 25A current rating and a 240V AC voltage rating, housed within a compact 125A/ED frame with a thermal-magnetic trip unit for long-time and instantaneous protection. The breaker is constructed for durability with load-side lugs, supports copper (AWG 14-10) and aluminum (AWG 12-10) conductors, and operates within a temperature range of -25 to 70 °C. It complies with UL standards and is HACR rated for use in heating, air conditioning, and refrigeration equipment. Typical applications include integration into Siemens SB switchboards and Sentron panelboards for commercial and industrial power distribution.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Trip
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Connection: Lug In Panelboard, Load Side Lug
  • Phase Connection: 3-Phase (ABC)
  • Wire Size: Copper: AWG 14 to AWG 10; Aluminum: AWG 12 to AWG 10
  • MCM Size: Min. 10 AWG, Max. 1/0 AWG
  • Standards: UL Listed, HACR Rated
  • Protection: Long Time and Instantaneous Trip
  • Breaker Type: Standard
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Weight: 3.62 lb
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208988
  • GTIN: 00783643208988
