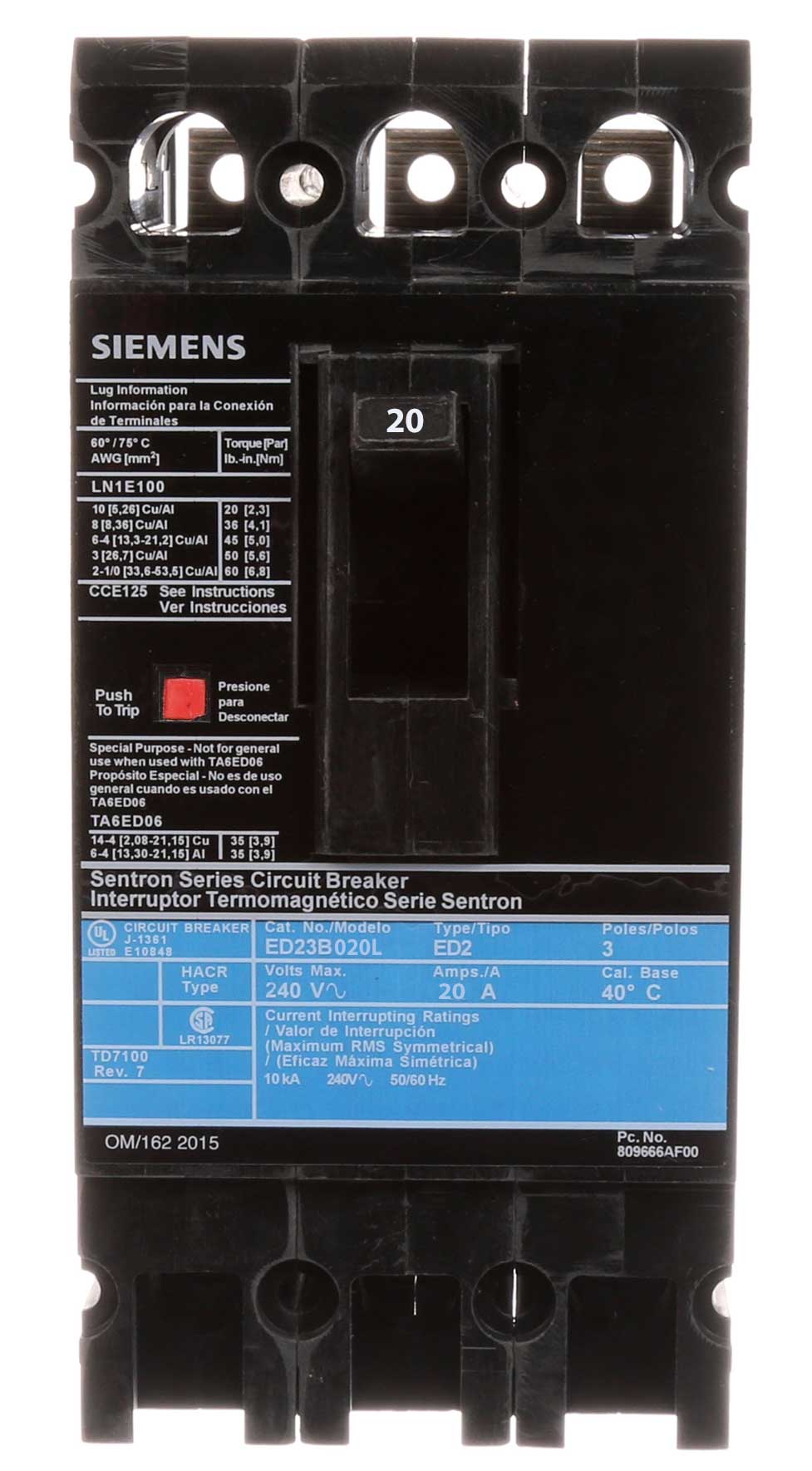

Siemens ED23B020 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 20A current rating and a 240V AC voltage rating, housed within a compact 3" x 6.34" (76.2 mm x 161 mm) frame with a thermal-magnetic trip unit for long-time and instantaneous protection. This UL Listed and HACR Rated device is constructed for operation in temperatures from -25°C to 70°C and is engineered for integration into SB switchboards and Sentron panelboards. Its 10kA interrupting rating at 240V and lug-in-panelboard connection make it suitable for a range of commercial and light industrial power distribution applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 20A
  • Frame Size: 125A/ED
  • Poles: 3
  • AIC Rating: 10kA @ 240V
  • Phase Connection: 3-Phase (ABC)
  • Connection: Lug In Panelboard, Load Side Lug Terminals
  • Wire Size: 14-10 AWG Cu / 12-10 AWG Al (MCM: 10 AWG Min, 1/0 AWG Max)
  • Dimensions: 3 in x 6.34 in (76.2 mm x 161 mm)
  • Weight: 3.62 lb
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Standards & Certification: UL Listed, HACR Rated
  • Panel Type: Compatible with SB Switchboards and Sentron Panelboards
  • Functions: Long Time and Instantaneous Trip
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208971
  • GTIN: 00783643208971
