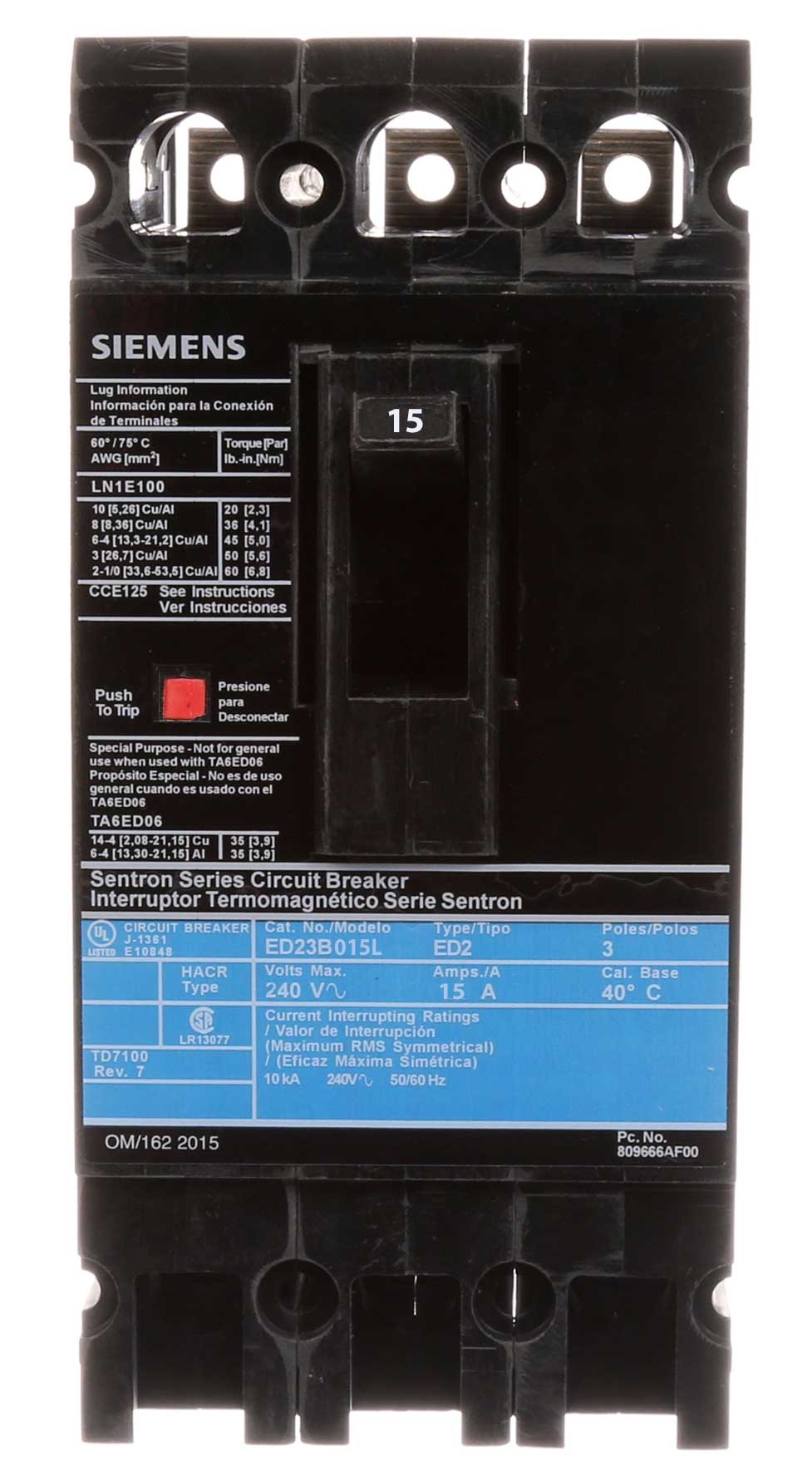

Siemens ED23B015 - Molded Case Circuit Breaker 15A 3P 240V
Siemens ED23B015 - Molded Case Circuit Breaker 15A 3P 240V

Siemens ED23B015 - Molded Case Circuit Breaker 15A 3P 240V

Siemens
Price
Save $1,303.48
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price
Siemens ED23B015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase electrical systems. It features a 15A thermal-magnetic trip unit with long-time and instantaneous functions, rated for 240V AC systems with a 10kA interrupting capacity at that voltage. The compact ED frame breaker employs a robust bolt-on connection suitable for copper conductors from AWG 14 to 10 or aluminum from AWG 12 to 10, and it operates reliably within a temperature range of -25 to 70 °C. Constructed to meet rigorous industrial standards, this Sentron series component is engineered for integration into panelboards and switchboards, commonly serving as a branch circuit protector for motor loads and distribution circuits in commercial and light industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 15A
  • Frame Size: ED Frame
  • Poles: 3
  • Connection: Bolt-On
  • Wire Size: AWG 14-10 Cu / AWG 12-10 Al
  • AIC Rating: 10kA @ 240V
  • Phase: 3
  • Trip Functions: Long Time and Instantaneous
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Weight: 3.699 lb
  • Standards: Designed to meet applicable industry standards
  • Applications: Panelboards, Switchboards, Motor Branch Circuits


Product Identification
  • UPC: 783643208964
  • GTIN: 00783643208964
