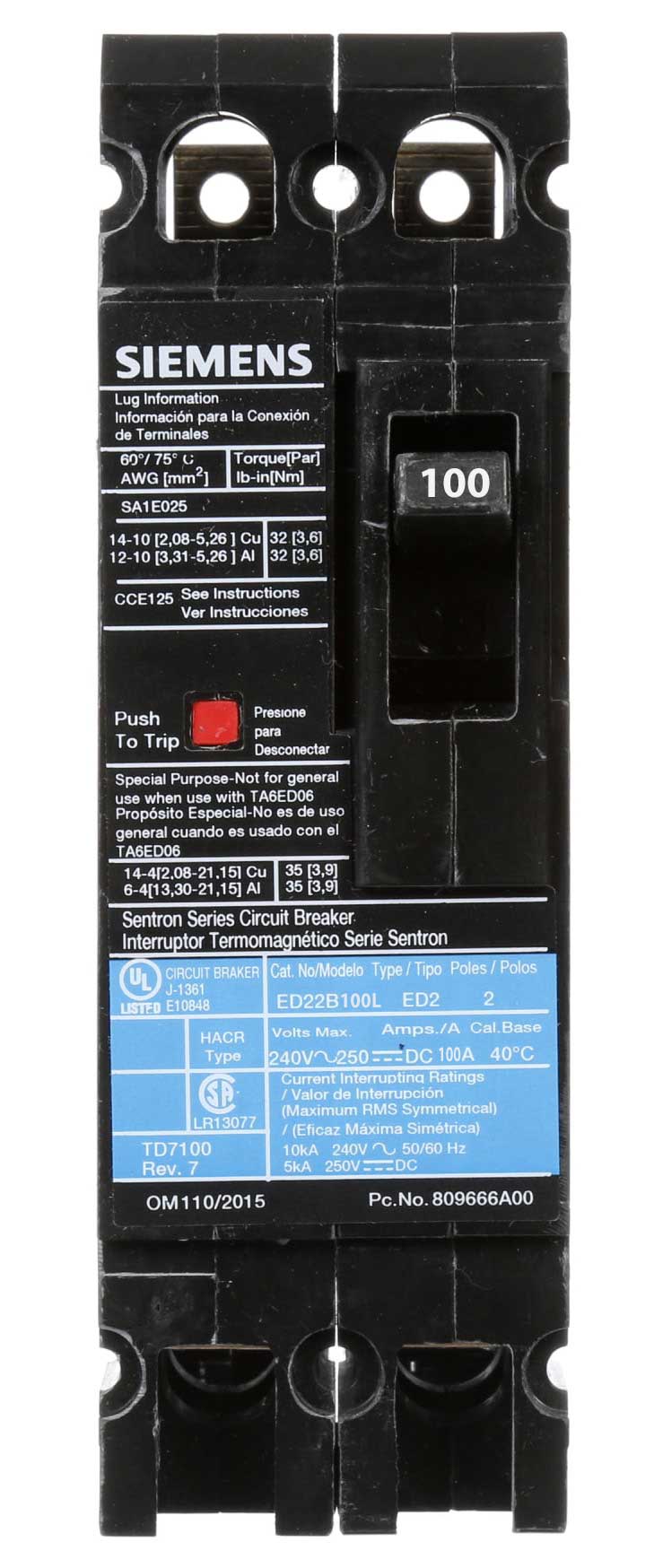

Siemens ED22B100 - Molded Case Circuit Breaker, 100A 2-Pole
Siemens ED22B100 - Molded Case Circuit Breaker, 100A 2-Pole

Siemens ED22B100 - Molded Case Circuit Breaker, 100A 2-Pole

Siemens
Price
Save $1,520.57
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Siemens ED22B100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 100A current rating and a 240V AC voltage rating, housed within a compact 2-inch by 6.34-inch (50.8 mm x 161 mm) frame with a thermal-magnetic trip unit providing long-time and instantaneous (LI) protection functions. This standard, two-pole breaker is constructed for use with 10 to 1/0 AWG aluminum or copper conductors via load-side lugs and is rated for an interrupting capacity of 10kA at 240V AC. It complies with UL standards and is HACR rated for HVAC equipment, ensuring suitability for installation in Sentron panelboards and SB switchboards. The breaker operates reliably across a wide temperature range from -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip, Standard
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 2 in H x 6.34 in W (50.8 mm x 161 mm)
  • Weight: 2.701 lb
  • Standards: UL Listed, HACR Rated
  • Applications: Commercial/Industrial Distribution, SB Switchboards, Sentron Panelboards
  • Frame Size: 125A/ED
  • AIC Rating: 10kA @ 240V AC
  • Poles: 2
  • Phase: 1
  • Protection: Thermal Magnetic
  • Functions: Long-Time & Instantaneous Trip (LI)
  • Connection: Lug In Panelboard, Load Side Lug
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Phase Connection: Any
  • Certification: HACR Rated, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208957
  • GTIN: 00783643208957
