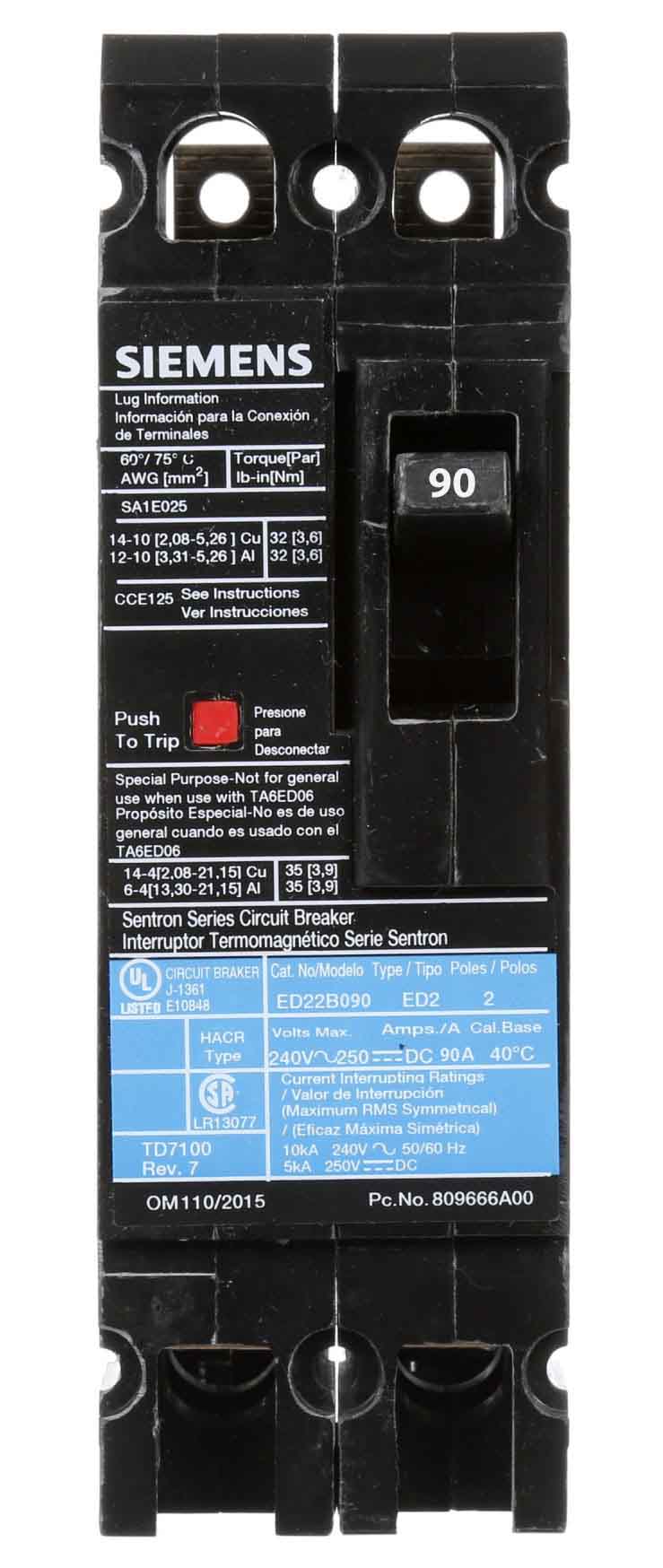

Siemens ED22B090 - Molded Case Circuit Breaker 90A 2-Pole
Siemens ED22B090 - Molded Case Circuit Breaker 90A 2-Pole

Siemens ED22B090 - Molded Case Circuit Breaker 90A 2-Pole

Siemens
Price
Save $1,308.01
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens ED22B090 is a molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. It provides a 90A current rating and 240V voltage rating, featuring a compact 125A/ED frame with a two-pole thermal-magnetic trip unit for both long-time and instantaneous (LI) protection. The breaker is constructed with load-side lugs for panelboard installation, accepts 10 to 1/0 AWG aluminum or copper conductors, and is HACR rated and UL listed for safety compliance. Its 10kA interrupting capacity at 240V makes it suitable for use in Sentron panelboards and SB switchboards for feeder and branch circuit applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 90A
  • Frame Size: 125A/ED
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Connection: Lug In Panelboard, Load Side Lug
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Functions: LI (Long-Time and Instantaneous)
  • Protection: Thermal Magnetic
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Phase Connection: Any
  • Breaker Type: Standard
  • Standards: HACR Rated, UL Listed
  • Family: Sentron Series
  • Weight: 2.661 lb
  • MCM Size: Min. Wire Size 10 AWG, Max. Wire Size 1/0 AWG
  • Terminal Connection: Load Side Lug
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208940
  • GTIN: 00783643208940
