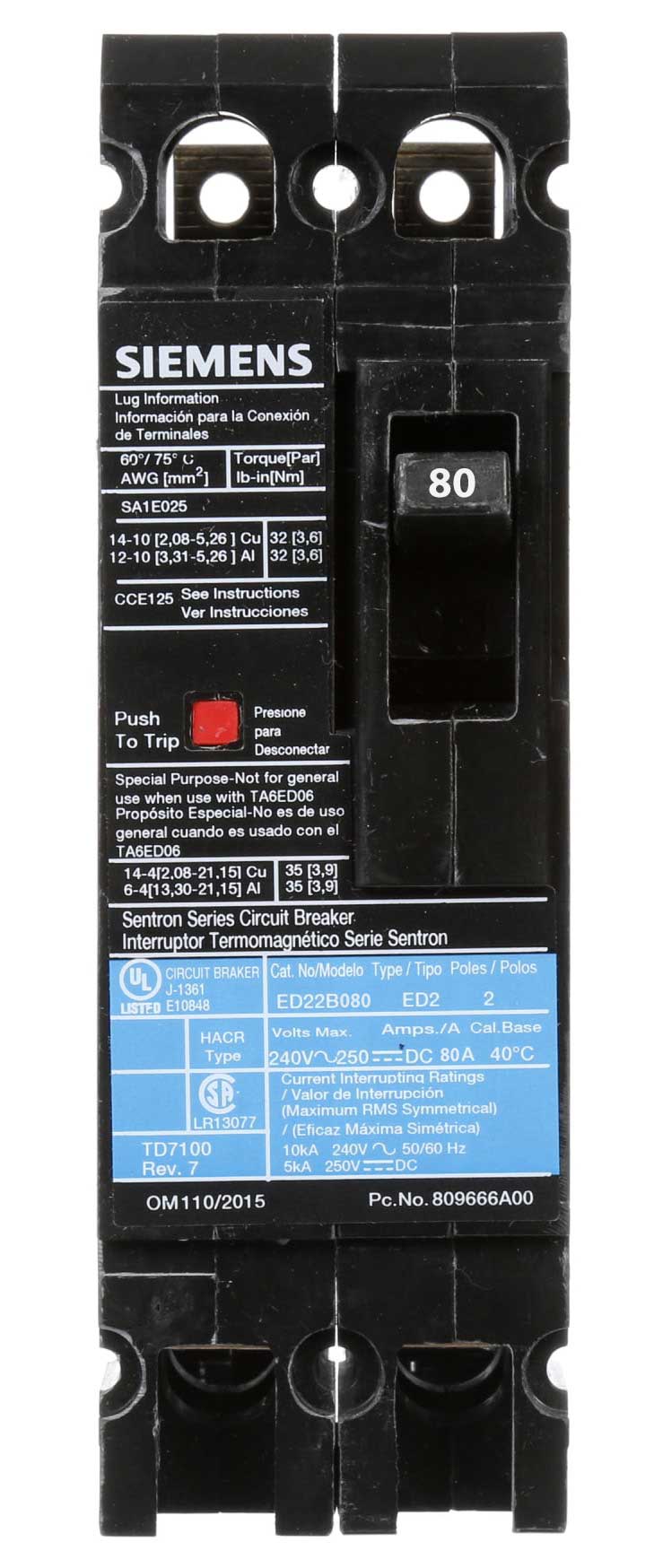

Siemens ED22B080 - Molded Case Circuit Breaker, 80A 2-Pole
Siemens ED22B080 - Molded Case Circuit Breaker, 80A 2-Pole

Siemens ED22B080 - Molded Case Circuit Breaker, 80A 2-Pole

Siemens
Price
Save $161.07
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens ED22B080 is a molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. It provides an 80A current rating and a 240V voltage rating for single-phase applications, featuring a compact 2-inch by 6.34-inch (50.8 mm x 161 mm) frame with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection. This UL-listed and HACR-rated breaker is constructed for operation in temperatures from -25 to 70 °C and is compatible with SB switchboards and Sentron panelboards via its load-side lug connection. Its 10 kA interrupting rating at 240V and ability to accept 10 to 1/0 AWG aluminum or copper wire make it suitable for feeder and branch circuit protection in a wide range of panelboard installations.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Trip (LI)
  • Voltage Rating: 240V AC
  • Current Rating: 80A
  • Frame Size: 125A/ED
  • Poles: 2
  • AIC Rating: 10 kA @ 240V
  • Phase: 1
  • Connection: Load Side Lug, Lug In Panelboard
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Dimensions: 2 in x 6.34 in (50.8 mm x 161 mm)
  • Weight: 2.599 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Phase Connection: Any
  • Standards/Certification: UL Listed, HACR Rated
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208933
  • GTIN: 00783643208933
