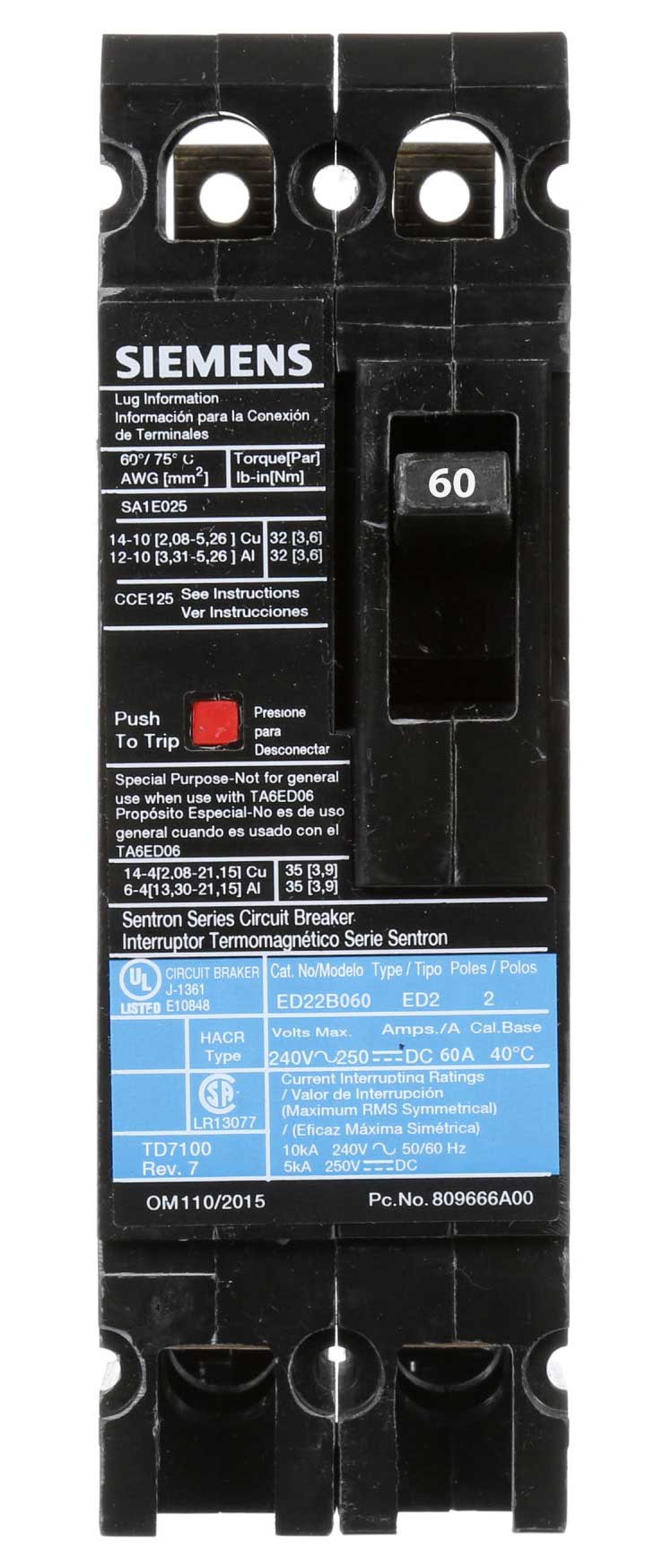

Siemens ED22B060 - Molded Case Circuit Breaker, 60A 2-Pole
Siemens ED22B060 - Molded Case Circuit Breaker, 60A 2-Pole

Siemens ED22B060 - Molded Case Circuit Breaker, 60A 2-Pole

Siemens
Price
Save $630.81
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Siemens ED22B060 is a molded case circuit breaker designed for reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 60A current rating and a 240V voltage rating, housed within a compact 2-inch by 6.34-inch (50.8 mm x 161 mm) frame with a thermal-magnetic trip unit providing long-time and instantaneous (LI) protection functions. This UL-listed and HACR-rated breaker is constructed for operation in temperatures from -25 to 70 °C and is compatible with SB switchboards and Sentron panelboards. Its 10 kA interrupting rating at 240V and lug-in-panelboard connection with load-side lugs for 10 to 1/0 AWG wire make it suitable for feeder and branch circuit applications in single-phase systems.

Key Features & Specifications
  • Type: Standard molded case circuit breaker with thermal-magnetic protection
  • Voltage Rating: 240V AC
  • Current Rating: 60A
  • Dimensions: 2 in x 6.34 in (50.8 mm x 161 mm)
  • Standards: UL Listed, HACR Rated
  • Applications: Feeder and branch circuit protection in SB switchboards and Sentron panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 1
  • Poles: 2
  • AIC Rating: 10 kA @ 240V
  • Connection: Lug In Panelboard
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 125A/ED
  • Trip Type: Thermal Magnetic
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Breaker Type: Standard
  • Temp Rating: -25 to 70 °C
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Terminal Connection: Load Side Lug
  • Phase Connection: Any
  • Certification: HACR Rated, UL Listed
  • Family: Sentron Series
  • Country of Origin: Mexico
  • Weight: 2.551 lb


Product Identification
  • UPC: 783643208919
  • GTIN: 00783643208919
