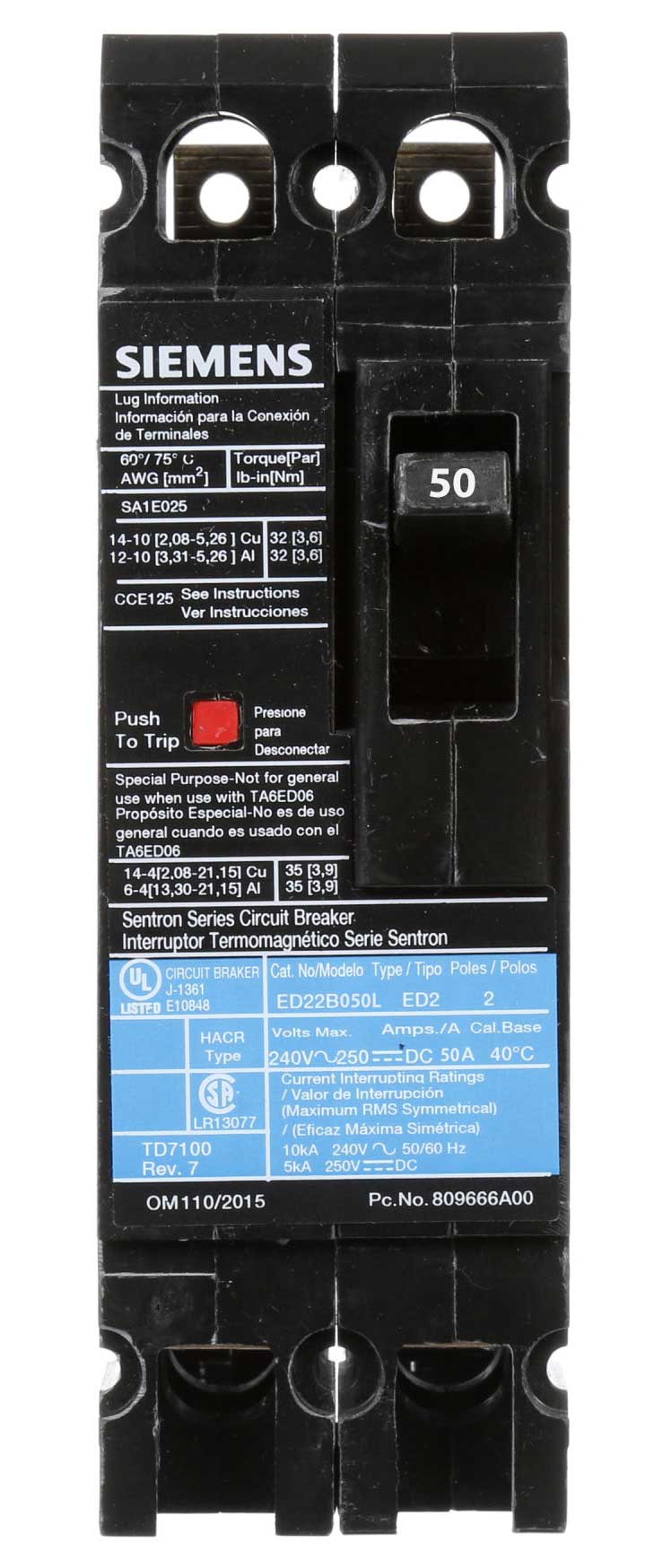

Siemens ED22B050 - Molded Case Circuit Breaker 50A 2-Pole
Siemens ED22B050 - Molded Case Circuit Breaker 50A 2-Pole

Siemens ED22B050 - Molded Case Circuit Breaker 50A 2-Pole

Siemens
Price
Save $998.49
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Siemens ED22B050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 50A current rating and a 240V AC voltage rating, housed within a compact 2-inch by 6.34-inch (50.8 mm x 161 mm) frame with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection functions. This standard, two-pole breaker is constructed for lug-in panelboard connection with load-side lugs, supports a minimum wire size of 10 AWG to a maximum of 1/0 AWG, and operates reliably across a temperature range of -25 to 70 °C. It complies with UL standards and is HACR rated for heating, air conditioning, and refrigeration equipment, offering a 10kA interrupting capacity at 240V for effective fault protection. Typical applications include integration into Siemens SB switchboards and Sentron series panelboards for branch circuit protection in single-phase systems.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip (LI)
  • Voltage Rating: 240V AC
  • Current Rating: 50A
  • Frame Size: 125A/ED
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Lug In Panelboard, Load Side Lug Terminals
  • Wire Size (MCM): 10 AWG Min, 1/0 AWG Max
  • Protection Functions: Long-Time & Instantaneous Trip
  • Breaker Type: Standard
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Phase Connection: Any
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2 in x 6.34 in (50.8 mm x 161 mm)
  • Weight: 2.61 lb
  • Standards & Certification: UL Listed, HACR Rated
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643208902
  • GTIN: 00783643208902
