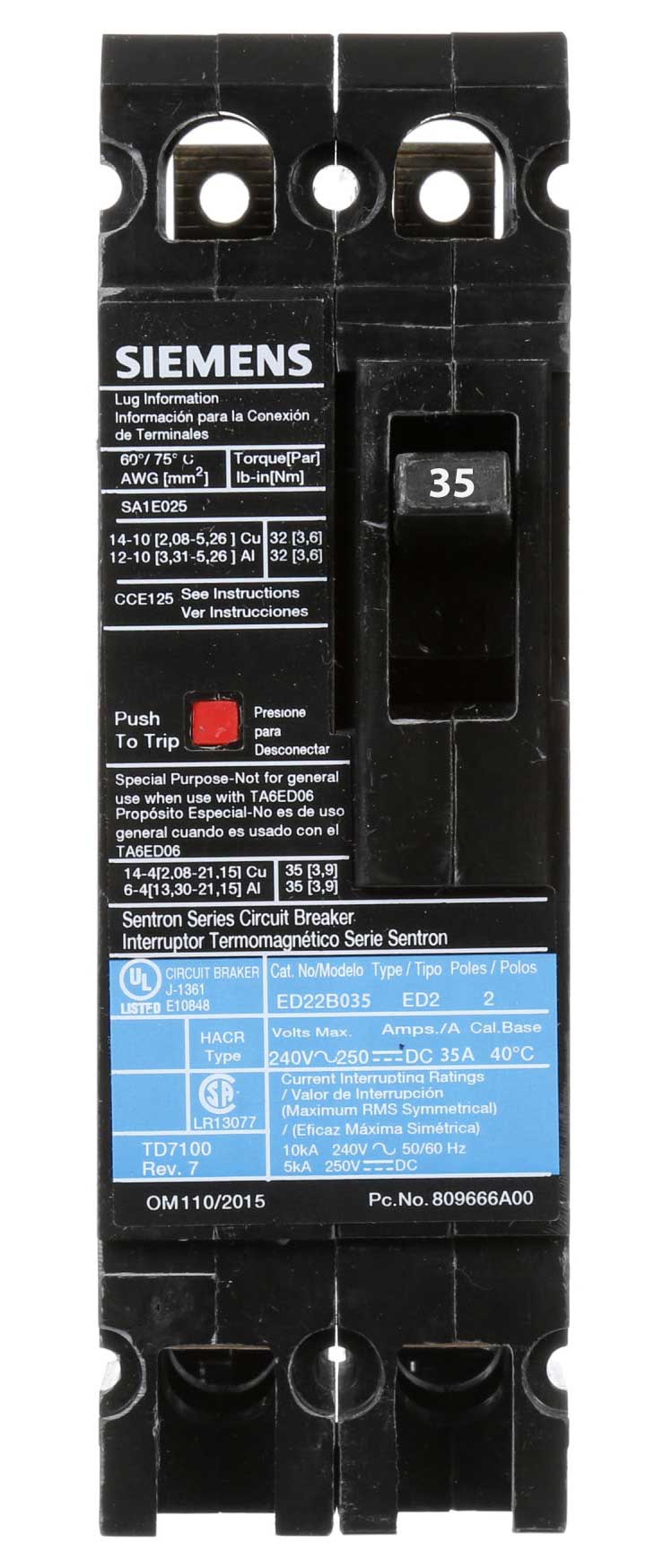

Siemens ED22B035 - Molded Case Circuit Breaker 35A 2-Pole (10kA AIC)
Siemens ED22B035 - Molded Case Circuit Breaker 35A 2-Pole (10kA AIC)

Siemens ED22B035 - Molded Case Circuit Breaker 35A 2-Pole (10kA AIC)

Siemens
Price
Save $261.65
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens ED22B035 is a molded case circuit breaker designed for reliable overcurrent protection in single-phase electrical systems. It features a 35A current rating and a 240V voltage rating, providing a 10kA interrupting capacity at that voltage. The breaker is constructed with a 125A frame size, features two poles, and utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection. It is HACR rated and UL listed, ensuring compliance with industry safety standards for use in HVAC equipment and other applications. This standard breaker is typically installed via load-side lugs in compatible Sentron panelboards and SB switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Standard, Thermal-Magnetic Protection
  • Voltage Rating: 240V AC
  • Current Rating: 35A
  • Frame Size: 125A/ED
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Protection Functions: LI (Long-Time and Instantaneous Trip)
  • Trip Type: Thermal Magnetic
  • Connection: Lug In Panelboard, Load Side Lug
  • Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Standards: HACR Rated, UL Listed
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Weight: 2.701 lb
  • Family: Sentron Series
  • Breaker Type: Standard
  • Phase Connection: Any


Product Identification
  • UPC: 783643208872
  • GTIN: 00783643208872
