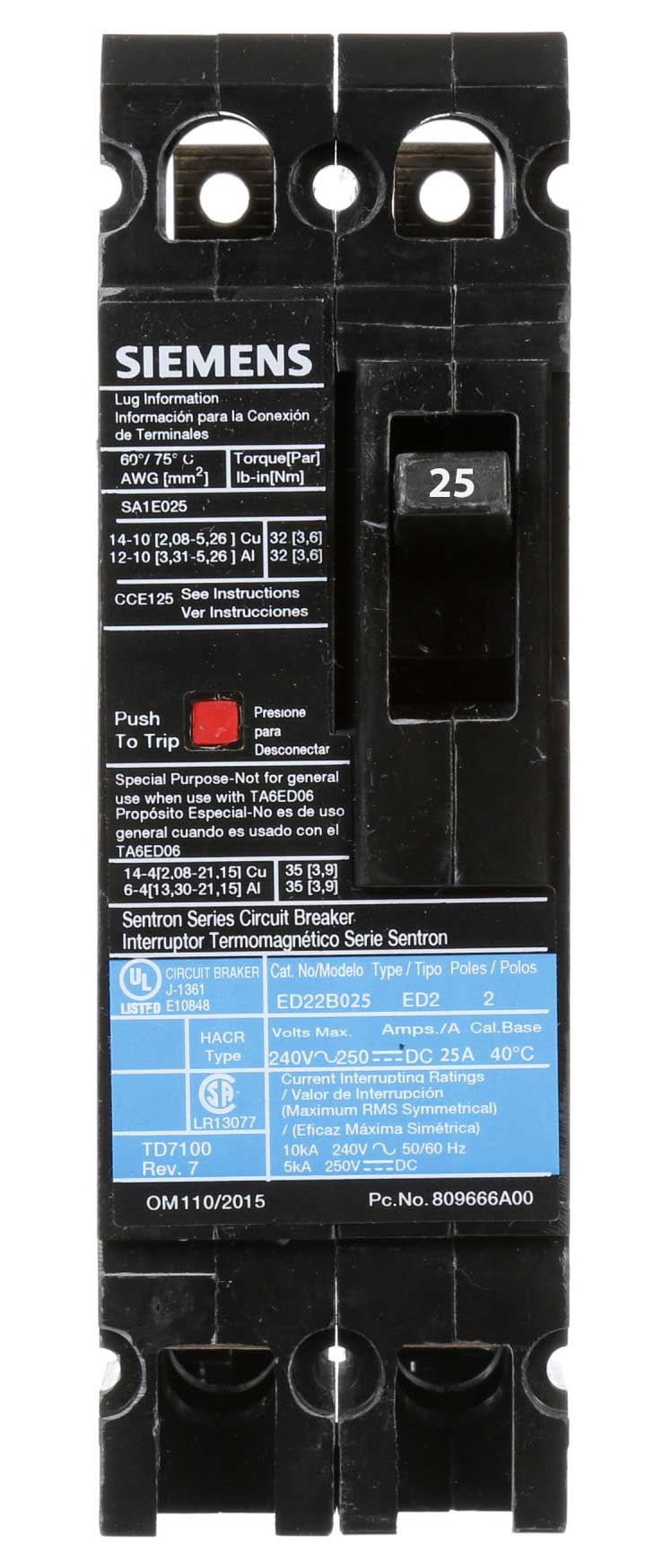

Siemens ED22B025 - Molded Case Circuit Breaker 25A 2-Pole
Siemens ED22B025 - Molded Case Circuit Breaker 25A 2-Pole

Siemens ED22B025 - Molded Case Circuit Breaker 25A 2-Pole

Siemens
Price
Save $954.14
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Siemens ED22B025 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in commercial and industrial electrical systems. It features a 25A current rating and a 240V AC voltage rating, housed within a compact 2" x 6.34" (50.8 mm x 161 mm) bolt-on unit from the Sentron Series with a 125A frame. This thermal-magnetic breaker offers LI (Long-time and Instantaneous) trip functions, ensuring protection across a wide operating temperature range of -25°C to 70°C, and is certified to UL standards with HACR rating for air conditioning and refrigeration equipment compatibility. It is engineered for integration into SB switchboards and Sentron panelboards, providing 10kA interrupting capacity at 240V for single-phase applications with any phase connection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 240V AC
  • Current Rating: 25A
  • Frame Size: 125A/ED
  • Poles: 2
  • AIC Rating: 10kA @ 240V
  • Phase: 1
  • Trip Functions: LI (Long-Time & Instantaneous)
  • Connection: Bolt-On, Load Side Lug Terminal
  • Wire Size Compatibility: 12 to 10 AWG (Aluminum), MCM: Min 10 AWG / Max 1/0 AWG
  • Standards & Certification: UL Listed, HACR Rated
  • Panel Type: SB Switchboards, Sentron Panelboards
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 2 in x 6.34 in (50.8 mm x 161 mm)
  • Weight: 2.701 lb
  • Family: Sentron Series
  • Breaker Type: Standard
  • Phase Connection: Any


Product Identification
  • UPC: 783643208858
  • GTIN: 00783643208858
