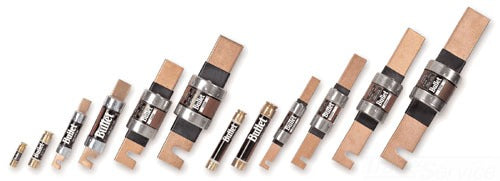

Edison Fuses ECSR0.1 - Class RK5 Time-Delay Fuse 0.1A 600V
Edison Fuses ECSR0.1 - Class RK5 Time-Delay Fuse 0.1A 600V

Edison Fuses ECSR0.1 - Class RK5 Time-Delay Fuse 0.1A 600V

Edison Fuses
Price
Save $-23.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Edison Fuses ECSR0.1 is a current-limiting time-delay fuse designed for the protection of motor circuits and other inductive loads. This fuse is rated for 0.1 amps at 600 volts AC, providing precise overcurrent protection in a compact, ferrule-style body. Constructed with a high-temperature resistant melamine tube and silver-plated end caps, it ensures reliable performance under demanding conditions. The ECSR0.1 complies with UL Class RK5 standards, offering a high interrupting rating for safe fault clearing. It is commonly used in industrial control panels, motor starters, and branch circuit protection applications.

Key Features & Specifications
  • Type: Current-limiting, time-delay fuse, Class RK5
  • Voltage Rating: 600 V AC
  • Current Rating: 0.1 A
  • Dimensions: 13/32" x 1-1/2" (ferrule style)
  • Standards: UL Listed, Class RK5
  • Applications: Motor circuit protection, inductive load protection, branch circuit protection
  • AIC rating: 200,000 A RMS Sym.
  • Fuse Class: RK5
  • Weight: 5.19 lb


Product Identification
  • UPC: 782001917869
