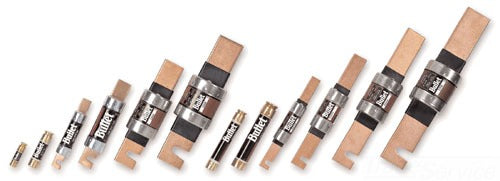

Edison Fuses ECNR0.8 - Class RK1 Fuse 0.8A 250V (Ferrule)
Edison Fuses ECNR0.8 - Class RK1 Fuse 0.8A 250V (Ferrule)

Edison Fuses ECNR0.8 - Class RK1 Fuse 0.8A 250V (Ferrule)

Edison Fuses
Price
Save $-12.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Edison Fuses ECNR0.8 is a time-delay, dual-element fuse designed for the protection of motors, transformers, and other inductive loads against short circuits and overloads. This Class RK1 fuse is rated for 0.8 amps, with a voltage rating of 250 volts AC/DC and a high interrupting capacity of 200,000 amps RMS symmetrical. The fuse features a compact, ferrule-style construction with a diameter of 0.41 inches and a length of 1.50 inches, and it weighs 5.19 lb. It complies with UL 248-12 and CSA standards, ensuring reliable performance in demanding industrial environments. Typical applications include motor control centers, panelboards, and branch circuit protection in manufacturing and processing facilities.

Key Features & Specifications
  • Type: Class RK1, time-delay, dual-element fuse
  • Voltage Rating: 250 V AC/DC
  • Current Rating: 0.8 A
  • Dimensions: 0.41 in diameter x 1.50 in length
  • Standards: UL 248-12, CSA
  • Applications: Motor protection, transformer protection, branch circuit protection
  • Fuse Class: RK1
  • Interrupting Rating: 200 kA RMS Sym.
  • Mounting: Ferrule
  • Weight: 5.19 lb
