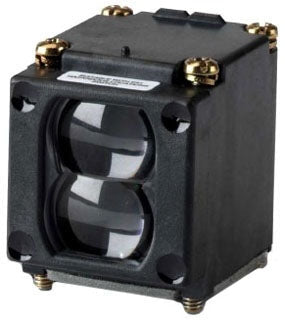

Cutler Hammer E51DP1 - Photoelectric Sensor 18m Range (Infrared)
Cutler Hammer E51DP1 - Photoelectric Sensor 18m Range (Infrared)

Cutler Hammer E51DP1 - Photoelectric Sensor 18m Range (Infrared)

Eaton
Price
Save $293.56
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer E51DP1 is a modular photoelectric sensor designed for reliable object detection in industrial automation environments. It operates on a versatile voltage range of 20-264VAC/VDC and 10-30VDC, with a maximum sensing range of 18 meters using an infrared light source. The sensor features a plastic enclosure rated NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 and IP67, with screw terminal connections and dimensions of 1.54 in x 1.77 in x 1.82 in (Length/Depth x Height x Width), weighing 0.1625 lb. It holds CE, UL, and CSA certifications and operates within a temperature range of -13 to 158 °F (-25 to 70 °C). Typical applications include electrical assemblies, panels, and EOEM systems requiring precise, repeatable detection with light/dark operation modes and mechanical Near/Far adjustment.

Key Features & Specifications
  • Type: Photoelectric Sensor
  • Manufacturer: Cutler Hammer (Eaton)
  • Series/Frame: E51
  • Voltage: 120VAC, 20-264VAC/VDC, 10-30VDC
  • Light Source: Infrared
  • Max Sensing Range: 18 meters
  • Mounting Type: Body
  • Enclosure Rating: NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13; IP67
  • Enclosure Material: Plastic
  • Operating Temperature: -13 to 158 °F (-25 to 70 °C)
  • Response Time: 20 ms AC/DC On, 30 ms AC Off, 22 ms DC Off
  • Connection Type: Screw Terminal
  • Certification: CE, UL, CSA
  • Country of Origin: Mexico


Product Identification
  • UPC: 782113124773
  • GTIN: 00782113124773
