Square D DU326 - Non-Fusible Disconnect Switch 600A 240V
Square D DU326 Disconnect Switch (Non-Fusible) - Essential Electric Supply
Square D DU326 - Non-Fusible Disconnect Switch 600A 240V
Square D DU326 - Non-Fusible Disconnect Switch 600A 240V
Square D DU326 Disconnect Switch (Non-Fusible) - Essential Electric Supply
Square D DU326 - Non-Fusible Disconnect Switch 600A 240V

Square D DU326 - Non-Fusible Disconnect Switch 600A 240V

Square D
Price
Save $-730.89
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

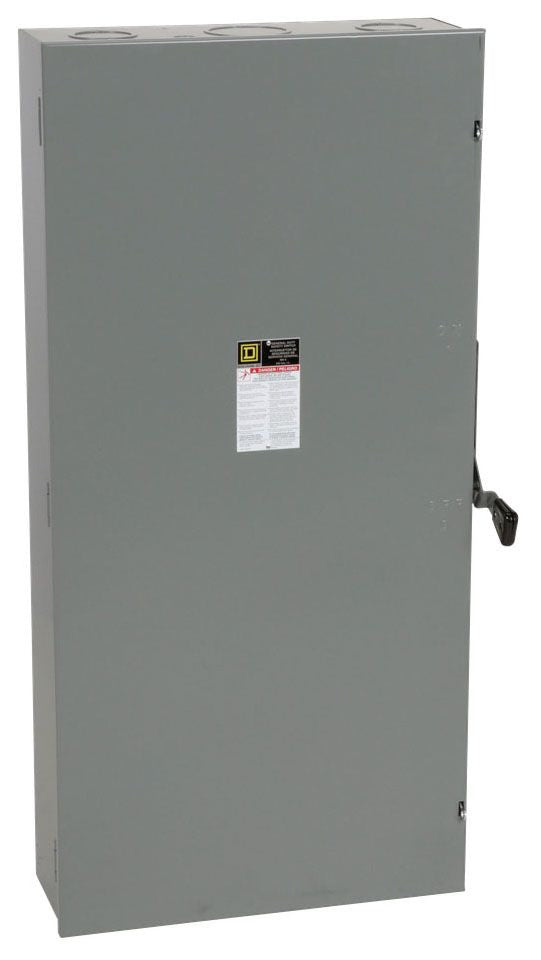

Square D DU326 is a heavy-duty, non-fusible safety disconnect switch designed for isolating and de-energizing three-phase electrical circuits for maintenance and service. It is rated for 600A at 240V AC with a high interrupting capacity of 100kA, housed in a robust NEMA 1 enclosure measuring 1146.05 mm H x 631.95 mm W x 225.55 mm D and weighing 117 lb. The switch complies with industrial safety standards and is constructed for use with AWG 4 to 500 kcmil aluminum or copper conductors. It is typically applied in industrial power distribution, motor control centers, and panelboards where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series E, DU Type
  • Voltage Rating: 240V AC
  • Current Rating: 600A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 100kA @ 240V
  • Wire Size: AWG 4 to 500 kcmil (Aluminum/Copper)
  • NEMA Rating: NEMA 1
  • Dimensions: 1146.05 mm H x 631.95 mm W x 225.55 mm D (45.12 in x 24.88 in x 8.88 in)
  • Weight: 117 lb
  • Standards: Industrial Safety Standards
  • Applications: Industrial Power Distribution, Motor Control Centers, Panelboards
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901461630
  • GTIN: 00785901461630
