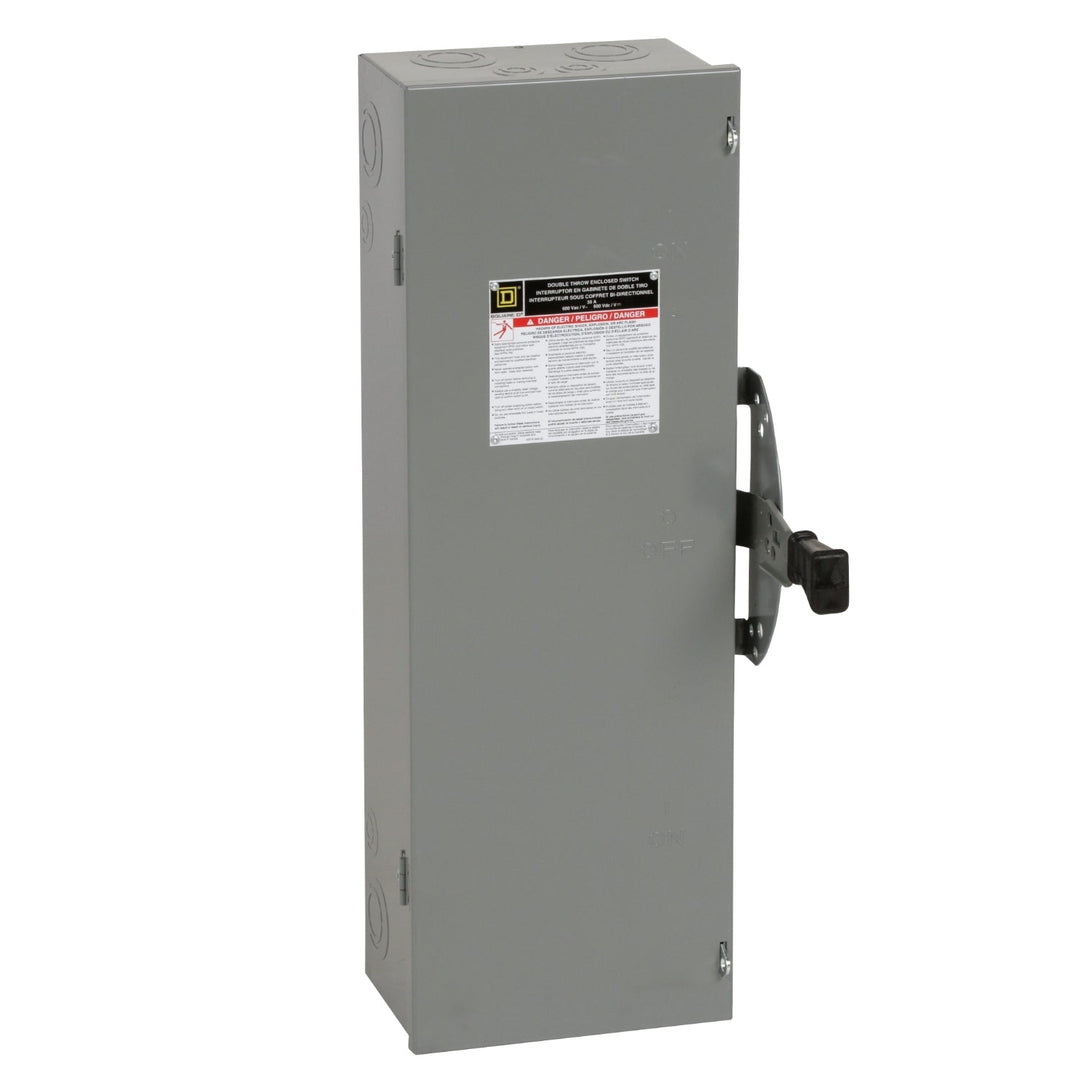

Square D DTU361 - Non-Fusible Disconnect Switch 30A 600V 3-Pole

Square D
Price
Save $-637.19
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D DTU361 is a non-fusible safety disconnect switch designed for isolating three-phase electrical circuits in industrial applications. It provides a visible break for maintenance safety with a 600V AC voltage rating and a 30A current rating, housed in a robust NEMA 1 enclosure measuring 760.48 mm H x 303.78 mm W x 176.02 mm D and weighing 34.99 lb. The switch is UL listed and features a 200kA interrupting rating at 600V, ensuring compliance with critical safety standards for electrical disconnection. Its three-pole, single-configuration design accommodates wire sizes from AWG 14 to AWG 2 for both aluminum and copper conductors, making it suitable for use in motor control centers and power distribution panels compatible with RLF frames.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, Three-Pole, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 760.48 mm H x 303.78 mm W x 176.02 mm D (29.94 in x 11.96 in x 6.93 in)
  • Weight: 34.99 lb
  • Standards: UL Listed, NEMA 1 Enclosure Rating
  • Applications: Industrial circuit isolation in motor control centers and power distribution panels
  • Switch Type: Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire: 3
  • Wire Size: AWG 12 to AWG 2, AWG 14 to AWG 2 (Aluminum/Copper)
  • Compatible Frames: RLF
  • Country of Origin: United States


Product Identification
  • UPC: 785901308669
  • GTIN: 00785901308669
