Siemens DTNF366R - Non-Fusible Disconnect Switch 600A 600V

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

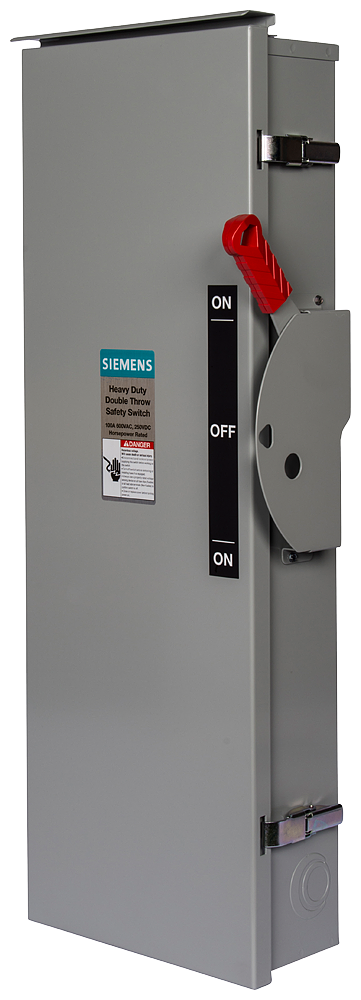

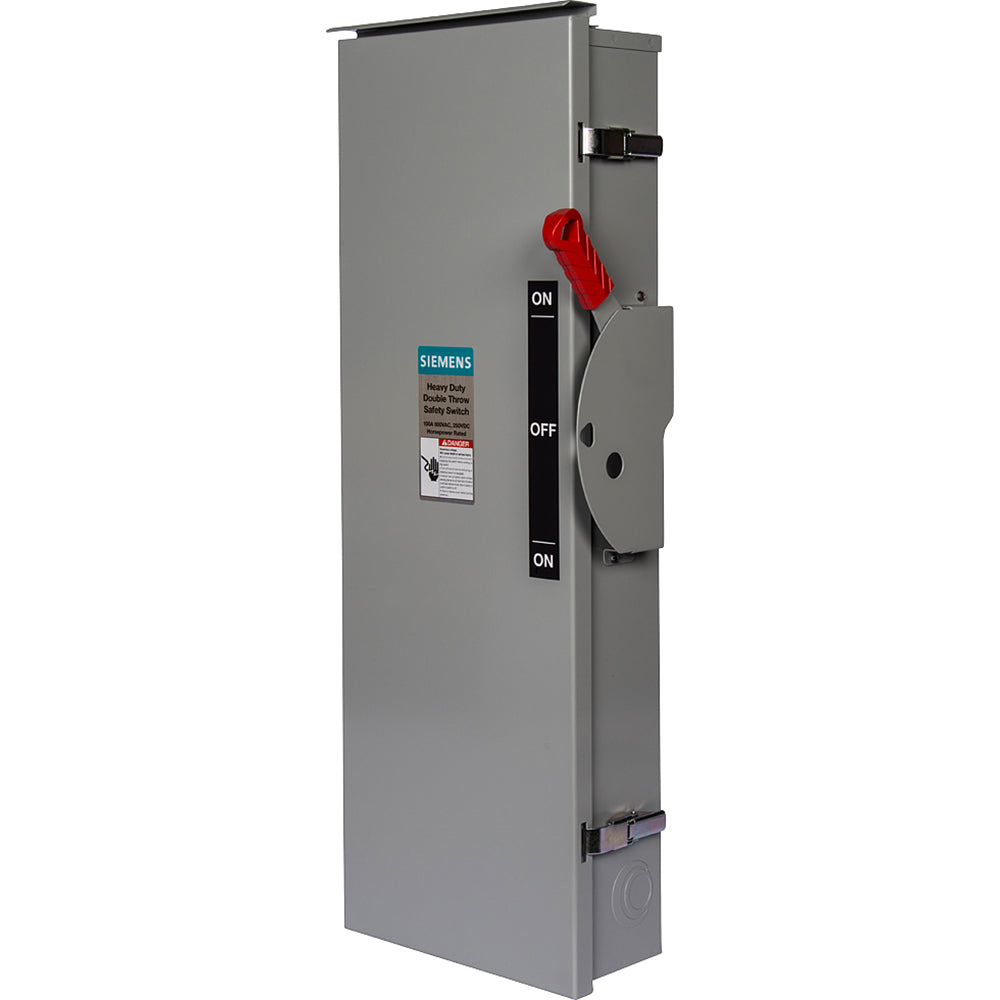

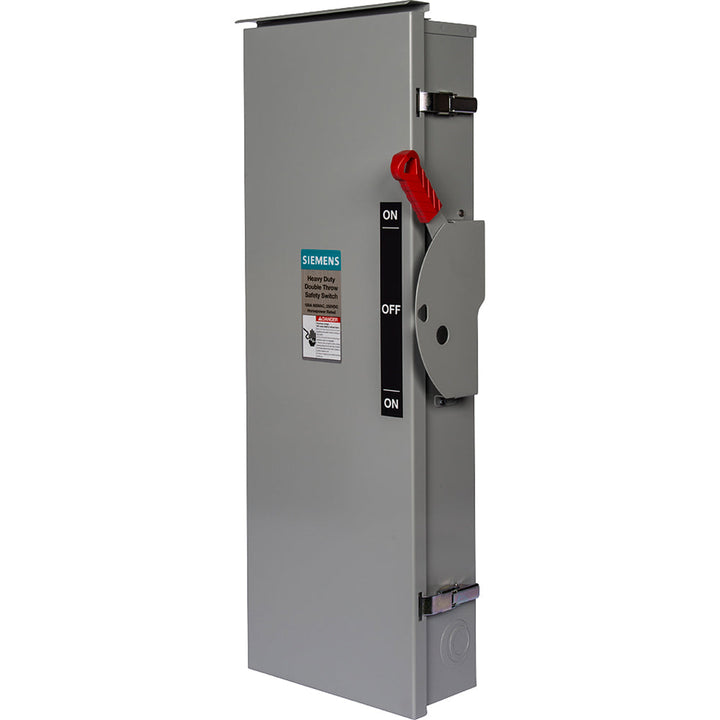

Siemens DTNF366R is a heavy-duty, non-fusible disconnect switch designed for the safe isolation of three-phase electrical circuits in industrial power distribution. It is rated for 600A at 600V AC with an interrupting capacity of 200kA, housed within a robust, NEMA 3R-rated enclosure measuring 72.835" x 44.882" x 18.898" (1850 x 1140 x 480 mm) and weighing 320.7 lb. Constructed as part of the VBII Series, this three-pole, single-configuration switch operates reliably across a temperature range of -25 to 70 °C and complies with industry standards for use in switchgear, motor control centers, and other high-capacity applications requiring a visible break and manual isolation.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, Manual Operation
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Dimensions: 72.835" H x 44.882" W x 18.898" D (1850 x 1140 x 480 mm)
  • Standards: NEMA 3R Enclosure Rating
  • Applications: Main Disconnect for Switchgear, Motor Control Centers, Industrial Power Distribution
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Poles: 3
  • Wire: 3
  • Fuse Class: R (Compatible)
  • Compatible Frames: MAP
  • Weight: 320.7 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643454392
  • GTIN: 00783643454392
