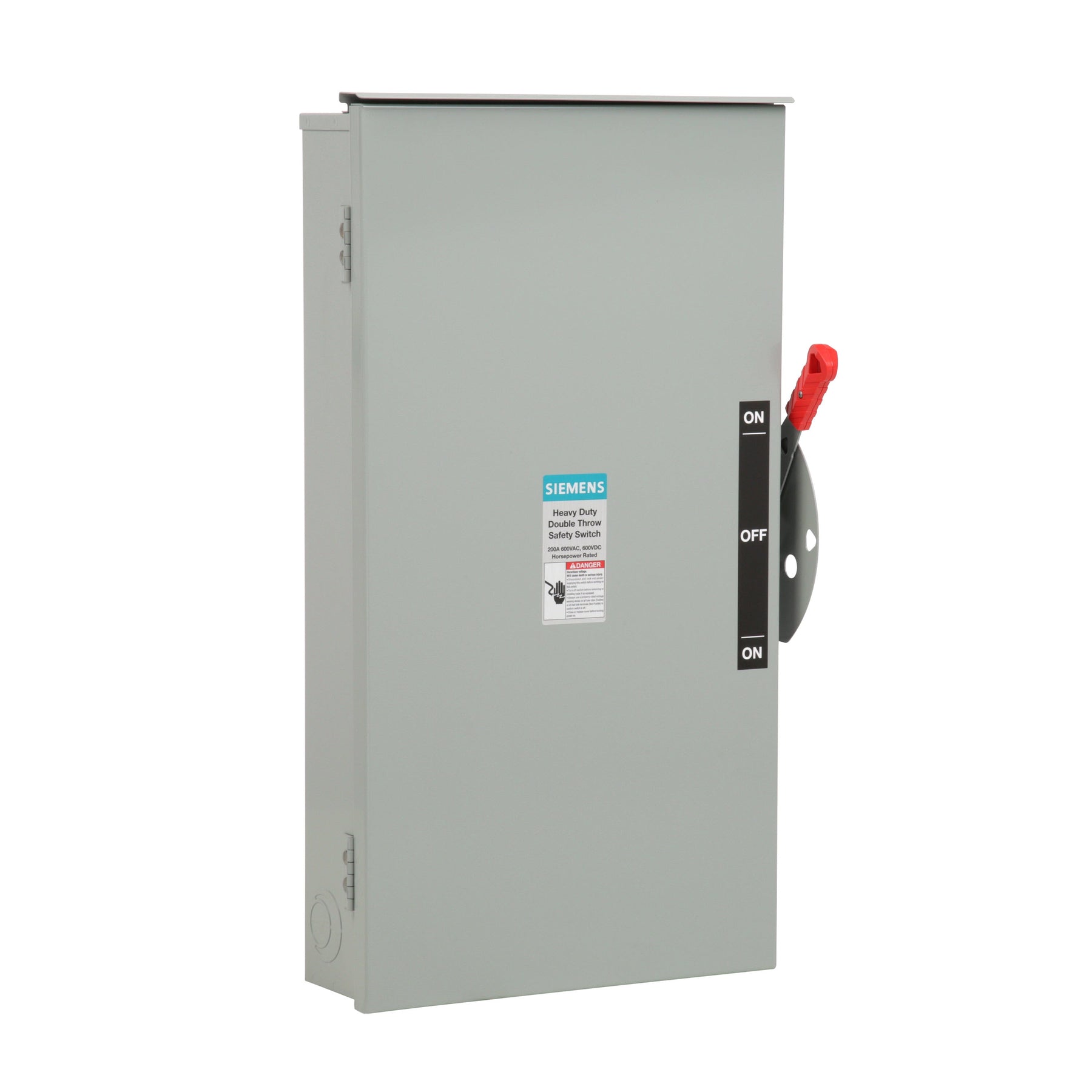

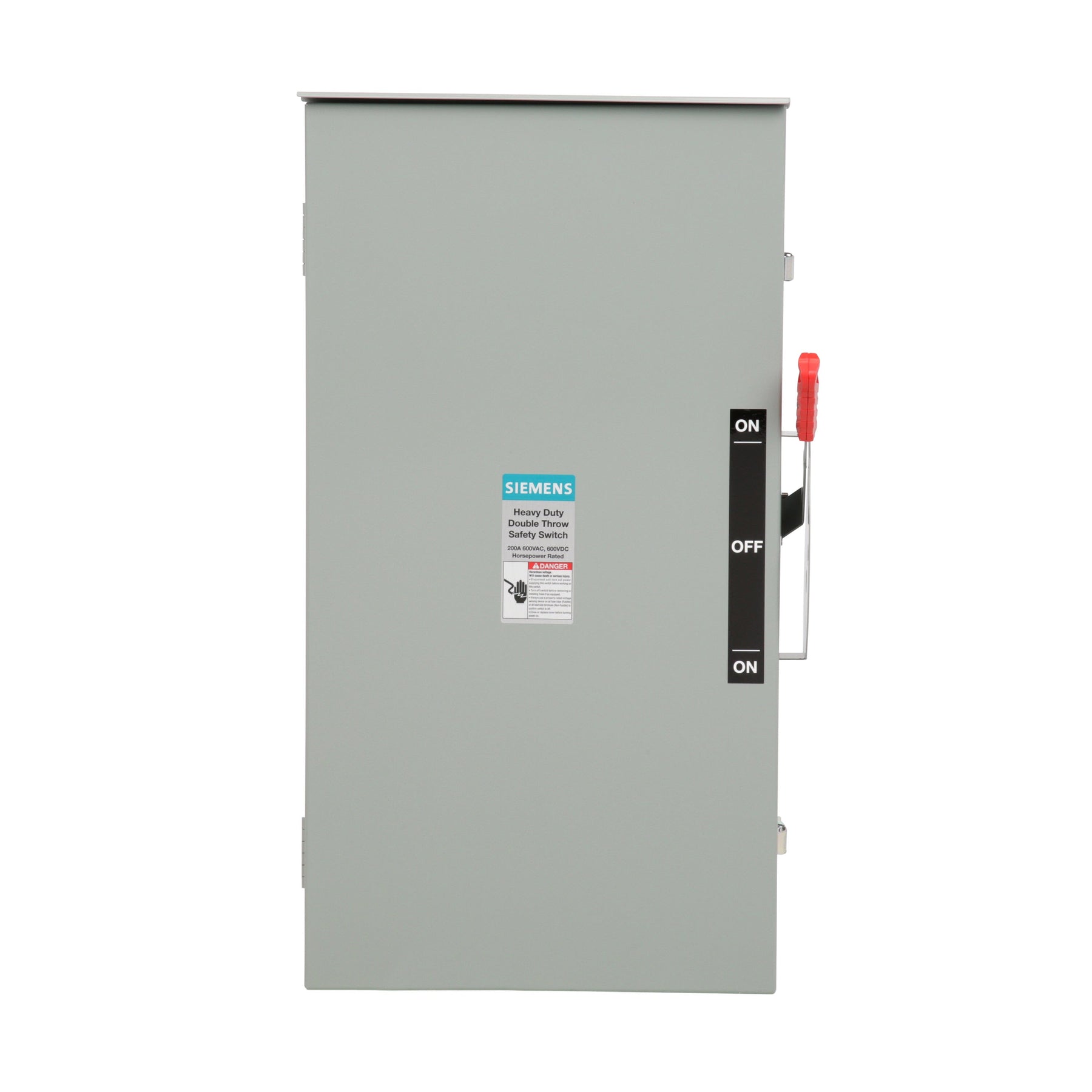

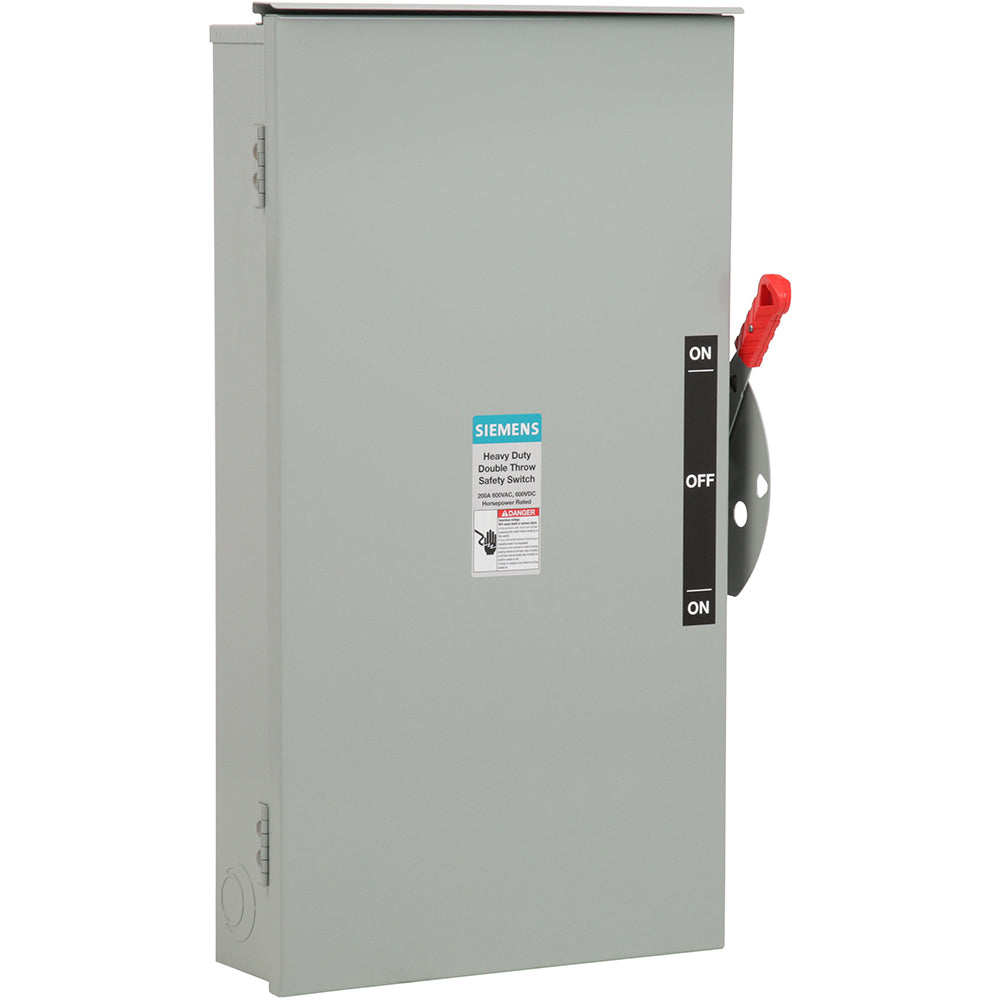

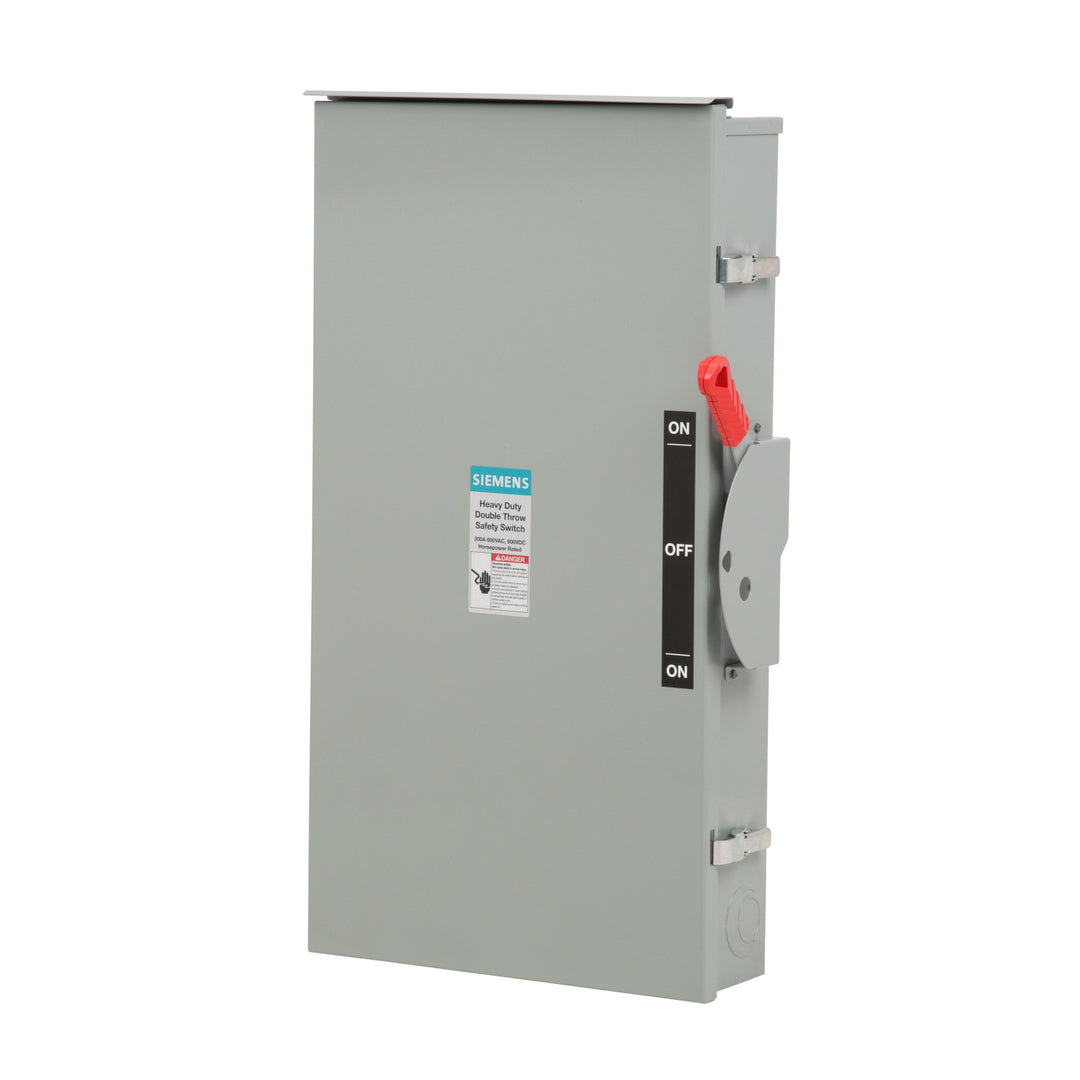

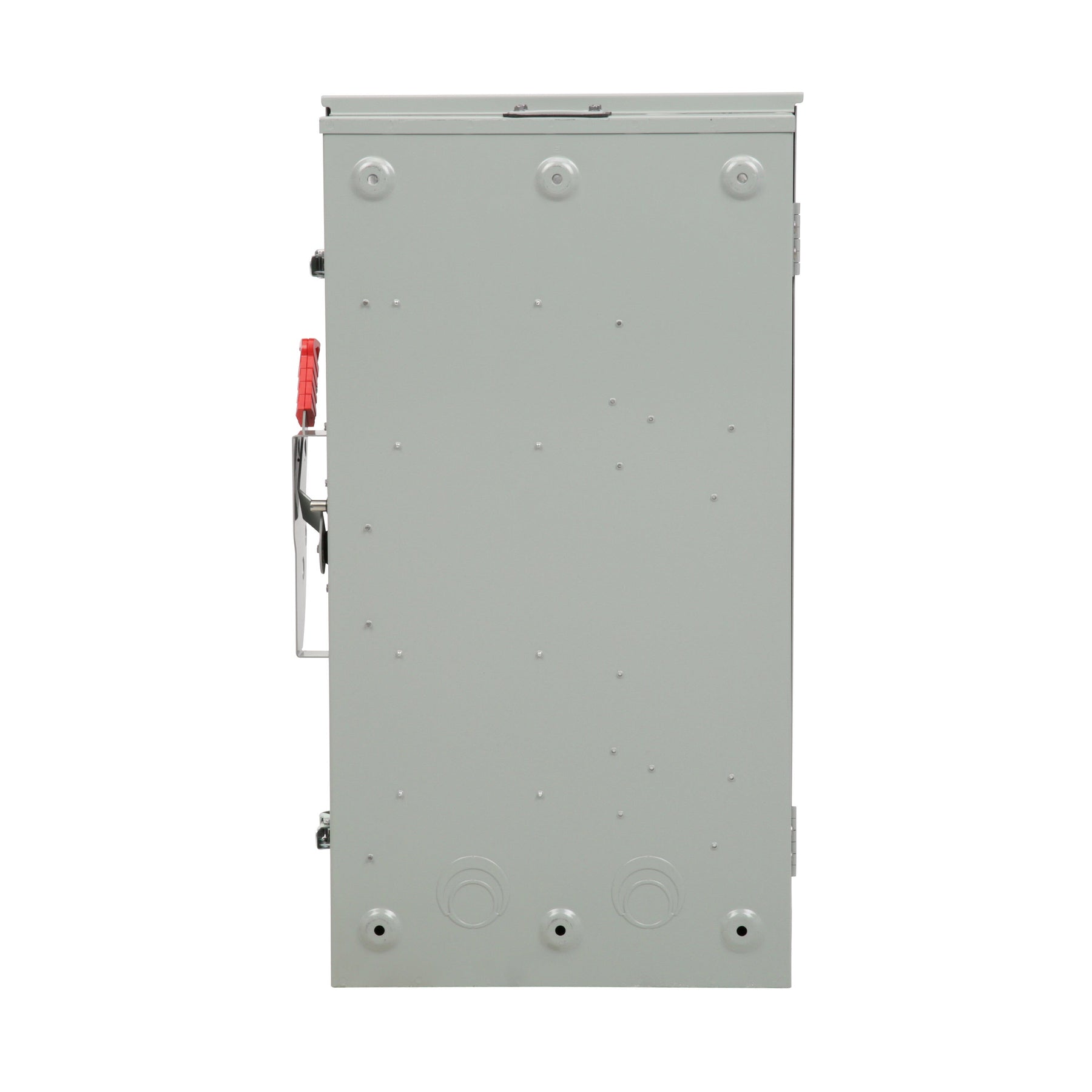

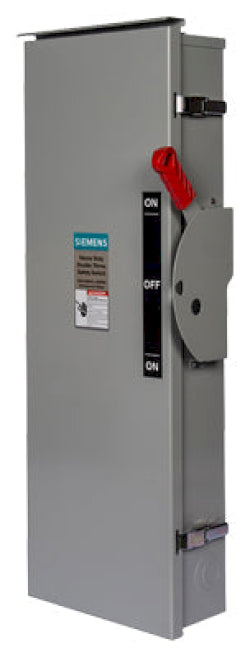

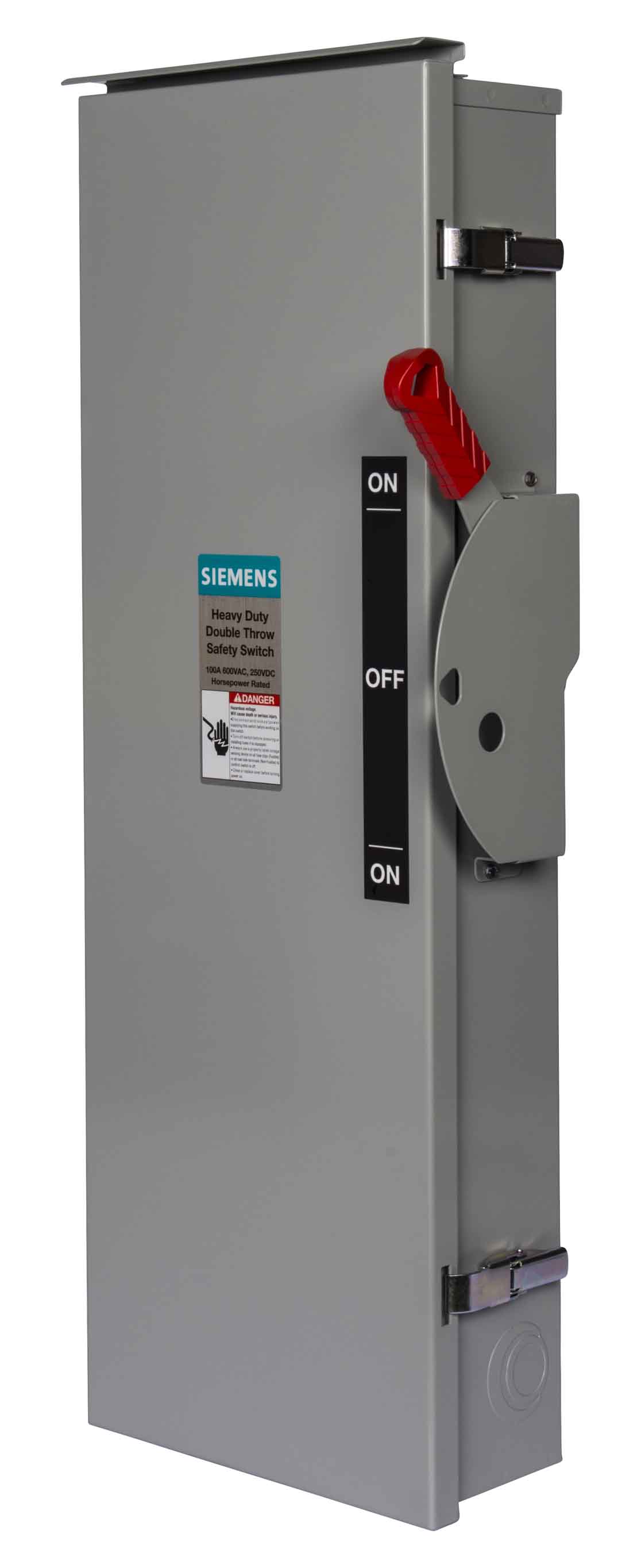

Siemens DTNF364R is a heavy-duty industrial disconnect switch designed for the safe isolation and control of three-phase electrical circuits. It provides reliable circuit protection with a 600V AC voltage rating and a 200A current rating, housed within a robust NEMA 3R enclosure measuring 40.551" x 24.409" x 11.024" and weighing 76.567 lb. The switch is UL98 certified and features a non-fusible, twin/double configuration with three poles, engineered for an interrupting capacity of 200kA at 600V. This makes it suitable for demanding applications in industrial power distribution, panelboards, and motor control centers where high fault current protection is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, DTNF type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Configuration: Twin/Double
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 3R
  • Certification: UL98
  • Compatible Frames: MAP
  • Dimensions: 40.551" H x 24.409" W x 11.024" D
  • Weight: 76.567 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643454347
  • GTIN: 00783643454347
