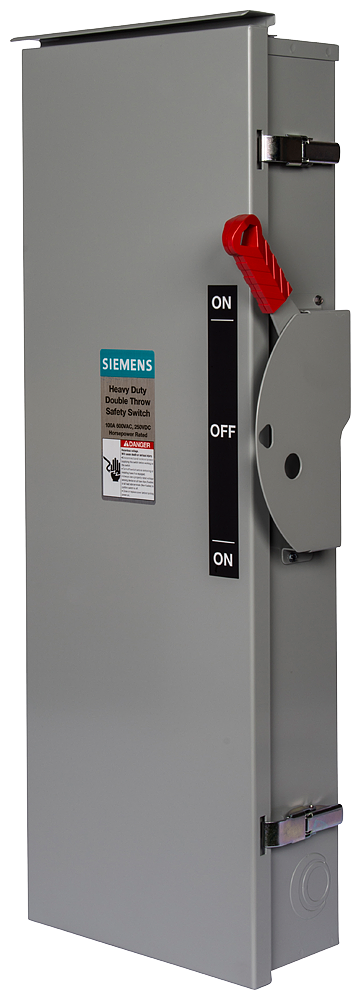

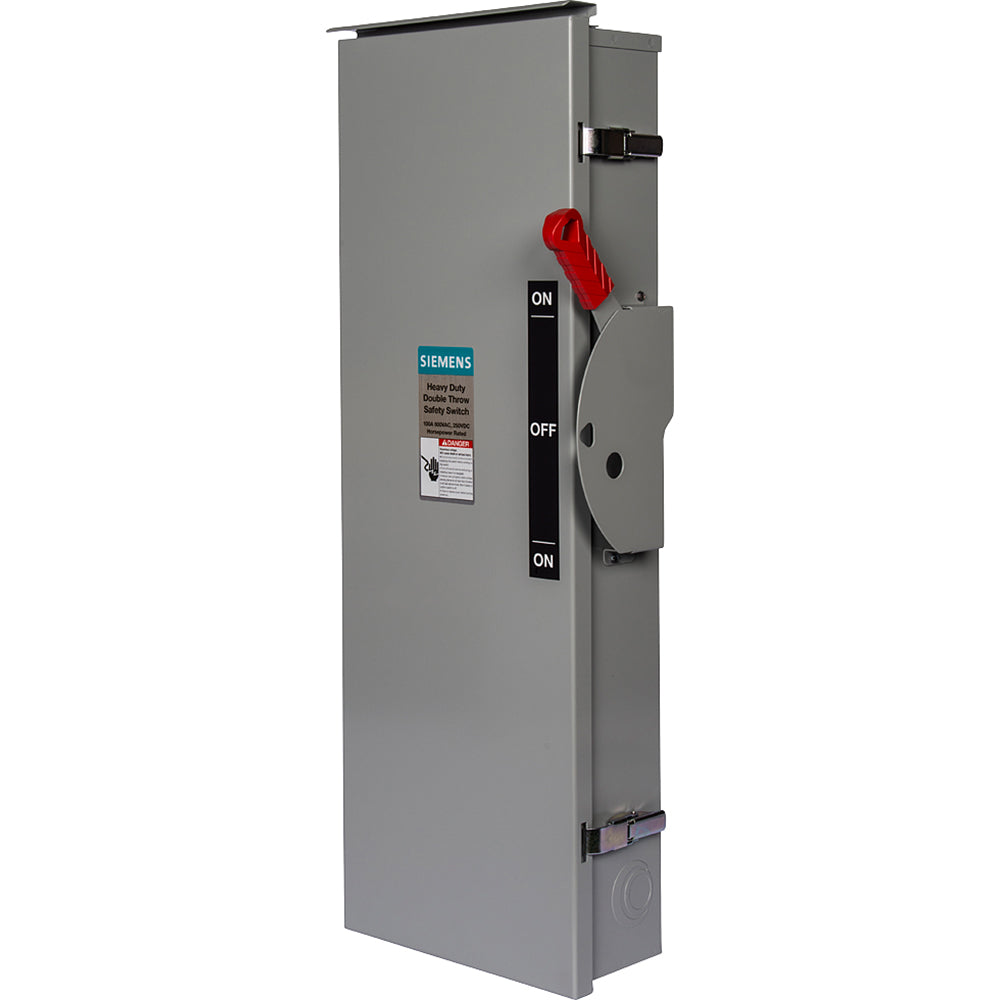

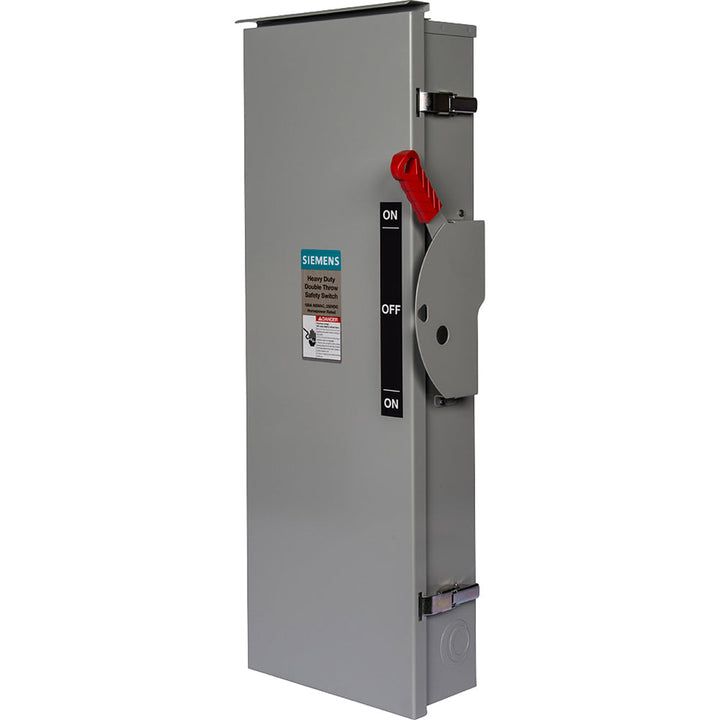

Siemens DTNF221 - Safety Disconnect Switch 30A 240V (200kA AIC NEMA 1)

Siemens DTNF221 is a safety disconnect switch designed for reliable circuit isolation and protection in industrial applications. This 30A rated switch operates at 240V AC with a 200kA interrupting capacity, providing robust short-circuit protection in demanding environments. The compact 11.5" x 25" NEMA 1 enclosure houses a 2-pole single configuration constructed with durable materials for long service life. UL98 certified for safety compliance, this VBII series switch is engineered to meet rigorous industrial standards. Typical applications include motor control centers, industrial machinery, and electrical distribution systems where safe maintenance isolation is required.

Key Features & Specifications

• Type: Safety disconnect switch, 2-pole single configuration
• Voltage Rating: 240V AC
• Current Rating: 30A
• Dimensions: 11.5 in x 25.0 in
• Standards: UL98 certified, NEMA 1 rated
• Applications: Industrial machinery, motor control centers, electrical distribution
• Switch Type: Disconnect
• Configuration: Single
• Voltage: 240V AC
• Amperage: 30A
• AIC rating: 200kA@240V
• Connection: Standard industrial terminals
• Poles: 2
• Protection: Circuit isolation and short-circuit protection
• Functions: Safety disconnect and circuit isolation
• Nema Rating: NEMA 1
• Phase: 1
• Certification: UL98
• Compatible Frames: MAP
• Family: VBII Series
• Weight: 53 lb
• Fuse Class: R
• Country of Origin: Mexico

Product Identification

• UPC: 783643454064
• GTIN: 00783643454064
