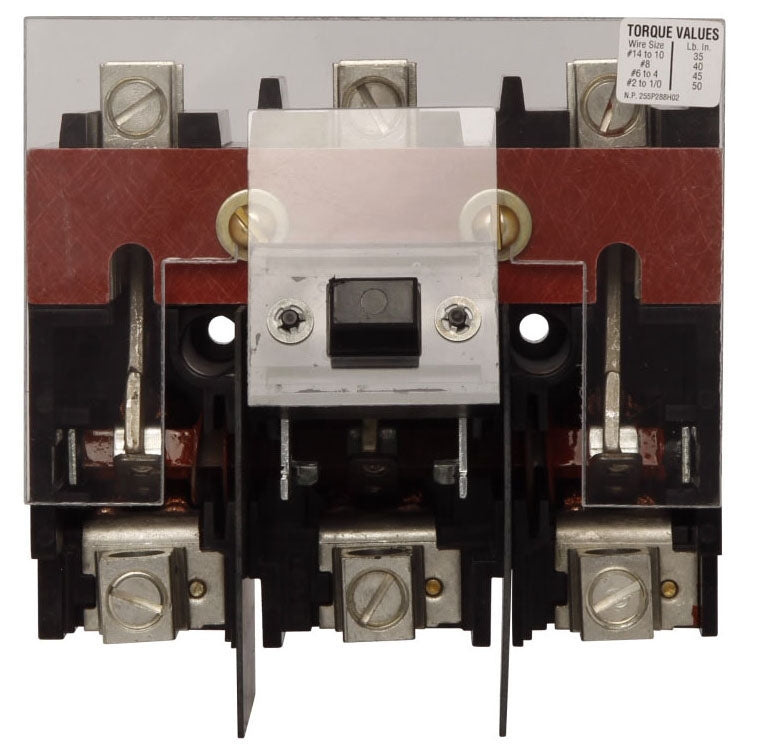

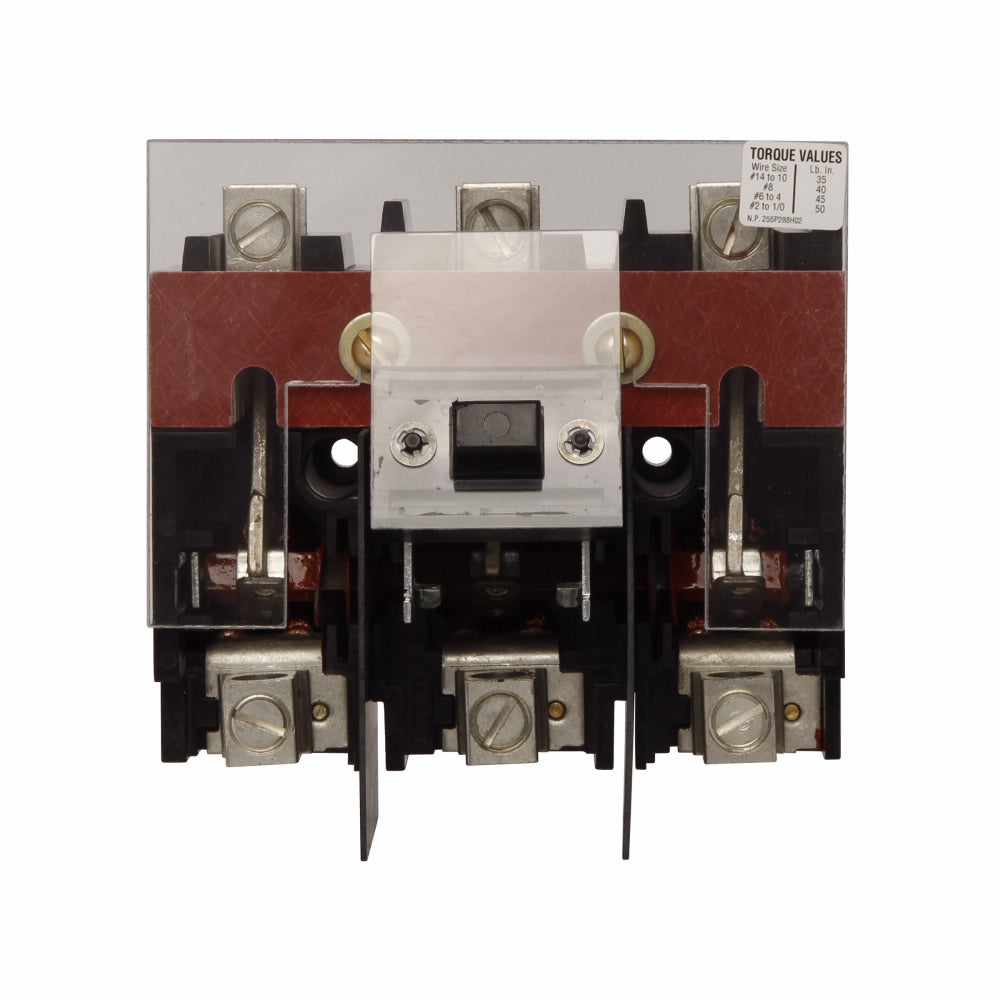

Eaton DS666R - Fusible Disconnect Switch 600A 600V (200kA AIC)

Eaton DS666R is a fusible safety disconnect switch designed for high-current circuit protection in industrial applications. It features a 600V voltage rating and 600A current capacity with a 200kA interrupting rating at 600V for robust fault protection. The switch has a rugged single-configuration design with three poles, constructed for durability in demanding environments, and weighs 15 lb. It meets UL Recognized and CSA Certified standards for safety compliance. Typical applications include motor control centers, power distribution panels, and heavy machinery requiring Class R/J fuse protection.

Key Features & Specifications

• Type: Fusible safety disconnect switch, single configuration
• Voltage Rating: 600V AC
• Current Rating: 600A
• Poles: 3
• AIC Rating: 200kA@600V
• Fuse Class: R, J
• Phase: 3
• Certification: UL Recognized, CSA Certified
• Compatible Frames: HED
• Switch Style: Fusible
• Weight: 15 lb
• Country of Origin: Mexico

Product Identification

• UPC: 786679039618
• GTIN: 00786679039618
