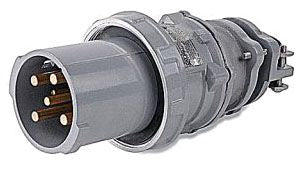

Thomas & Betts DS2404MP000 - 200A 480V Male Plug
Thomas & Betts DS2404MP000 - 200A 480V Male Plug

Thomas & Betts DS2404MP000 - 200A 480V Male Plug

Thomas & Betts
Price
Save $1,001.04
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Thomas & Betts DS2404MP000 is a MaxGard male plug designed for heavy industrial and marine applications requiring reliable power distribution in severe environments. This 200 ampere, 3 pole, 4 wire plug operates at 480V, 3 phase, 60 Hz and features waterproof construction with a cast aluminum housing for outdoor and high-abuse environments. The plug incorporates center ground contacts that make first and break last, with optional pilot/control pins available for contractors, load monitor circuits, or shunt trip functions, and standard delayed action pull and turn withdrawal provides XP rating compatibility. It is UL and CSA approved for use in mobile medical imaging trailers and heavy industrial/marine systems.

Key Features & Specifications
  • Type: Plugs Recep
  • Amperage Rating: 200 A
  • Voltage Rating: 480V AC
  • Frequency: 60 Hz
  • Number of Poles: 3
  • Number of Wires: 4
  • Material: Cast aluminum, epoxy powder coated, copper free
  • Pin and Sleeve Material: CDA 360 and marine-grade CDA 485 brass with silver plating
  • Temperature Range: -40 to 130 degrees C
  • Certifications: UL, CSA approved
  • Interior Components: Neoprene O-ring
  • Load Breaking: Yes
  • Application: Mobile medical imaging trailers and heavy industrial/marine systems
  • Weight: 5.19 lb


Product Identification
  • UPC: 708917159827
