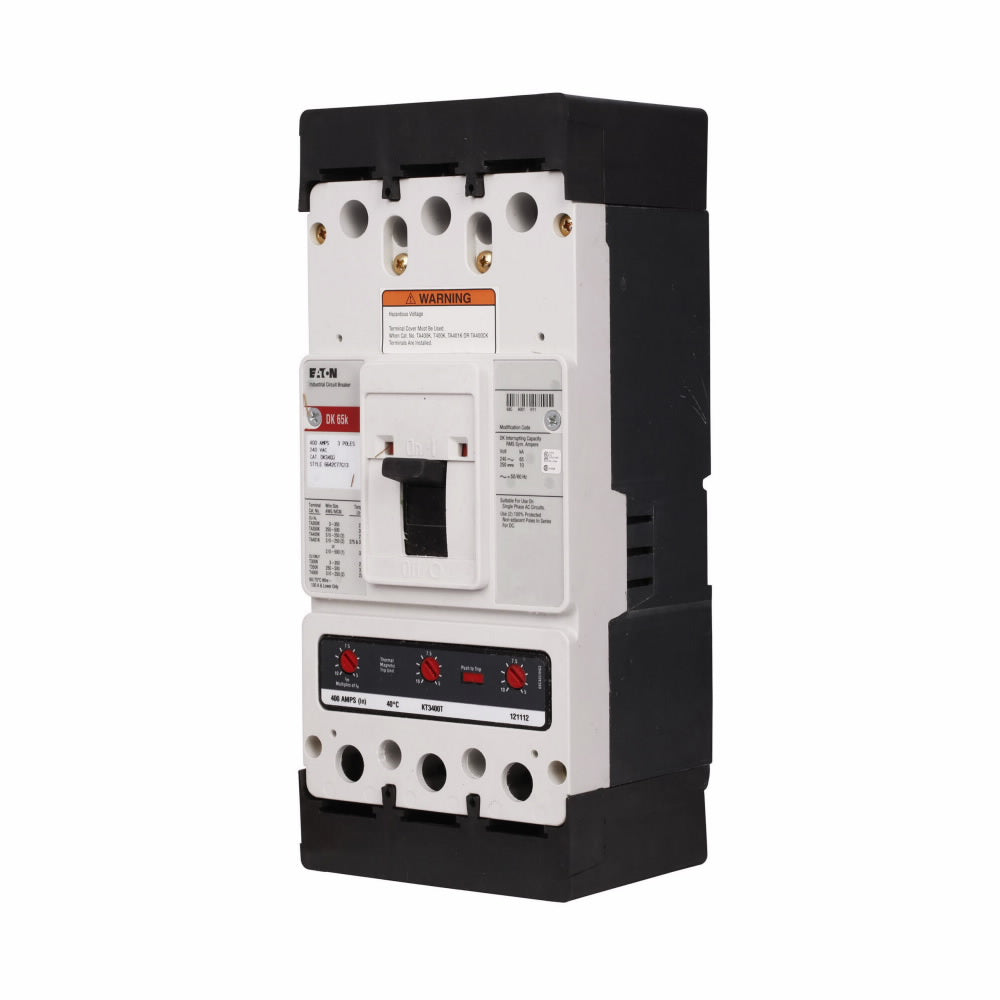

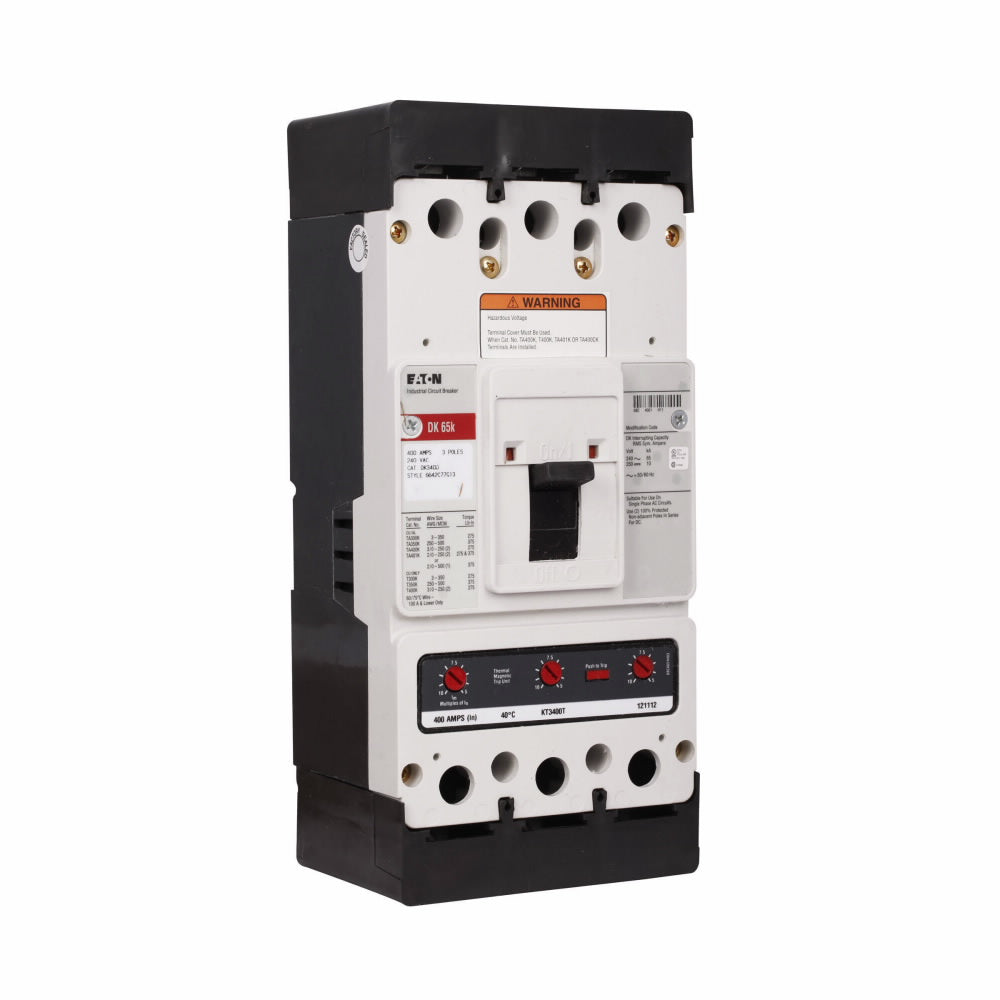

Cutler Hammer DK3250 - Molded Case Circuit Breaker 250A 3P (65kA AIC)
Cutler Hammer DK3250 - Molded Case Circuit Breaker 250A 3P (65kA AIC)
Cutler Hammer DK3250 - Molded Case Circuit Breaker 250A 3P (65kA AIC)
Cutler Hammer DK3250 - Molded Case Circuit Breaker 250A 3P (65kA AIC)

Cutler Hammer DK3250 - Molded Case Circuit Breaker 250A 3P (65kA AIC)

Cutler Hammer
Price
Save $3,831.72
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Cutler Hammer DK3250 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 250A current rating and a 240V AC voltage rating, housed within a compact K-frame measuring 4.1" x 5.5" x 5.5" (L/D x H x W) and weighing 11.5 lb. The breaker is UL Listed and employs a thermal-magnetic trip unit with both long-time and instantaneous functions to ensure protection against overloads and short circuits. Its 65kA interrupting rating at 240V and feed-thru connection make it suitable for main feeder and branch circuit protection in industrial panels and switchboards, operating reliably in ambient temperatures from -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Series C, DK Type
  • Voltage Rating: 240V AC
  • Current Rating: 250A
  • Dimensions: 4.1 in (Length/Depth) x 5.5 in (Height) x 5.5 in (Width)
  • Standards: UL Listed
  • Applications: Industrial Power Distribution, Main Feeders, Branch Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 65kA @ 240V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: K Frame
  • Trip Type: Thermal-Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 11.5 lb
  • Country of Origin: Dominican Republic


Product Identification
  • UPC: 786679044124
  • GTIN: 00786679044124
